COWLING
ZX750-P8 2003 USA CALIFORNIA CANADA

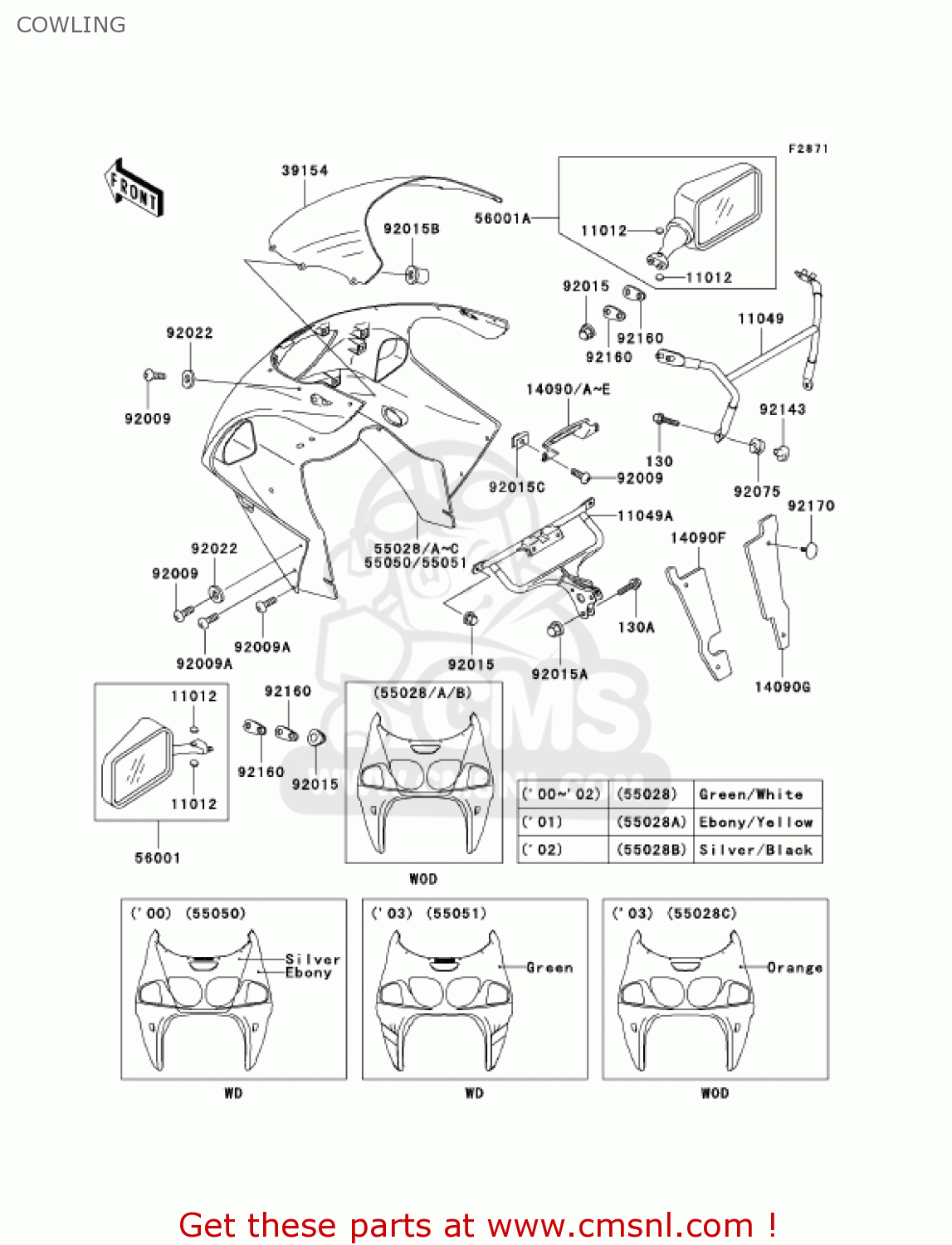

Cowling diagram ZX750-P8 2003 USA CALIFORNIA CANADA
COWLING ZX750-P8 2003 USA CALIFORNIA CANADA
×
prices are in EUR
ref
part #
description
quantity
130
130J0625
ref: 130
BOLT-FLANGED,6X25
€ 2.00
130A
130J0830
ref: 130A
BOLT-FLANGED,8X30
€ 2.50
11012
110121818
ref: 11012
CAP,MIRROR
€ 2.00
11049
110491327
ref: 11049
BRACKET,MIRROR
€ 106.50
11049A
110491328
ref: 11049A
BRACKET,UPP COWLING
€ 227.00
14090D
140901404470
ref: 14090D
COVER,POSITION LAMP,P
€ 36.00
14090E
1409014047F
ref: 14090E
POSITION LAMP COVER,LIME GREEN
€ 21.00
14090F
140901649
ref: 14090F
COVER,HEAT GUARD,LH
€ 12.00
14090G
140901650
ref: 14090G
COVER,HEAT GUARD,RH
€ 13.50
39154
391541132
ref: 39154
WINDSHIELD
€ 176.00
55028C
550281343470
ref: 55028C
COWLING,UPP,P.B.ORANG
€ 643.00
55051
5505153177F
ref: 55051
COWLING,UPP,L.GREEN
€ 983.50
56001
5600113766C
ref: 56001
MIRROR-ASSY,LH,EBONY
€ 81.50
56001A
5600113776C
ref: 56001A
MIRROR-ASSY,RH,EBONY
€ 81.50
92009
920091654
ref: 92009
SCREW
€ 0.50
92009A
920091656
ref: 92009A
SCREW
€ 2.50
92015
920151170
ref: 92015
NUT,CAP 6MM,BLACK
€ 0.50
92015A
920151174
ref: 92015A
NUT,CAP,8MM,BLACK
€ 3.00
92015B
920151757A
ref: 92015B
NUT,5MM
€ 5.00
92015C
920151798
ref: 92015C
NUT
€ 4.50
92022
920221521
ref: 92022
WASHER,NYLON,5.3X11.5
€ 2.50
92075
920751123
ref: 92075
DAMPER,RUBBER
€ 3.00
92143
921431353
ref: 92143
COLLAR
€ 5.50
92160
921601089
ref: 92160
DAMPER,MIRROR
€ 4.50
92170
921701442
ref: 92170
CLAMP
€ 2.50
