CYLINDER/PISTON(S)

ZX750-P8 2003 USA CALIFORNIA CANADA

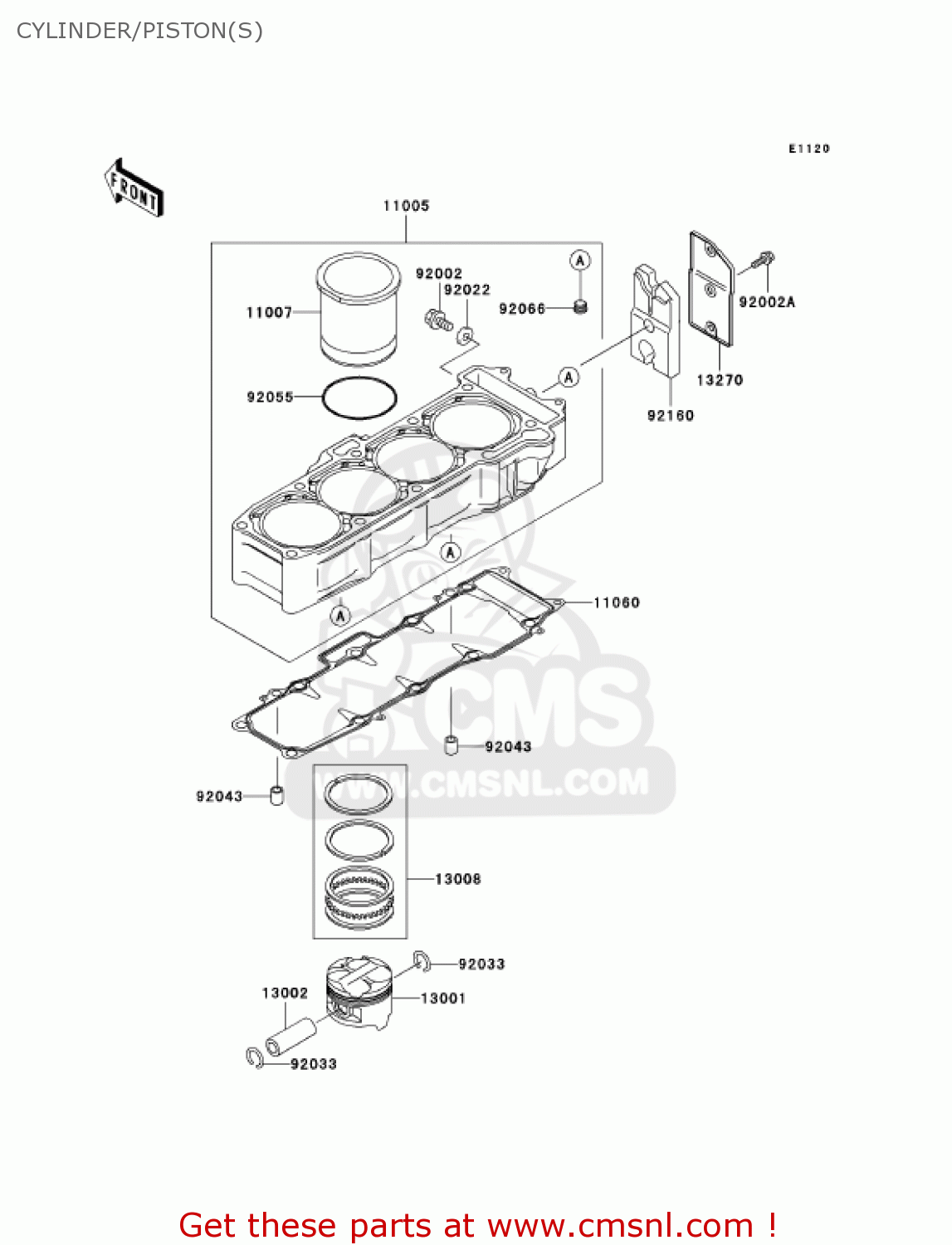

Cylinder/piston(s) diagram ZX750-P8 2003 USA CALIFORNIA CANADA

prices are in EUR

ref

part #

description

quantity

11005

110051837
ref: 11005

CYLINDER-ENGINE

€ 1,549.50

11007

110071139
ref: 11007

LINER-CYLINDER

€ 92.50

11060

110601705
ref: 11060

GASKET,CYLINDER BASE (NAS)

€ 36.50

13001

130011447
ref: 13001

PISTON-ENGINE,STD

€ 76.00

13002

130021086
ref: 13002

PIN-PISTON

€ 19.50

13008

130081168
ref: 13008

RING-SET-PISTON,STD

€ 59.00

13270

132701502
ref: 13270

PLATE

€ 6.50

92002

920021238
ref: 92002

BOLT,16X10

€ 5.50

92002A

920021604
ref: 92002A

BOLT

€ 3.00

92022

920221812
ref: 92022

WASHER,16XX22X1.0

€ 2.50

92033

920331099
ref: 92033

RING-SNAP,18MM

€ 0.50

92043

920431037
ref: 92043

PIN,DOWEL,10X8.2X14

€ 0.50

92055

920551526
ref: 92055

RING-O,78.9X2.0

€ 3.50

92066

920661260
ref: 92066

PLUG

€ 2.50

92160

921601813
ref: 92160

DAMPER

€ 20.00

CYLINDER/PISTON(S)

all assemblies
