TAILLIGHT(S)

ZX750-P8 2003 USA CALIFORNIA CANADA

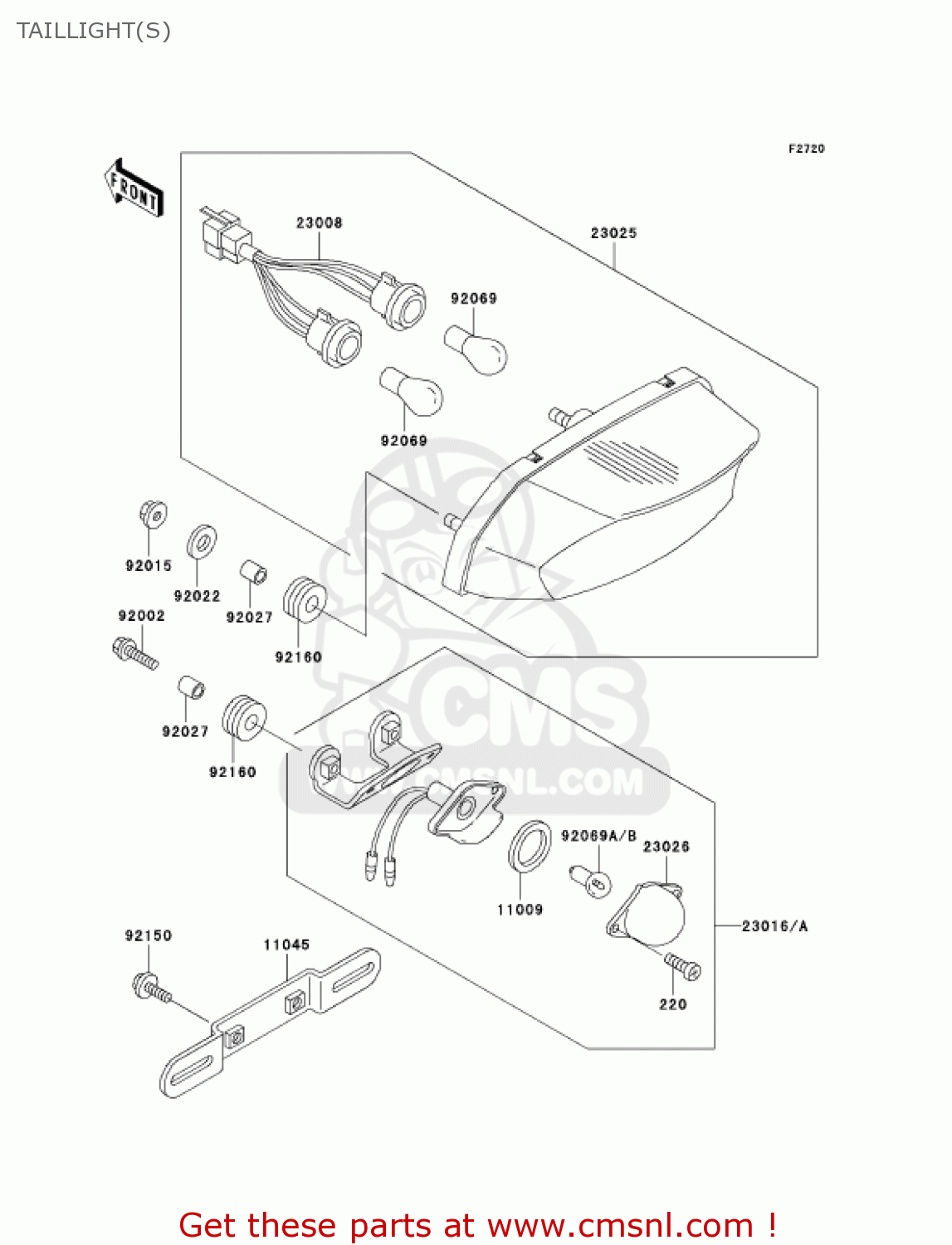

Taillight(s) diagram ZX750-P8 2003 USA CALIFORNIA CANADA

prices are in EUR

ref

part #

description

quantity

220

220B0410
ref: 220

SCREW-PAN-CROS

€ 2.00

11009

110091372
ref: 11009

GASKET,LICENSE PLATE (NAS)

€ 3.00

11045

110451387
ref: 11045

BRACKET,LICENSE

€ 11.00

23008

230081413
ref: 23008

SOCKET-ASSY,TAIL LAMP

€ 29.50

23016A

230161054
ref: 23016A

LAMP-ASSY,LICENSE PLA

€ 54.50

23025

230251246
ref: 23025

TAIL LAMP

€ 145.50

23026

230261054
ref: 23026

LENS,LICENSE PLATE LA

€ 7.00

92002

920021135
ref: 92002

BOLT,6X25

€ 2.50

92015

920151367
ref: 92015

NUT,FLANGED,6MM

€ 0.50

92022

920221557
ref: 92022

WASHER,6.5X20X1.6

€ 1.00

92027

92027162
ref: 92027

COLLAR-REAR FENDER

€ 4.50

92069

92069059
ref: 92069

BULB,12V 32/3CP

€ 5.50

92069B

920691055
ref: 92069B

BULB,12V 5W

€ 4.00

92150

921501909
ref: 92150

BOLT

€ 3.00

92160

921601162
ref: 92160

DAMPER

€ 3.00
