SWINGARM
ZX750-P8 2003 USA CALIFORNIA CANADA

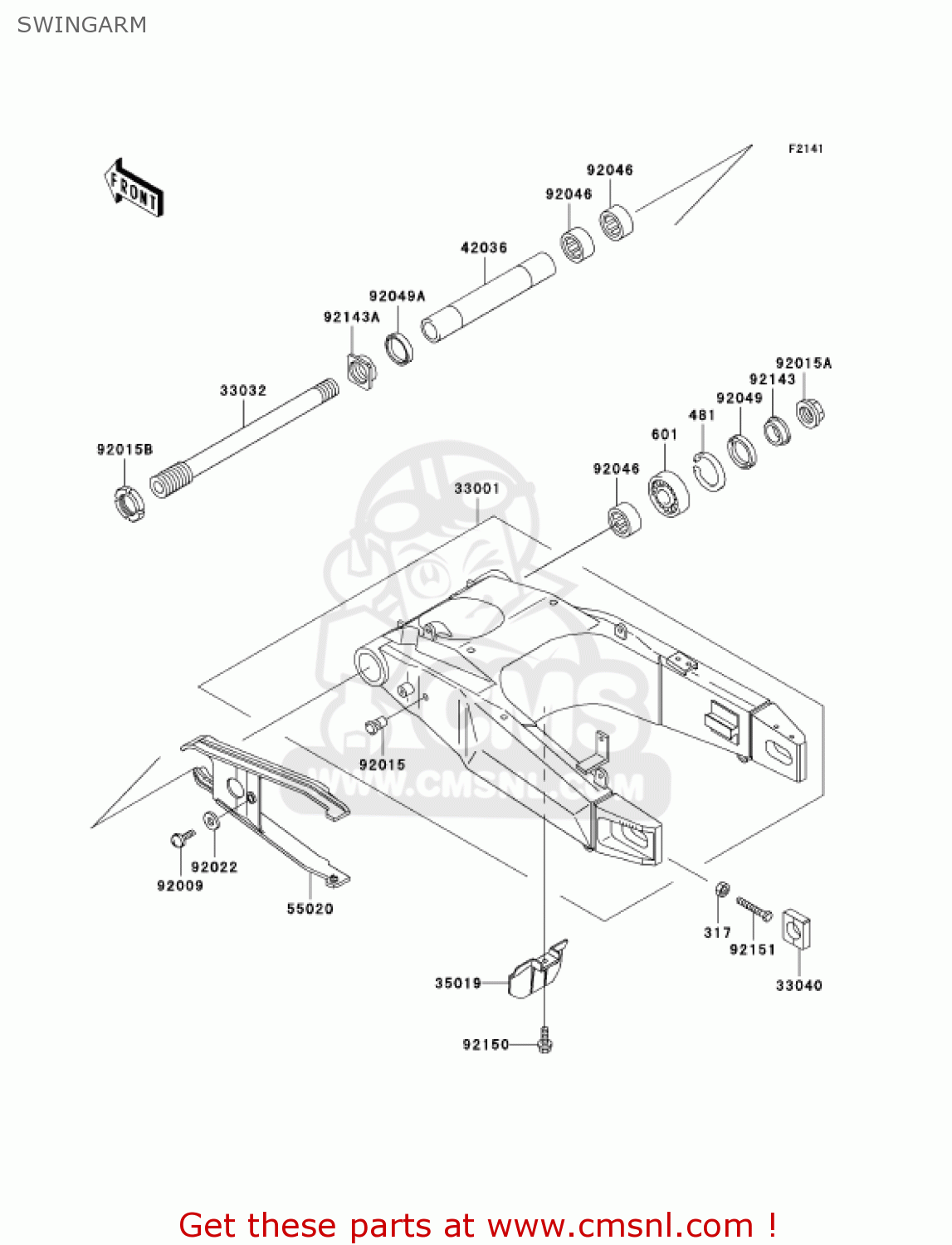

Swingarm diagram ZX750-P8 2003 USA CALIFORNIA CANADA
SWINGARM ZX750-P8 2003 USA CALIFORNIA CANADA
×
prices are in EUR
ref
part #
description
quantity
317
317G0800
ref: 317
NUT-HEX-SMALL,8MM
€ 0.50
481
481J4700
ref: 481
CIRCLIP,47MM
€ 4.00
601
601B6005U
ref: 601
BEARING-BALL,#6005U
€ 25.00
33001
330011494EZ
ref: 33001
ARM-COMP-SWING,C.GRAY
€ 1,606.00
33032
330321173
ref: 33032
SHAFT-SWING ARM
€ 104.00
33040
330401114
ref: 33040
ADJUSTER-CHAIN
€ 13.50
35019
350191333
ref: 35019
FLAP
€ 7.50
42036
420361312
ref: 42036
SLEEVE,SWING ARM,L=22
€ 72.00
55020
550201535
ref: 55020
GUARD,CHAIN
€ 44.50
92009
920091663
ref: 92009
SCREW
€ 2.50
92015
920151792
ref: 92015
NUT,POP,6MM,L=16.5
€ 3.00
92015A
920151845
ref: 92015A
NUT,FLANGED,25MM
€ 17.00
92015B
920151930
ref: 92015B
NUT,FRAME PIVOT,32MM
€ 23.00
92022
920221143
ref: 92022
WASHER,6.5X16X1
€ 2.50
92046
920461205
ref: 92046
BEARING-NEEDLE,BM3520
€ 29.00
92049
920491381
ref: 92049
SEAL-OIL,MHA 35 47 5
€ 8.50
92049A
920491419
ref: 92049A
SEAL-OIL,KC 38 45 6
€ 10.50
92143
921431481
ref: 92143
COLLAR,SWING ARM,L=12
€ 20.50
92143A
921431681
ref: 92143A
COLLAR,SWING ARM,L=15
€ 20.00
92150
921501689
ref: 92150
BOLT,FLANGED,6X14
€ 2.00
92151
921511578
ref: 92151
BOLT,8X55
€ 1.50
