ENGINE COVER(S)
ZX750-P8 2003 USA CALIFORNIA CANADA

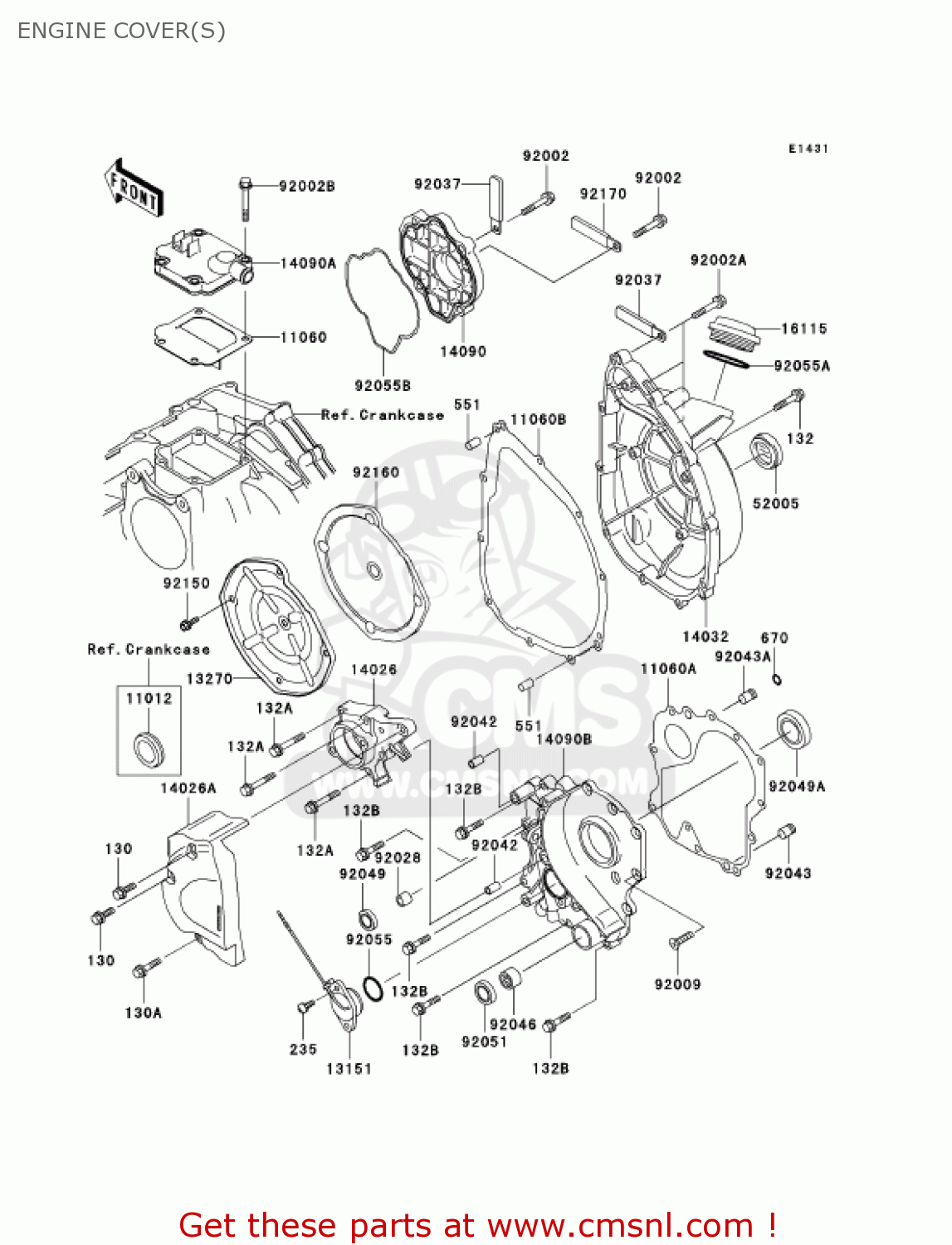

Engine cover(s) diagram ZX750-P8 2003 USA CALIFORNIA CANADA
ENGINE COVER(S) ZX750-P8 2003 USA CALIFORNIA CANADA
×
prices are in EUR
ref
part #
description
quantity
130
130J0616
ref: 130
BOLT-FLANGED,6X16
€ 1.50
130A
130J0625
ref: 130A
BOLT-FLANGED,6X25
€ 2.00
132
132J0625
ref: 132
BOLT-FLANGED-SMALL
€ 2.50
132A
132J0635
ref: 132A
BOLT-FLANGED-SMALL
€ 2.50
132B
132Y0625
ref: 132B
BOLT-FLANGED-SMALL
€ 3.50
235
235C0516
ref: 235
SCREW-PAN-WP-CROS
€ 1.00
551
551A0814
ref: 551
PIN-DOWEL,8X14
€ 0.50
11012
110121770
ref: 11012
CAP,LH
€ 9.00
11060
110601702
ref: 11060
GASKET,BREATHER COVER (NAS)
€ 14.50
11060A
110601703
ref: 11060A
GASKET,TRANSMISSION C (NAS)
€ 40.00
11060B
110601704
ref: 11060B
GASKET,CLUTCH COVER (NAS)
€ 21.00
13151
131511081
ref: 13151
SWITCH-COMP
€ 20.00
13270
132701580
ref: 13270
PLATE,CLUTCH COVER (NAS)
€ 8.50
14026
140261228
ref: 14026
COVER-CHAIN,FR
€ 80.50
14026A
140261229
ref: 14026A
COVER-CHAIN,RR
€ 95.00
14032
140321427
ref: 14032
COVER-CLUTCH
€ 185.50
14090
140901630
ref: 14090
COVER,PULSING
€ 20.00
14090A
140901631
ref: 14090A
COVER,BREATHER
€ 28.50
14090B
140901632
ref: 14090B
COVER,TRANSMISSION
€ 146.50
16115
161151064
ref: 16115
CAP-OIL FILLER
€ 5.00
52005
520051057
ref: 52005
GAUGE,OIL LEVEL
€ 17.50
92002
920021343
ref: 92002
BOLT,6X20
€ 4.00
92002A
920021534
ref: 92002A
BOLT,6X30
€ 4.00
92002B
920021582
ref: 92002B
BOLT,6X25
€ 3.00
92009
920091360
ref: 92009
SCREW,6X16
€ 2.50
92028
920281750
ref: 92028
BUSHING,8X12X10
€ 4.00
92037
920371877
ref: 92037
CLAMP
€ 3.00
92042
92042007
ref: 92042
PIN-DOWEL
€ 4.00
92043
920431263
ref: 92043
PIN,DOWEL,6.2X8X14
€ 0.50
92043A
920431456
ref: 92043A
PIN
€ 6.00
92046
920461148
ref: 92046
BEARING-NEEDLE,HK1312
€ 19.50
92049
920491017
ref: 92049
SEAL-OIL,SD-8187
€ 6.50
92049A
920491361
ref: 92049A
SEAL-OIL
€ 7.00
92051
92051005A
ref: 92051
OIL SEAL,TB13225.5
€ 5.50
92055
92055091
ref: 92055
0 RING
€ 4.00
92055A
920551295
ref: 92055A
RING-O,38MM
€ 11.00
92055B
920551543
ref: 92055B
RING-O,PULSING COVER
€ 10.50
92150
921501406
ref: 92150
BOLT
€ 2.00
92160
921601702
ref: 92160
DAMPER,CLUTCH COVER
€ 15.00
92170
921701514
ref: 92170
CLAMP
€ 2.50
670
670B1505
ref: 670
O RING,5MM
€ 1.00
