CYLINDER HEAD
ZX750-P8 2003 USA CALIFORNIA CANADA

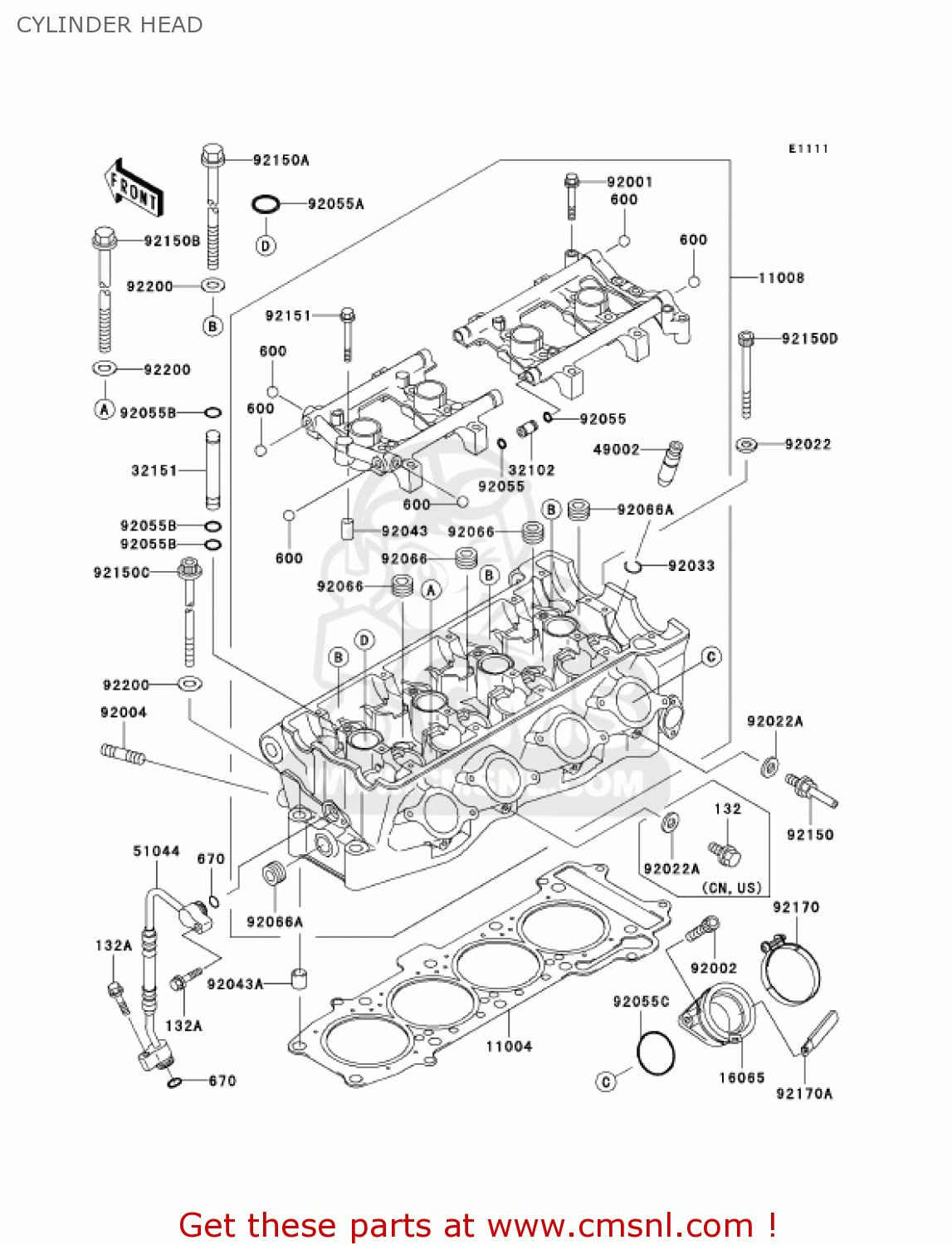

Cylinder head diagram ZX750-P8 2003 USA CALIFORNIA CANADA
CYLINDER HEAD ZX750-P8 2003 USA CALIFORNIA CANADA
×
prices are in EUR
ref
part #
description
quantity
132
132Y0610
ref: 132
[CN,US
BOLT-FLANGED-SMALL
€ 2.50
132A
132Y0625
ref: 132A
BOLT-FLANGED-SMALL
€ 3.50
600
600A0800
ref: 600
BALL-STEEL,1/4
€ 0.50
670
670D2010
ref: 670
O RING,10MM
€ 1.00
11004
110041307
ref: 11004
GASKET-HEAD,T=0.65,ST (NAS)
€ 72.00
11008
110081310
ref: 11008
HEAD-COMP-CYLINDER
€ 1,965.50
16065
160651317
ref: 16065
HOLDER-CARBURETOR
€ 33.50
32102
321021928
ref: 32102
PIPE,JOINT
€ 4.00
32151
321511608
ref: 32151
PIPE
€ 8.00
49002
490021116
ref: 49002
GUIDE-VALVE
€ 23.00
51044
510441180
ref: 51044
TUBE-ASSY,OIL
€ 141.50
92001
920011105
ref: 92001
BOLT,HEX HEAD,6X38
€ 3.00
92002
920021143
ref: 92002
BOLT,6X16
€ 2.50
92004
920041186
ref: 92004
STUD,8X18
€ 3.50
92022
920221523
ref: 92022
WASHER,6.5X13X2.0
€ 1.00
92022A
92022304
ref: 92022A
WASHER,PLAIN
€ 2.50
92033
920331247
ref: 92033
RING-SNAP
€ 2.00
92043
920431263
ref: 92043
PIN,DOWEL,6.2X8X14
€ 0.50
92043A
920434009
ref: 92043A
PIN,10.1X12X14
€ 4.00
92055
920551339
ref: 92055
RING-O,5.5X1.5
€ 3.00
92055A
920551403
ref: 92055A
RING-O,25.5X2
€ 2.50
92055B
920551509
ref: 92055B
RING-O,9X1.5
€ 3.00
92055C
920551546
ref: 92055C
RING-O,1.9X40
€ 10.50
92066
920661253
ref: 92066
PLUG,PT1/2X12.5
€ 6.50
92066A
920661262
ref: 92066A
PLUG
€ 2.50
92150
921501161
ref: 92150
[CN,US
BOLT
€ 6.00
92150
921501161
ref: 92150
[CA]
BOLT
€ 6.00
92150A
921501368
ref: 92150A
BOLT,10X165
€ 13.00
92150B
921501369
ref: 92150B
BOLT,10X151
€ 12.50
92150C
921501462
ref: 92150C
BOLT,10X137
€ 14.00
92150D
921501463
ref: 92150D
BOLT,6X100
€ 6.50
92151
921511079
ref: 92151
BOLT,6X46
€ 2.50
92170
921701160
ref: 92170
CLAMP
€ 7.50
92170A
921701680
ref: 92170A
CLAMP
€ 3.00
92200
922001042
ref: 92200
WASHER,10.5X19X2.3
€ 2.50
