VALVE
ZX500C2 ZZR500 1991 AUSTRIA NR

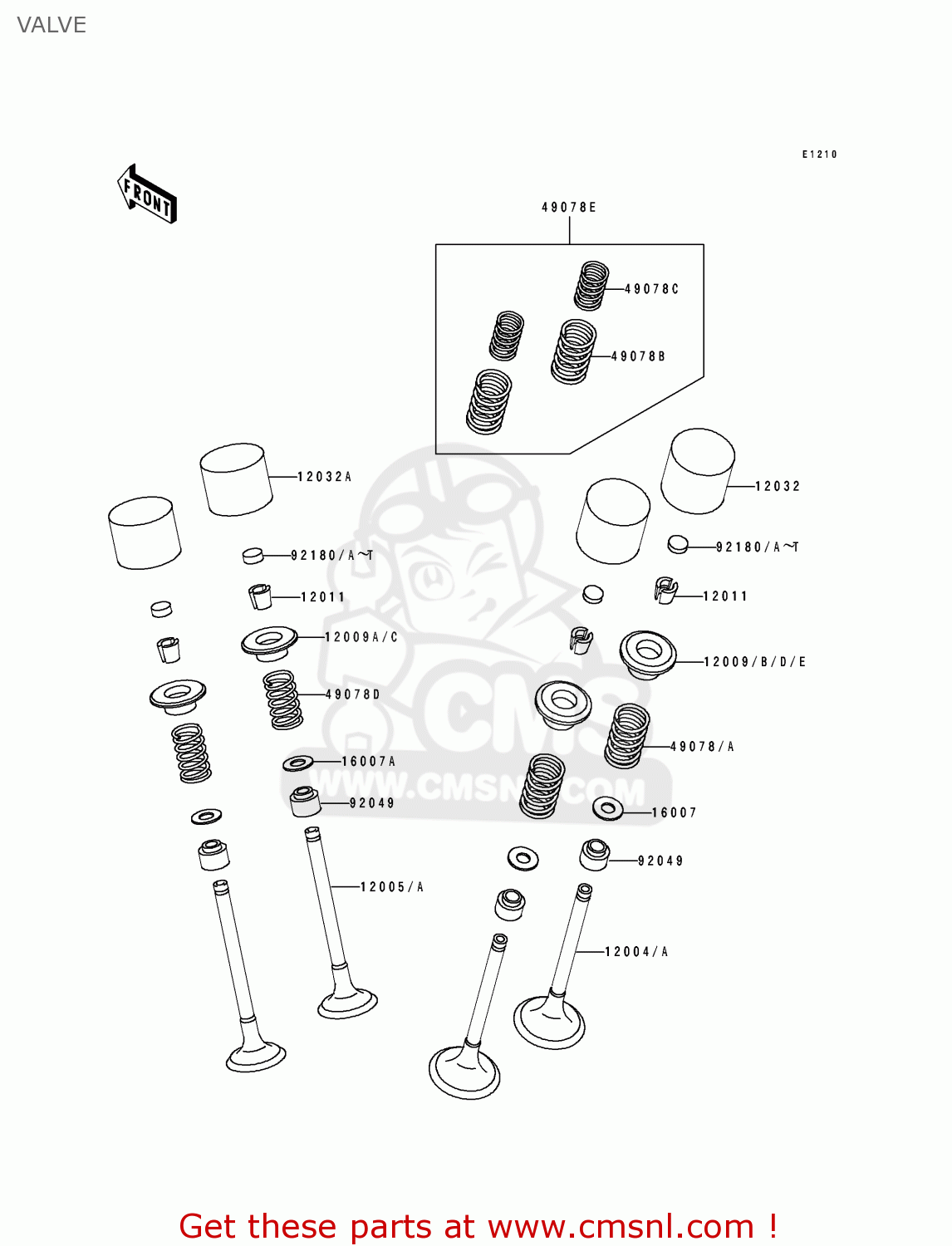

Valve diagram ZX500C2 ZZR500 1991 AUSTRIA NR
VALVE ZX500C2 ZZR500 1991 AUSTRIA NR
×
prices are in EUR
ref
part #
description
quantity
12004A
120041103
ref: 12004A
VALVE-INTAKE,INTAKE
€ 26.00
12005A
120051163
ref: 12005A
VALVE-EXHAUST,EXHAUST
€ 38.00
12009B
120091072
ref: 12009B
RETAINER-VALVE SPRING
€ 5.50
12009C
120091073
ref: 12009C
RETAINER-VALVE SPRING
€ 7.00
12009E
120091074
ref: 12009E
RETAINER-VALVE SPRING
€ 8.00
12011
120111053
ref: 12011
COLLET
€ 3.50
12032
120321052
ref: 12032
TAPPET,INTAKE
€ 24.50
12032A
120321054
ref: 12032A
TAPPET,EXHAUST
€ 23.50
16007
160071159
ref: 16007
SEAT-SPRING,INTAKE
€ 3.00
16007A
160071160
ref: 16007A
SEAT-SPRING,EXHAUST
€ 3.00
49078A
490781098
ref: 49078A
SPRING-ENGINE VALVE,I
€ 8.00
49078B
490781109
ref: 49078B
SPRING-ENGINE VALVE,I
€ 8.50
49078C
490781110
ref: 49078C
SPRING-ENGINE VALVE,E
€ 8.50
49078D
490781111
ref: 49078D
SPRING-ENGINE VALVE,E
€ 8.00
49078E
ref: 49078E
92049
920491349
ref: 92049
SEAL-OIL
€ 8.50
92180
921801014
ref: 92180
SHIM,T=2.50
€ 12.50
92180A
921801016
ref: 92180A
SHIM,T=2.55
€ 12.50
92180B
921801018
ref: 92180B
SHIM,T=2.60
€ 12.50
92180C
921801020
ref: 92180C
SHIM,T=2.65
€ 12.50
92180D
921801022
ref: 92180D
SHIM,T=2.70
€ 12.50
92180E
921801024
ref: 92180E
SHIM,T=2.75
€ 12.50
92180F
921801026
ref: 92180F
SHIM,T=2.80
€ 12.50
92180G
921801028
ref: 92180G
SHIM,T=2.85
€ 12.50
92180H
921801030
ref: 92180H
SHIM,T=2.90
€ 12.50
92180I
921801032
ref: 92180I
SHIM,T=2.95
€ 12.50
92180J
921801034
ref: 92180J
SHIM,T=3.00
€ 12.50
92180K
921801036
ref: 92180K
SHIM,T=3.05
€ 12.50
92180L
921801038
ref: 92180L
SHIM,T=3.10
€ 12.50
92180M
921801040
ref: 92180M
SHIM,T=3.15
€ 12.50
92180N
921801042
ref: 92180N
SHIM,T=3.20
€ 12.50
92180O
921801044
ref: 92180O
SHIM,T=3.25
€ 12.50
92180P
921801046
ref: 92180P
SHIM,T=3.30
€ 12.50
92180Q
921801048
ref: 92180Q
SHIM,T=3.35
€ 12.50
92180R
921801050
ref: 92180R
SHIM,T=3.40
€ 12.50
92180S
921801052
ref: 92180S
SHIM,T=3.45
€ 12.50
92180T
921801054
ref: 92180T
SHIM,T=3.50
€ 12.50
