FRONT HUB
ZX500C2 ZZR500 1991 AUSTRIA NR

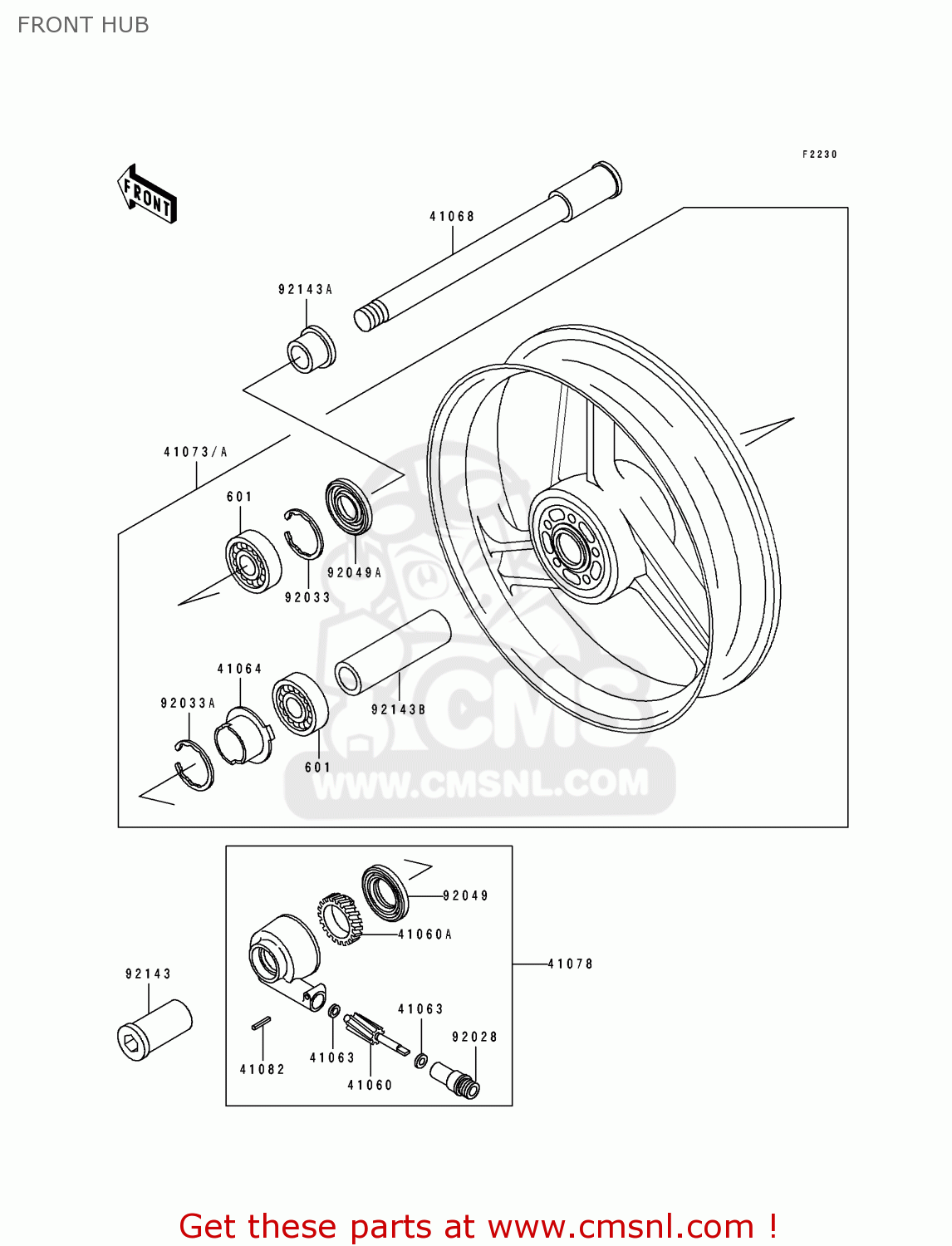

Front hub diagram ZX500C2 ZZR500 1991 AUSTRIA NR
FRONT HUB ZX500C2 ZZR500 1991 AUSTRIA NR
×
prices are in EUR
ref
part #
description
quantity
601
601B6203UU
ref: 601
BEARING-BALL,#6203UUC
€ 25.00
41060
410601123
ref: 41060
GEAR-METER SCREW,9T
€ 19.50
41060A
410601124
ref: 41060A
GEAR-METER SCREW,23T
€ 23.50
41063
41063001
ref: 41063
WASHER-THRST SPD PINI
€ 3.00
41064
410641006
ref: 41064
RECEIVER,SPEEDOMETER
€ 9.50
41068
410681255
ref: 41068
AXLE,FR
€ 52.50
41073
410731467GE
ref: 41073
WHEEL-ASSY,FR,G.GRAY
€ 684.00
41078
410781070
ref: 41078
CASE-ASSY-METER GEAR
€ 85.00
41082
41082001
ref: 41082
PIN-SPRING
€ 2.50
92028
920281066
ref: 92028
BUSHING,SPEEDOMET CAB
€ 7.50
92033
920331040
ref: 92033
RING,SNAP,40M/M
€ 4.00
92033A
920331041
ref: 92033A
CIRCLIP,42MM
€ 4.00
92049
920491057
ref: 92049
OIL SEAL,BJN30427-C3
€ 7.50
92049A
920491110
ref: 92049A
SEAL-OIL,AG1258A0
€ 6.50
92143
921431206
ref: 92143
COLLAR,FR AXLE NUT,L=
€ 18.50
92143A
921431335
ref: 92143A
COLLAR,FR AXLE,L=19.5
€ 16.00
92143B
921431392
ref: 92143B
COLLAR,FR HUB,L=87.5
€ 8.00
