FRAME FITTING

ZX500C2 ZZR500 1991 AUSTRIA NR

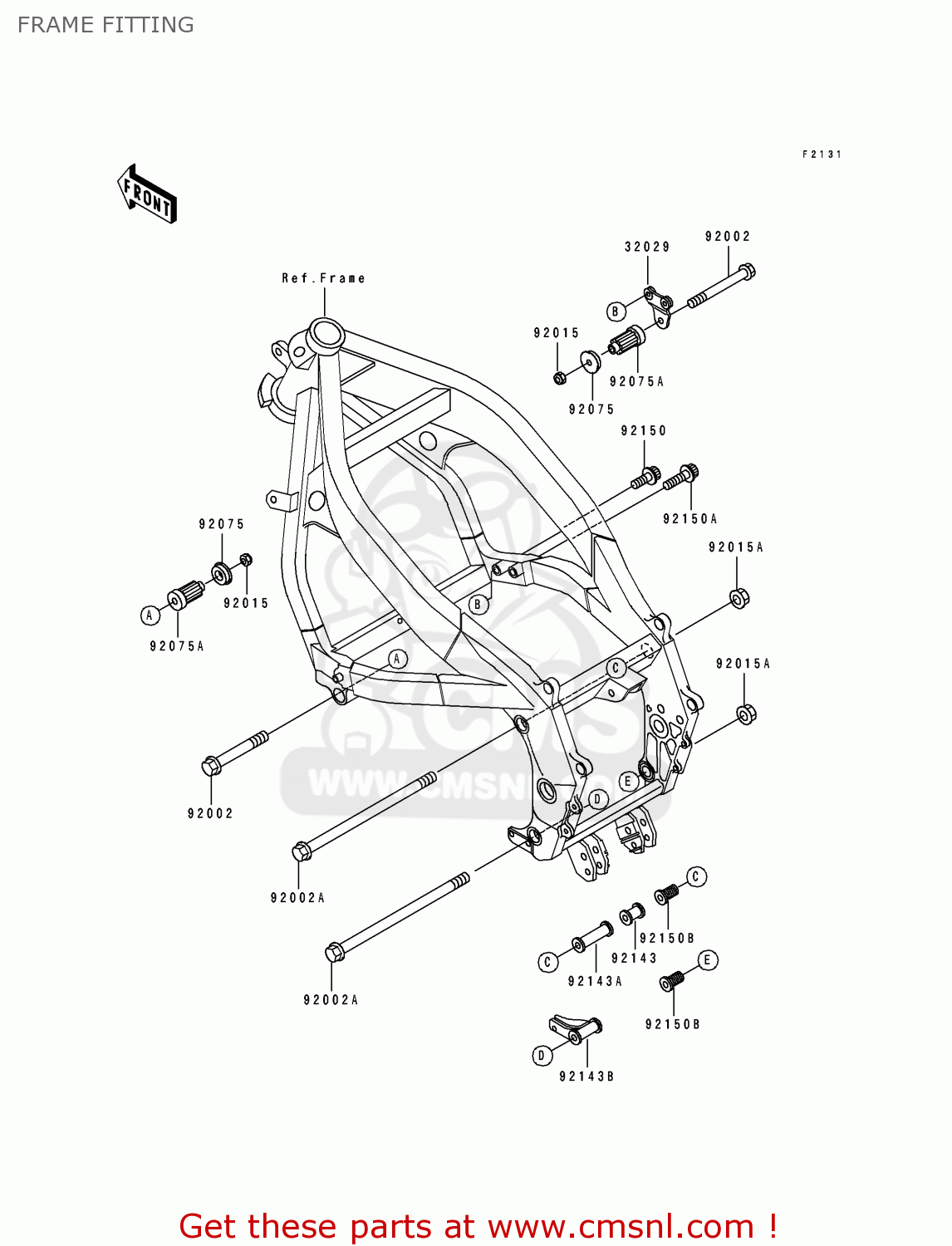

Frame fitting diagram ZX500C2 ZZR500 1991 AUSTRIA NR

prices are in EUR

ref

part #

description

quantity

32029

320291713
ref: 32029

BRACKET-ENGINE,FR,RH

€ 17.50

92002

920021298
ref: 92002

BOLT,FLANGED,10X87

€ 7.50

92002A

920021530
ref: 92002A

BOLT,FLANGED,10X280

€ 19.00

92015

920151189
ref: 92015

NUT,LOCK,10MM,BLACK

€ 4.50

92015A

920151428
ref: 92015A

NUT,FLANGED,10MM

€ 3.00

92075

920751274
ref: 92075

DAMPER,ENG MOUNT,SIDE

€ 11.00

92075A

920751739
ref: 92075A

DAMPER,ENGINE MOUNT,M

€ 32.50

92143

921431276
ref: 92143

COLLAR,L=34

€ 11.00

92143A

921431421
ref: 92143A

COLLAR,L=72.5

€ 11.50

92143B

921431439
ref: 92143B

COLLAR,ENGINE MOUNT

€ 10.00

92150

921501155
ref: 92150

BOLT,SOCKET,8X20

€ 3.50

92150A

921501156
ref: 92150A

BOLT,SOCKET,8X30

€ 4.50

92150B

921501264
ref: 92150B

BOLT,20X30

€ 13.50
