SEAT
ZX500C2 ZZR500 1991 AUSTRIA NR

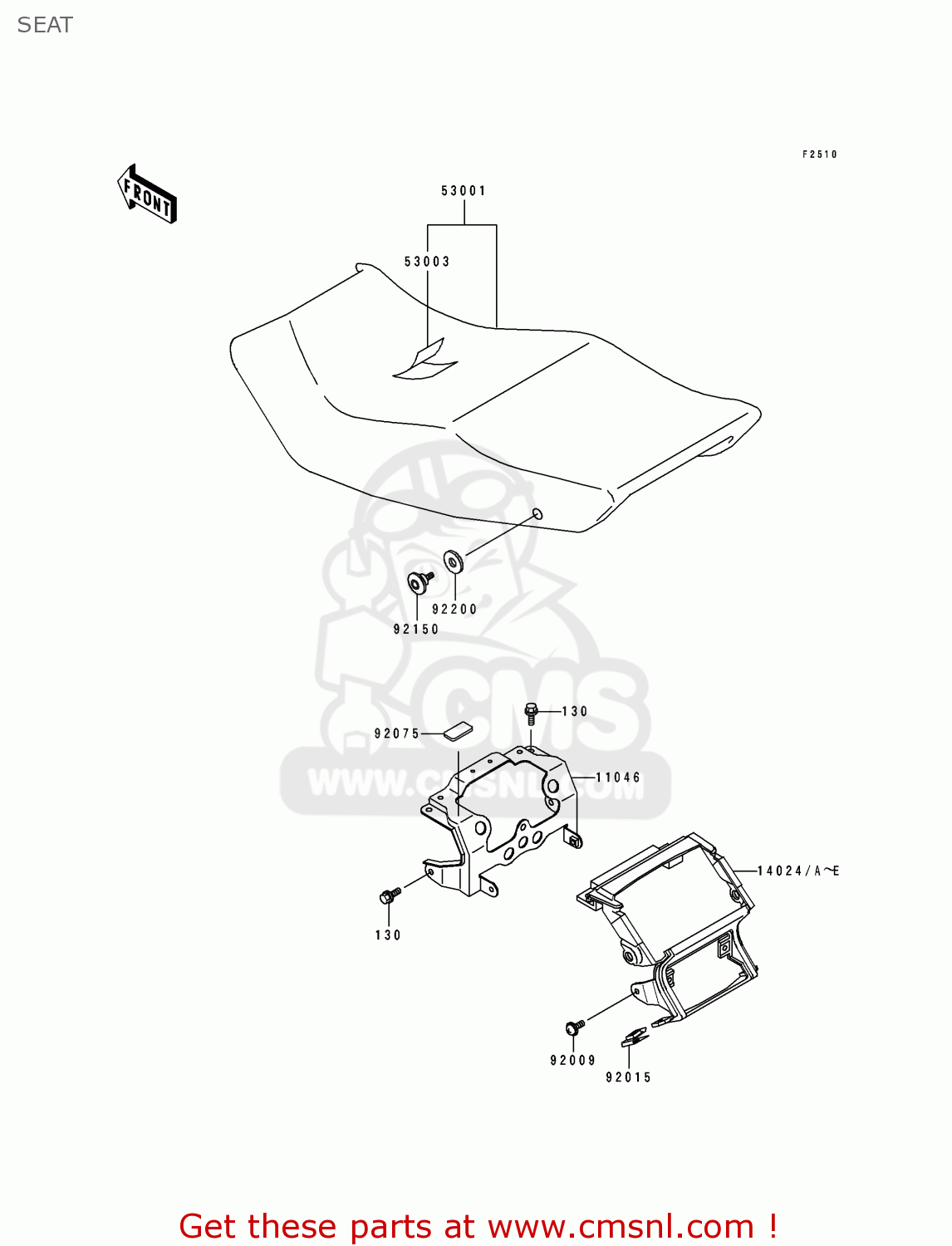

Seat diagram ZX500C2 ZZR500 1991 AUSTRIA NR
SEAT ZX500C2 ZZR500 1991 AUSTRIA NR
×
prices are in EUR
ref
part #
description
quantity
130
130J0612
ref: 130
BOLT-FLANGED,6X12,BLA
€ 1.50
11046
110461950
ref: 11046
BRACKET,TAIL
€ 33.50
14024B
140241897HC
ref: 14024B
COVER,TAIL,ROSE OPERA
€ 68.50
14024C
140241897HT
ref: 14024C
COVER,TAIL,M.O.SILVER
€ 111.50
53001
530011601MA
ref: 53001
SEAT-ASSY,DUAL,BLACK
€ 314.00
53003
530031237MA
ref: 53003
LEATHER,SEAT,BLACK
€ 72.50
92009
920091288
ref: 92009
SCREW,6X14
€ 2.00
92015
920151798
ref: 92015
NUT
€ 4.50
92075
920751883
ref: 92075
DAMPER
€ 2.50
92150
921501154
ref: 92150
BOLT,SOCKET,6MM
€ 5.00
92200
922001013
ref: 92200
WASHER,10.3X20X1
€ 3.00
