STAND

ZX500C2 ZZR500 1991 AUSTRIA NR

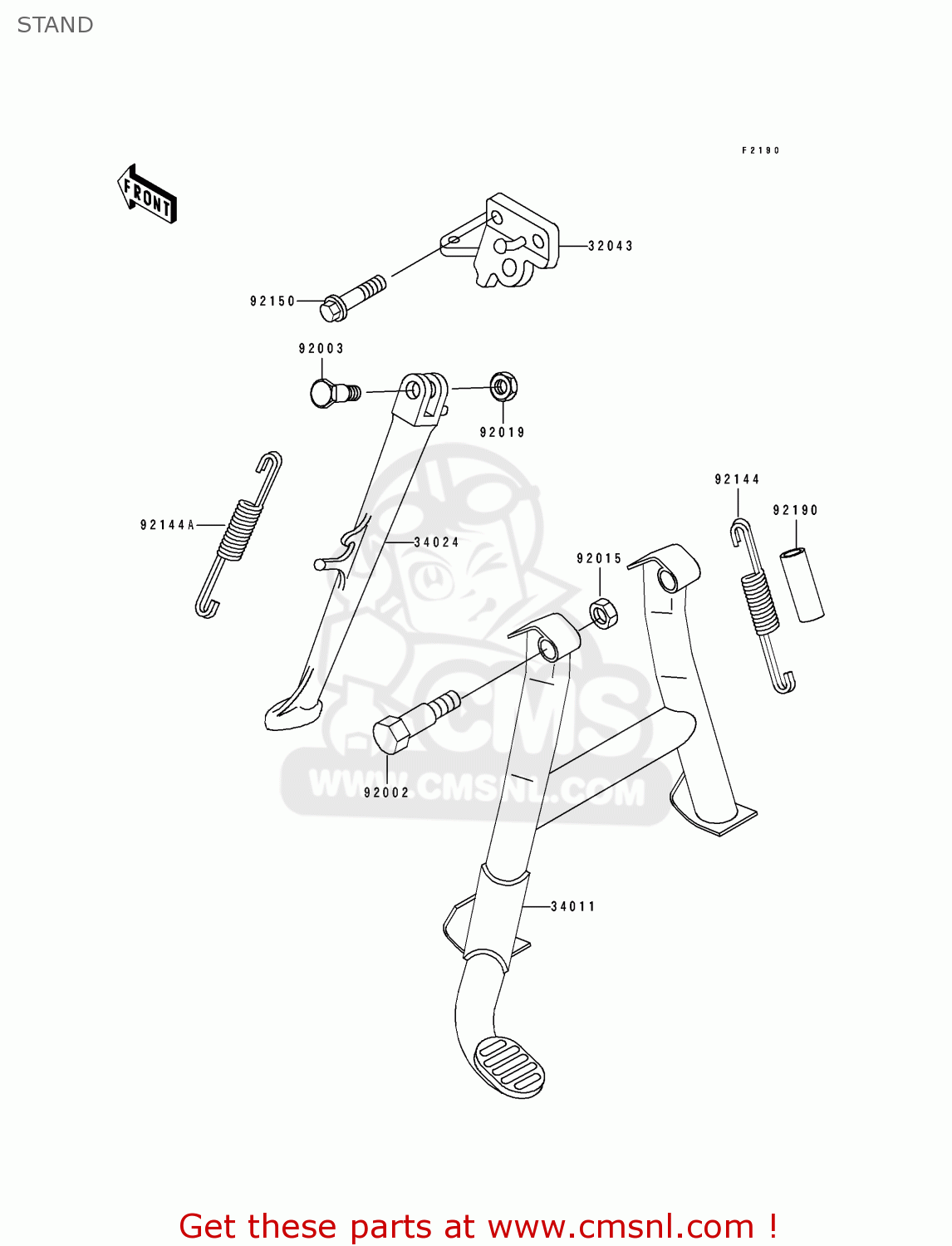

Stand diagram ZX500C2 ZZR500 1991 AUSTRIA NR

prices are in EUR

ref

part #

description

quantity

32043

320431354
ref: 32043

BRACKET-STAND,SIDE

€ 44.00

34011

340111147
ref: 34011

STAND-CENTER

€ 79.50

34024

340241269GD
ref: 34024

STAND-SIDE,G.GRAY

€ 55.50

92002

920021518
ref: 92002

BOLT,CENTER STAND

€ 7.50

92003

92003157
ref: 92003

BOLT,SIDE STAND FIT

€ 6.50

92015

920151188
ref: 92015

NUT,LOCK,10MM,BLACK

€ 4.00

92019

92019021
ref: 92019

NUT,LOCK,10M/M

€ 2.00

92144

921441098
ref: 92144

SPRING,CENTER STAND

€ 17.50

92144A

921441335
ref: 92144A

SPRING,SIDE STAND

€ 9.00

92150

921501418
ref: 92150

BOLT

€ 3.50

92190

921901181
ref: 92190

TUBE,18X21X60

€ 3.50
