FRAME
ZX500C2 ZZR500 1991 AUSTRIA NR

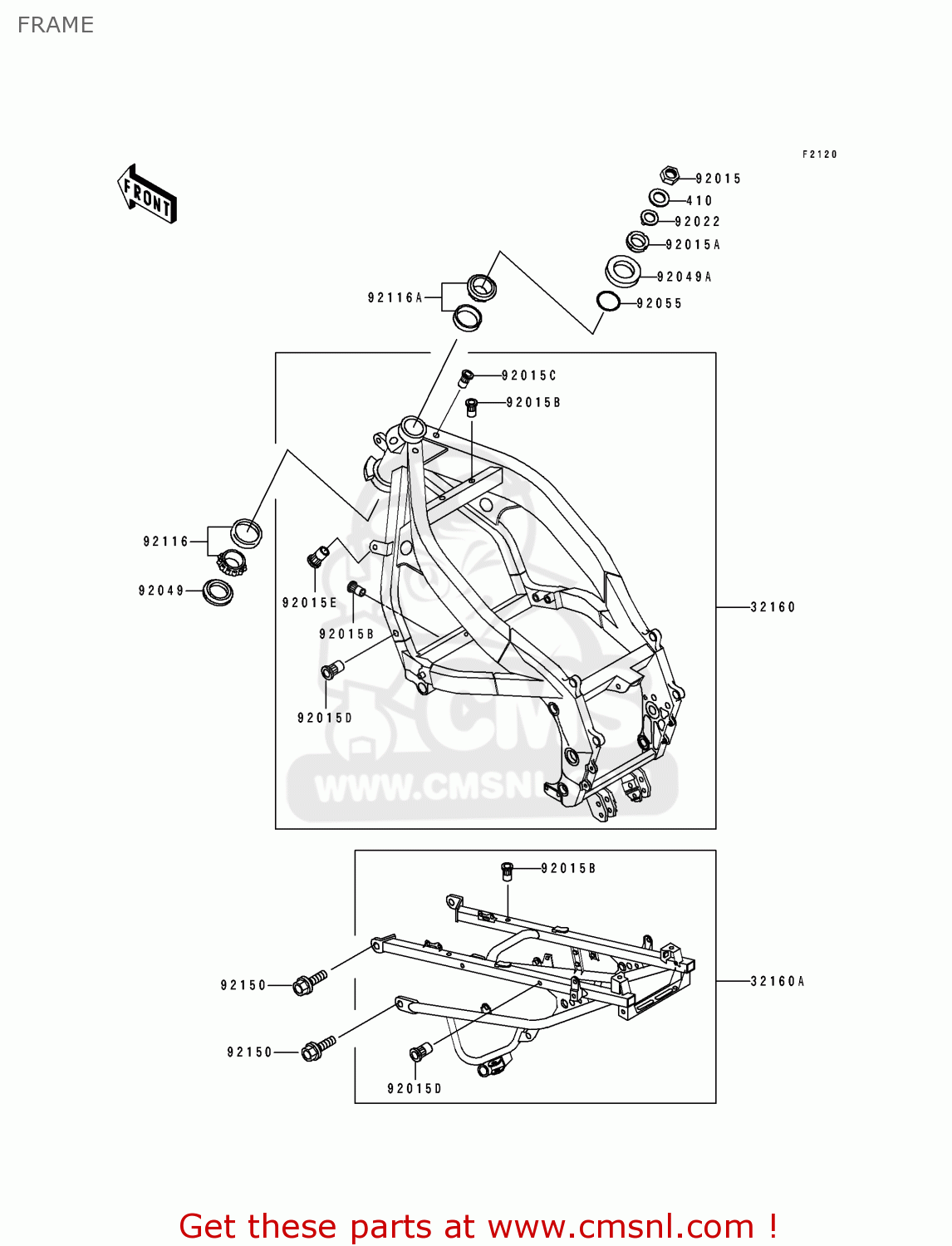

Frame diagram ZX500C2 ZZR500 1991 AUSTRIA NR
FRAME ZX500C2 ZZR500 1991 AUSTRIA NR
×
prices are in EUR
ref
part #
description
quantity
410
410F1800
ref: 410
W-PLAIN-S
€ 3.00
32160
321601118GD
ref: 32160
FRAME-COMP,FR,G.GRAY
€ 971.50
32160A
32160112010
ref: 32160A
FRAME-COMP,RR,BLACK
€ 599.50
92015
920151404
ref: 92015
NUT,18MM
€ 15.50
92015A
920151546
ref: 92015A
NUT,25MM,T=12
€ 14.50
92015B
920151791
ref: 92015B
NUT,POP,6MM
€ 3.00
92015C
920151792
ref: 92015C
NUT,POP,6MM,L=16.5
€ 3.00
92015D
920151793
ref: 92015D
NUT,POP,8MM
€ 3.00
92015E
920151794
ref: 92015E
NUT,POP,8MM
€ 3.00
92022
920221555
ref: 92022
WASHER,CLAW,18.5X30X2
€ 4.50
92049
920491162
ref: 92049
SEAL-OIL,XMHE36X52X4J
€ 7.50
92049A
920491313
ref: 92049A
SEAL-OIL,XMH33 70 6.4
€ 14.50
92055
920551459
ref: 92055
RING-O,ID=24.5
€ 3.00
92116
921161009
ref: 92116
BEARING R,HR320/28XJ
€ 41.00
92116A
921161056
ref: 92116A
BEARING-ROLLER
€ 48.50
92150
921501410
ref: 92150
BOLT
€ 2.50
