OIL PAN

ZX500C2 ZZR500 1991 AUSTRIA NR

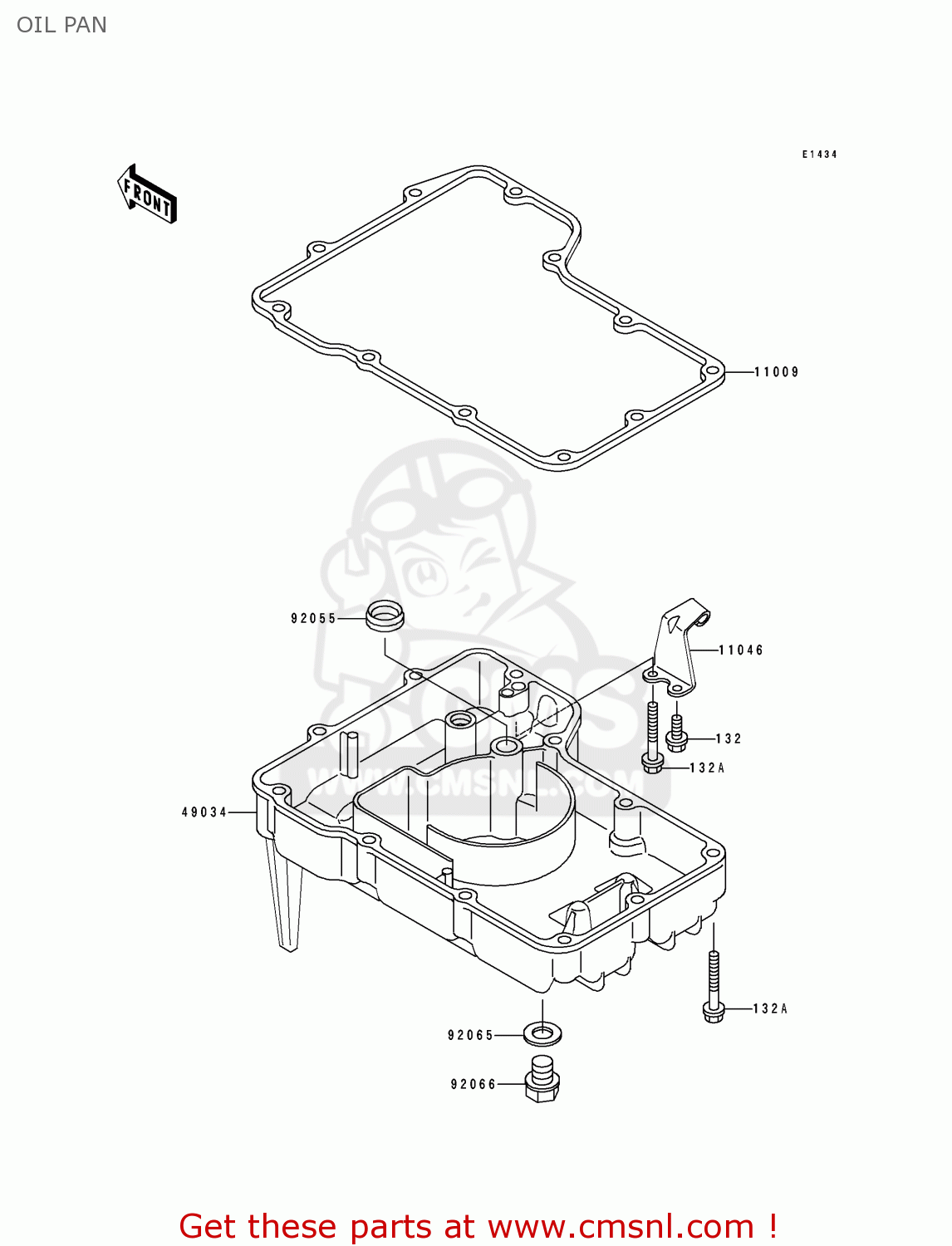

Oil pan diagram ZX500C2 ZZR500 1991 AUSTRIA NR

OIL PAN ZX500C2 ZZR500 1991 AUSTRIA NR

OIL PAN ZX500C2 ZZR500 1991 AUSTRIA NR

prices are in EUR

ref

part #

description

quantity

132

132G0612
ref: 132

BOLT-FLANGED-SMALL

€ 1.50

132A

132G0640
ref: 132A

BOLT-FLANGED-SMALL

€ 2.50

11009

110091870
ref: 11009

GASKET,OIL PAN (NAS)

€ 15.50

11046

110461912
ref: 11046

BRACKET,CLUTCH WIRE

€ 8.00

49034

490341090
ref: 49034

PAN-OIL

€ 156.00

92055

92055048
ref: 92055

RING-O,OD=18

€ 3.00

92065

92065097
ref: 92065

GASKET,DRAIN PLUG BOL (NAS)

€ 1.00

92066

920661174
ref: 92066

PLUG,OIL DRAIN,12X15

€ 4.00
