AIR FILTER
ZX500C2 ZZR500 1991 AUSTRIA NR

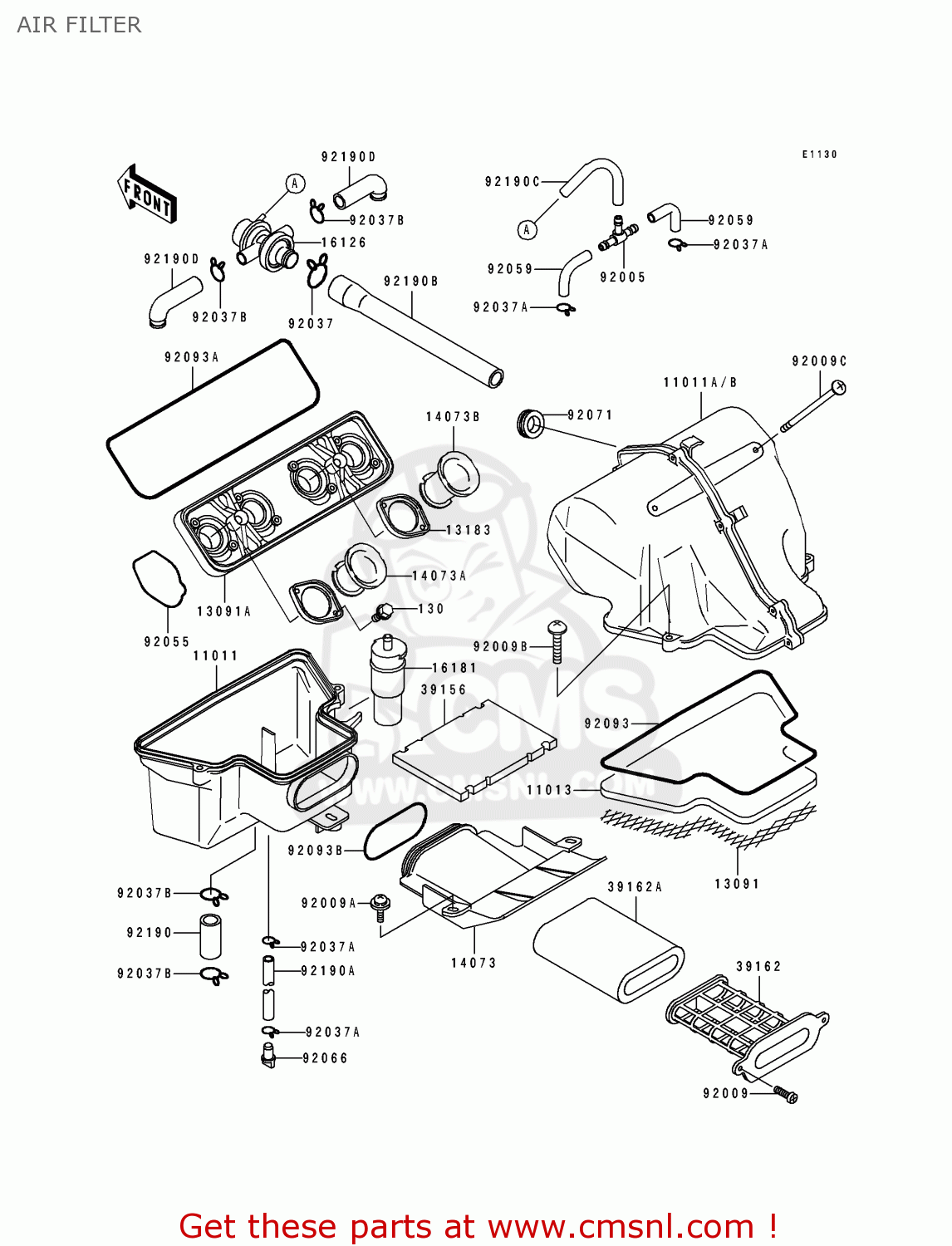

Air filter diagram ZX500C2 ZZR500 1991 AUSTRIA NR
AIR FILTER ZX500C2 ZZR500 1991 AUSTRIA NR
×
prices are in EUR
ref
part #
description
quantity
130
130G0516
ref: 130
BOLT-FLANGED
€ 0.50
11011
110111328
ref: 11011
CASE-AIR FILTER,LWR
€ 58.00
11011A
110111373
ref: 11011A
CASE-AIR FILTER,UPP
€ 109.50
11013
110131189
ref: 11013
ELEMENT-AIR FILTER
€ 9.00
13091
130911658
ref: 13091
HOLDER,ELEMENT
€ 9.50
13091A
130911695
ref: 13091A
HOLDER,AIR FILTER
€ 40.50
13183
131831604
ref: 13183
PLATE,DUCT
€ 7.50
14073
140731424
ref: 14073
DUCT,AIR INTAKE
€ 38.00
14073A
140731445
ref: 14073A
DUCT,#1
€ 17.00
14073B
140731446
ref: 14073B
DUCT,#2
€ 17.00
16181
161811058
ref: 16181
TANK-RESONATOR
€ 9.50
39162
391621068
ref: 39162
SILENCER-INTAKE
€ 15.50
39162A
391621069
ref: 39162A
SILENCER-INTAKE
€ 16.50
92009
920091040
ref: 92009
SCREW,TAPPING,4X10
€ 2.50
92009A
920091283
ref: 92009A
SCREW-PAN-WSP-CROS,6X
€ 2.50
92009B
920091589
ref: 92009B
SCREW,6X35
€ 2.50
92009C
920091622
ref: 92009C
SCREW
€ 4.50
92037A
920371712
ref: 92037A
CLAMP
€ 3.00
92037B
92037213
ref: 92037B
CLAMP, BREATHER TUBE
€ 2.50
92055
920551515
ref: 92055
RING-O,CARB-AIR CLEAN
€ 5.00
92066
920661211
ref: 92066
PLUG
€ 5.50
92093
920931301
ref: 92093
SEAL,AIR FILTER CASE
€ 6.50
92093A
920931302
ref: 92093A
SEAL,AIR FILTER HOLDE
€ 4.50
92093B
920931303
ref: 92093B
SEAL,AIR DUCT
€ 3.50
92190
921901088
ref: 92190
TUBE,BREATHER
€ 10.50
92190A
921901089
ref: 92190A
TUBE,7X10X480
€ 11.00
