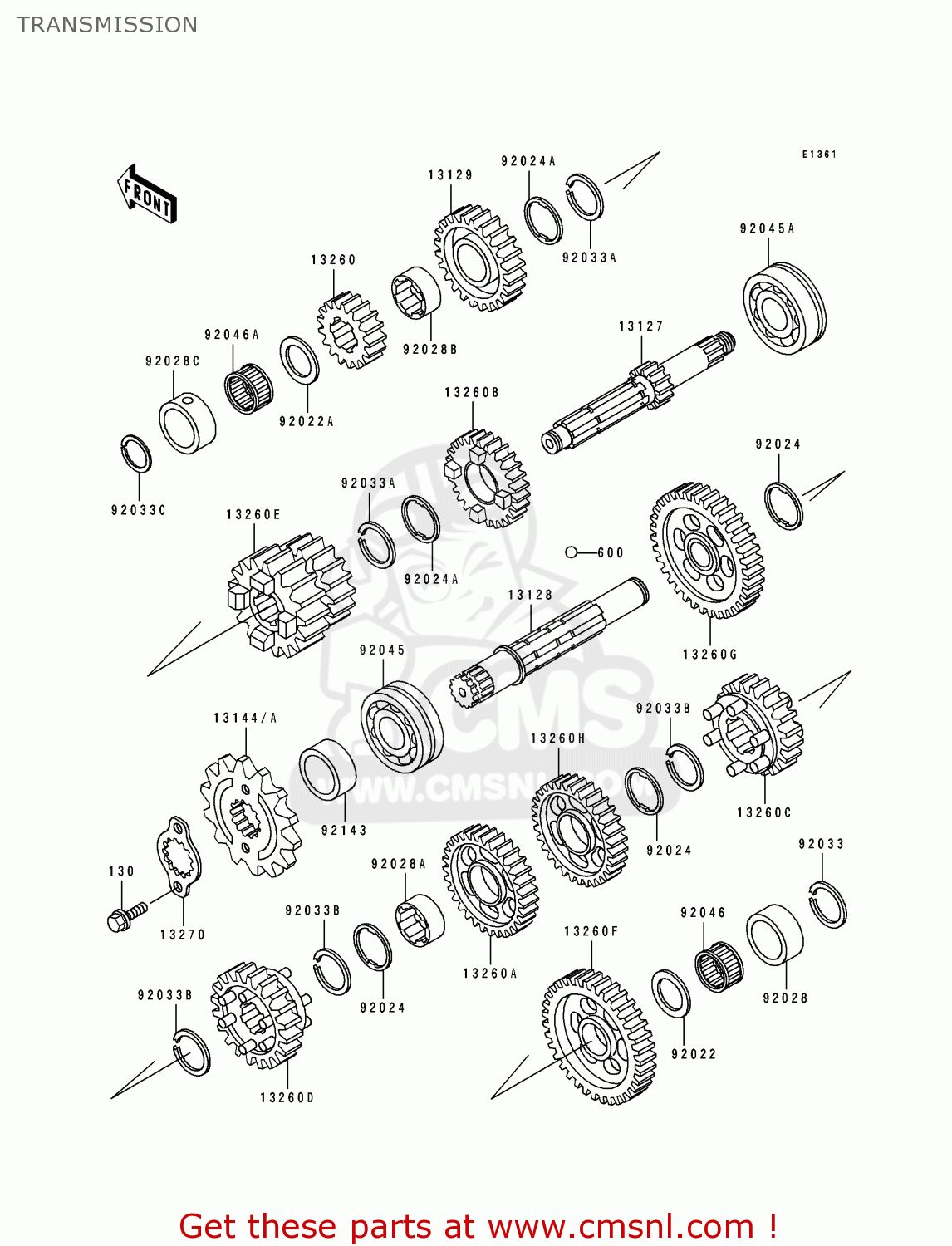

TRANSMISSION

ref

part #

description

quantity

130

130G0612
ref: 130

BOLT,FLANGE,6X12

€ 0.50

600

600A0500
ref: 600

BALL-STEEL,5/32

€ 0.50

13127

131271189
ref: 13127

SHAFT-TRANSMISSION IN

€ 209.50

13128

131281170
ref: 13128

SHAFT-TRANSMISSION OU

€ 179.50

13129

131291941
ref: 13129

GEAR,INPUT TOP,27T

€ 58.00

13144

131441122
ref: 13144

SPROCKET-OUTPUT,15T

€ 31.50

13260

132601179
ref: 13260

GEAR,INPUT 2ND,19T

€ 68.50

13260A

132601181
ref: 13260A

GEAR,OUTPUT 4TH,29T

€ 62.00

13260B

132601196
ref: 13260B

GEAR,INPUT 5TH,25T

€ 43.00

13260C

132601197
ref: 13260C

GEAR,OUTPUT 5TH,30T

€ 54.50

13260D

132601198
ref: 13260D

GEAR,OUTPUT TOP,30T

€ 60.00

13260E

132601280
ref: 13260E

GEAR,INPUT 3RD&4TH,19

€ 106.50

13260F

132601281
ref: 13260F

GEAR,OUTPUT LOW,37T

€ 58.50

13260G

132601282
ref: 13260G

GEAR,OUTPUT 2ND,38T

€ 108.50

13260H

132601283
ref: 13260H

GEAR,OUTPUT 3RD,30T

€ 122.50

13270

132701060
ref: 13270

PLATE,SPROCKET

€ 5.50

92022

92022112
ref: 92022

WASHER,20.5X30X1,STEE

€ 6.00

92022A

92022255
ref: 92022A

WASHER

€ 5.50

92024

92024033
ref: 92024

WASHER,TOOTHED,25.5X3

€ 4.50

92024A

92024034
ref: 92024A

WASHER,TOOTHED,25.5X2

€ 2.50

92028

920281151
ref: 92028

BUSHING,27X34X18.6

€ 19.00

92028A

920281437
ref: 92028A

BUSHING

€ 16.50

92028B

920281536
ref: 92028B

BUSHING,TOP

€ 18.00

92028C

920281537
ref: 92028C

BUSHING

€ 18.00

92033

92033015
ref: 92033

CIRCLIP

€ 2.50

92033A

92033025
ref: 92033A

CIRCLIP,25MM

€ 3.00

92033B

92033026
ref: 92033B

CIRCLIP

€ 6.00

92033C

92033032
ref: 92033C

CIRCLIP

€ 3.00

92045

92045035
ref: 92045

BEARING-BALL,83993SH2

€ 66.50

92045A

920451013
ref: 92045A

BEARING-BALL,#6205NX3

€ 23.00

92046

920461045
ref: 92046

BEARING-NEEDLE,20V271

€ 25.00

92046A

920461210
ref: 92046A

BEARING-NEEDLE

€ 11.50

92143

921431203
ref: 92143

COLLAR,25X32X14.5

€ 10.00
