HEAD LAMP

ZX400L1 ZXR400 1991 EUROPE UK FR AR FG GR IT NR

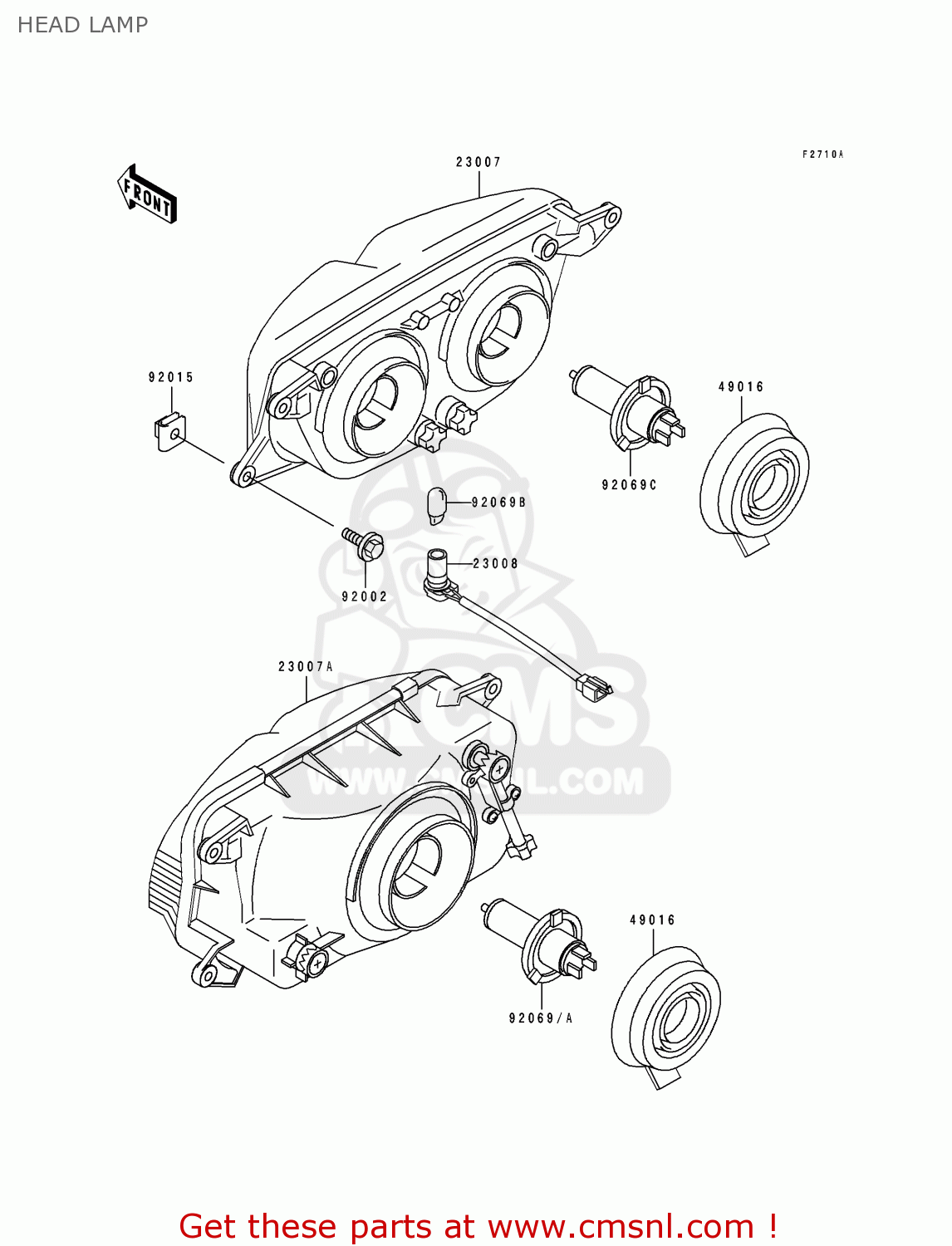

Head lamp diagram ZX400L1 ZXR400 1991 EUROPE UK FR AR FG GR IT NR

prices are in EUR

ref

part #

description

quantity

23007

230071272
ref: 23007
UK

LENS-COMP,HEAD LAMP

€ 433.00

23008

230081472
ref: 23008
UK

SOCKET-ASSY,HEAD LAMP

€ 17.50

49016

490161137
ref: 49016
UK

COVER-SEAL,HEAD LAMP

€ 10.50

92002

920021320
ref: 92002
UK

BOLT,6X25

€ 3.00

92015

920151094
ref: 92015
UK

NUT,MUFFLER

€ 5.50

92069B

920691016
ref: 92069B
UK

BULB,12V 5W

€ 4.00

92069C

920691079
ref: 92069C
UK

BULB,12V 60/35W

€ 30.50
