OIL PUMP

ZX400L1 ZXR400 1991 EUROPE UK FR AR FG GR IT NR

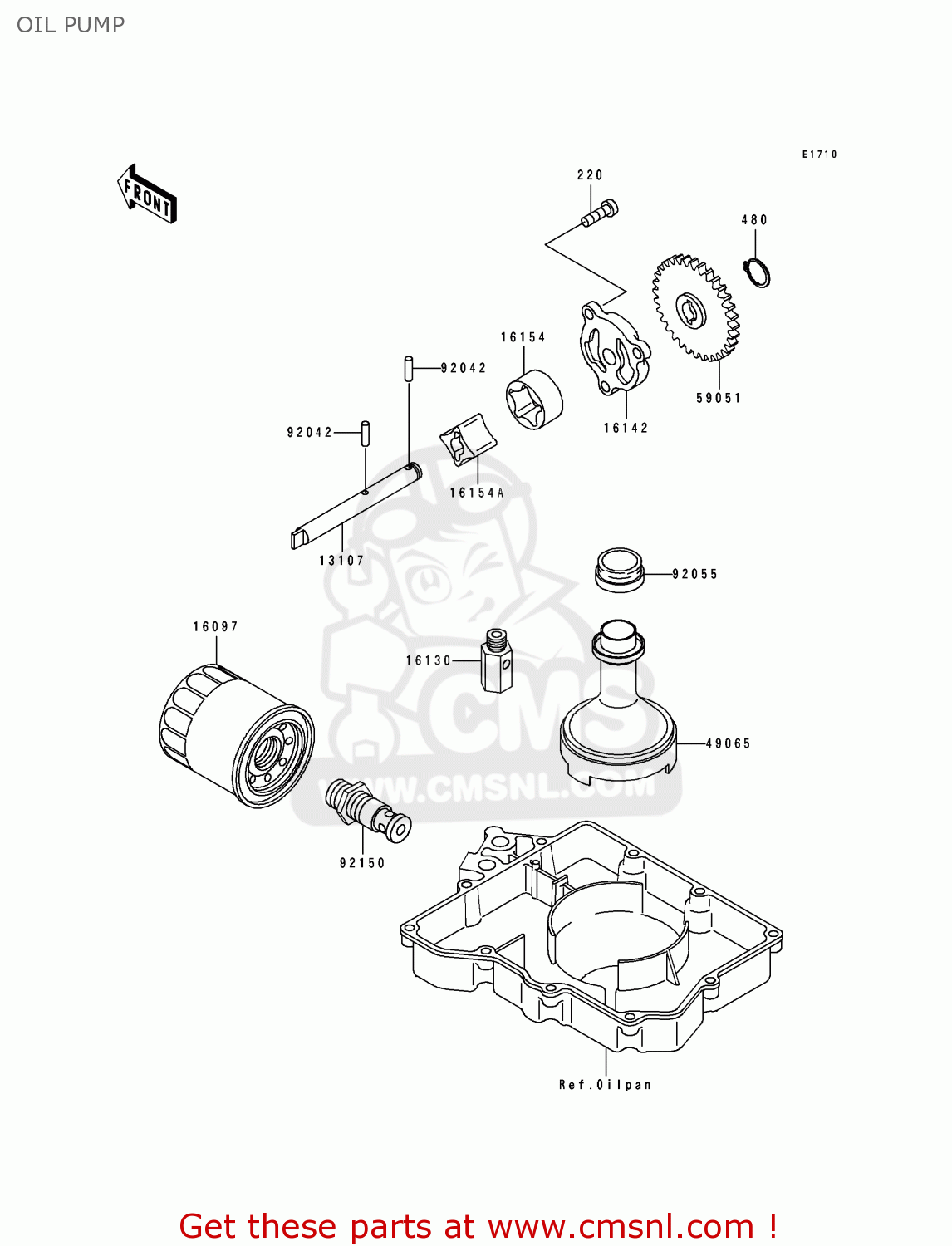

Oil pump diagram ZX400L1 ZXR400 1991 EUROPE UK FR AR FG GR IT NR

prices are in EUR

ref

part #

description

quantity

220

220B0620
ref: 220

SCREW-PAN HEAD,6X20

€ 2.50

480

480J1100
ref: 480

CIRCLIP-TYPE-C,11MM

€ 0.50

13107

131071225
ref: 13107

SHAFT,PUMP

€ 16.00

16097

160971063
ref: 16097

FILTER-ASSY-OIL

€ 10.50

16130

161301001
ref: 16130

VALVE-ASSY-RELIEF

€ 28.50

16142

161421087
ref: 16142

COVER-PUMP

€ 23.50

16154

161541075
ref: 16154

ROTOR-PUMP,OUTER

€ 23.00

16154A

161541076
ref: 16154A

ROTOR-PUMP,INNER

€ 23.00

49065

490651061
ref: 49065

FILTER-OIL

€ 16.50

59051

590511201
ref: 59051

GEAR-SPUR,PUMP,33T

€ 40.50

92042

92042014
ref: 92042

PIN-GEAR CHANGE DRUM

€ 0.50

92055

920551354
ref: 92055

RING-O,OIL FILTER

€ 6.50

92150

921501282
ref: 92150

BOLT,OIL FILTER

€ 21.00

OIL PUMP

all assemblies
