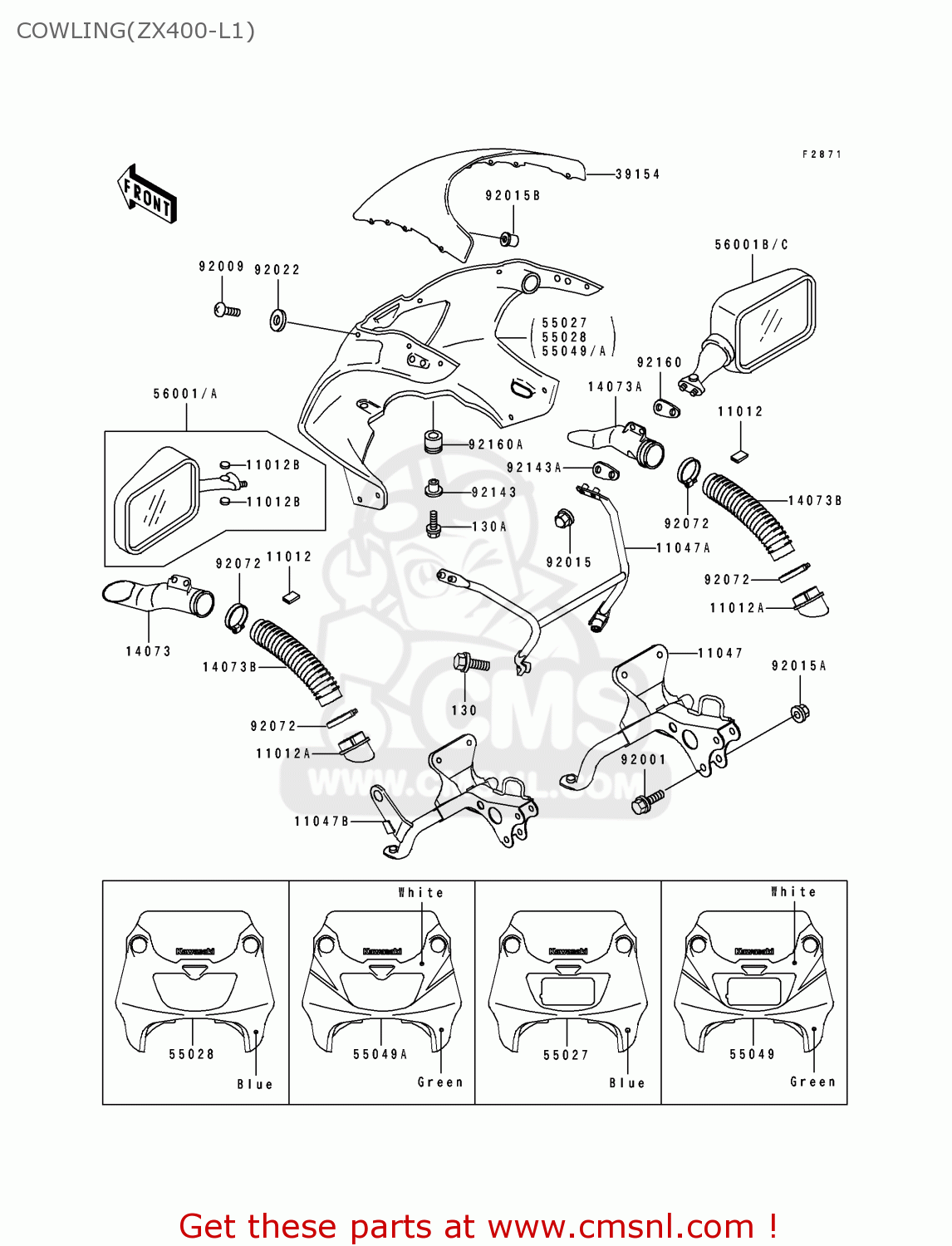

COWLING(ZX400-L1)

ref

part #

description

quantity

11012

110121725
ref: 11012

CAP

€ 2.00

11012A

110121782
ref: 11012A

CAP,FRESH AIR INTAKE

€ 18.50

11012B

110121818
ref: 11012B

CAP,MIRROR

€ 2.00

11047

110471318
ref: 11047
UK

BRACKET,UPP COWLING

€ 219.50

11047A

110471319
ref: 11047A

BRACKET,MIRROR

€ 81.00

11047B

110471326
ref: 11047B
AREUFGFRGRITNR

BRACKET,UPP COWLING

€ 184.50

14073

140731483
ref: 14073

DUCT,FRESH AIR INTAKE

€ 29.50

14073A

140731484
ref: 14073A

DUCT,FRESH AIR INTAKE

€ 30.50

14073B

140731485
ref: 14073B

DUCT,FRESH AIR INTAKE

€ 29.50

39154

391541118
ref: 39154

WINDSHIELD

€ 184.50

55027

550271128KH
ref: 55027
FG

COWLING-ASSY,UPP,M.BL

€ 580.00

55028

550281267KH
ref: 55028
UK

COWLING,UPP,M.BLUE GI

€ 639.00

55049

550495033CK
ref: 55049
AREUFGFRGRITNR

COWLING.,UPP,GREEN/WH

€ 673.50

55049A

550495038CK
ref: 55049A
UK

COWLING.,UPP,GREEN/WH

€ 639.00

56001

5600113766C
ref: 56001
FGUK

MIRROR-ASSY,LH,EBONY

€ 81.50

56001A

5600113766F
ref: 56001A

MIRROR-ASSY,LH,P.WHIT

€ 80.00

56001B

5600113776C
ref: 56001B
FGUK

MIRROR-ASSY,RH,EBONY

€ 81.50

56001C

5600113776F
ref: 56001C

MIRROR-ASSY,RH,P.WHIT

€ 80.00

92001

920011612
ref: 92001

BOLT,FLANGED,8X40,BLA

€ 3.00

92009

920091654
ref: 92009

SCREW

€ 0.50

92015

920151170
ref: 92015

NUT,CAP 6MM,BLACK

€ 0.50

92015A

920151174
ref: 92015A

NUT,CAP,8MM,BLACK

€ 3.00

92015B

920151757A
ref: 92015B

NUT,5MM

€ 5.00

92022

920221521
ref: 92022

WASHER,NYLON,5.3X11.5

€ 2.50

130

130J0614
ref: 130

BOLT-FLANGED,6X14,BLA

€ 1.50

130A

130J0620
ref: 130A

BOLT-FLANGED,6X20

€ 2.50

92072

920721091
ref: 92072

BAND

€ 14.50

92143

921431026
ref: 92143

COLLAR

€ 4.00

92143A

921431352
ref: 92143A

COLLAR,MIRROR

€ 3.50

92160

921601089
ref: 92160

DAMPER,MIRROR

€ 4.50

92160A

921601141
ref: 92160A

DAMPER

€ 3.00
