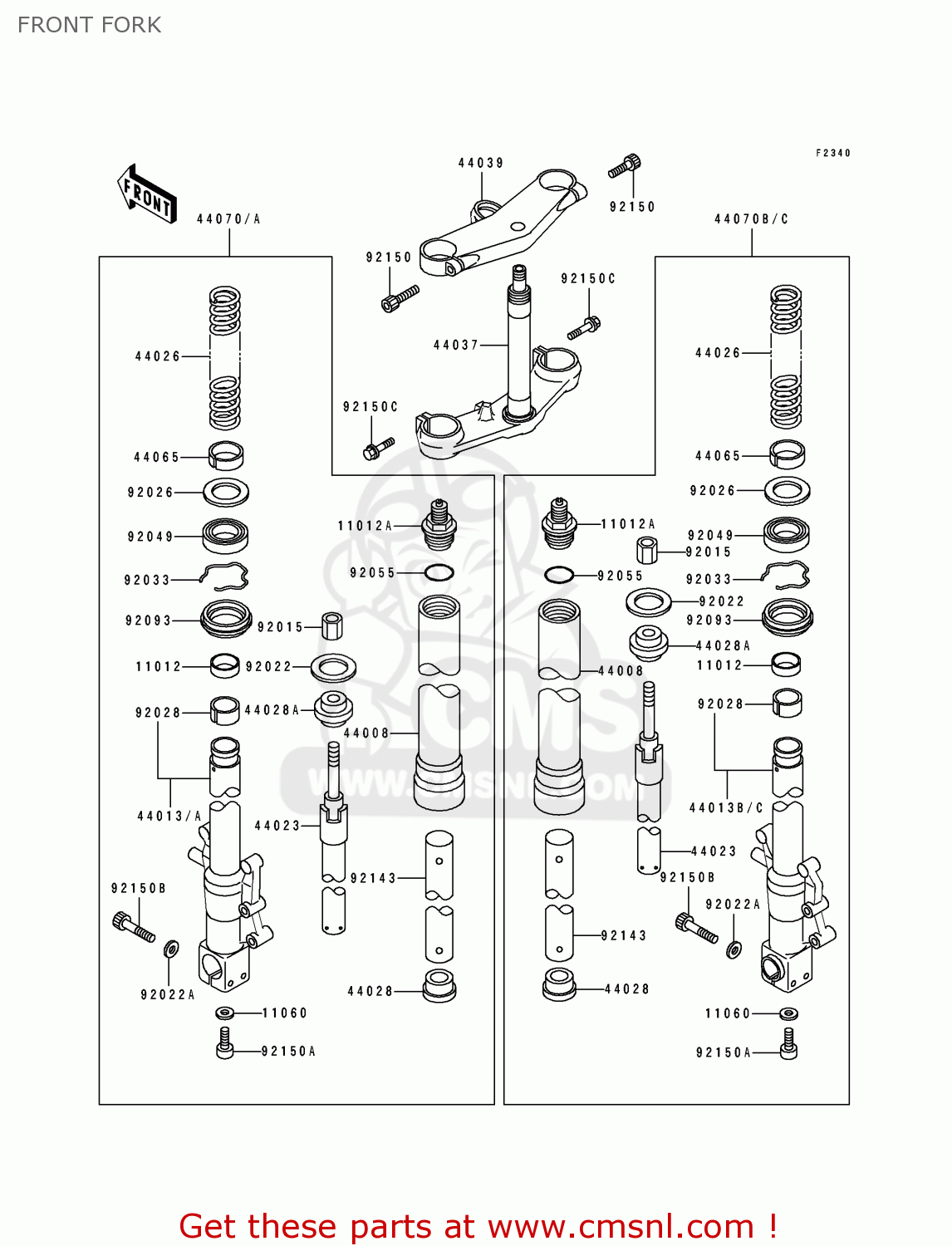

FRONT FORK

ref

part #

description

quantity

11012

110121761
ref: 11012

CAP

€ 26.00

11012A

110121783
ref: 11012A

CAP,FORK TOP

€ 185.00

11060

110601179
ref: 11060

GASKET,FORK CYLINDER (NAS)

€ 3.00

44008

440081014JS
ref: 44008

PIPE-FORK OUTER,BROWN

€ 654.00

44013

440131345KF
ref: 44013

PIPE-FORK INNER,LH,SI

€ 291.50

44013A

44013134510
ref: 44013A
FGUK

PIPE-FORK INNER,LH,BL

€ 240.00

44013B

440131346KF
ref: 44013B

PIPE-FORK INNER,RH,SI

€ 277.50

44013C

44013134610
ref: 44013C
FGUK

PIPE-FORK INNER,RH,BL

€ 270.00

44023

440231076
ref: 44023

CYLINDER-COMP-FORK

€ 195.00

44026

440261495
ref: 44026

SPRING-FRONT FORK

€ 48.00

44028

440281082
ref: 44028

GUIDE-FORK SPRING

€ 10.00

44028A

440281083
ref: 44028A

GUIDE-FORK SPRING

€ 7.00

44037

440371285
ref: 44037

HOLDER-FORK UNDER

€ 431.50

44039

440391214
ref: 44039

HOLDER-FORK UPPER

€ 239.50

44065

440651102
ref: 44065

BUSHING-FRONT FORK

€ 17.50

44070

440701105KF
ref: 44070

DAMPER-ASSY,FORK,LH,S

€ 1,144.00

44070A

44070110510
ref: 44070A
FGUK

DAMPER-ASSY,FORK,LH,B

€ 1,144.00

44070B

440701106KF
ref: 44070B

DAMPER-ASSY,FORK,RH,S

€ 1,149.00

44070C

44070110610
ref: 44070C
FGUK

DAMPER-ASSY,FORK,RH,B

€ 1,144.00

92015

920151853
ref: 92015

NUT

€ 6.00

92022

920221713
ref: 92022

WASHER,SPRING SEAT

€ 8.00

92022A

920221969
ref: 92022A

WASHER

€ 3.00

92026

920261276
ref: 92026

SPACER,FORK OUTER

€ 6.50

92028

920281614
ref: 92028

BUSHING

€ 19.00

92033

920331222
ref: 92033

RING-SNAP,FORK OUTER

€ 4.00

92049

920491370
ref: 92049

SEAL-OIL

€ 17.50

92055

920551497
ref: 92055

RING-O,FORK CAP

€ 4.00

92093

920931323
ref: 92093

SEAL,FORK OUTER TUBE

€ 16.50

92143

921431447
ref: 92143

COLLAR

€ 139.50

92150

921501407
ref: 92150

BOLT

€ 2.00

92150A

921501511
ref: 92150A

BOLT,SOCKET

€ 2.00

92150B

921501512
ref: 92150B

BOLT,SOCKET

€ 2.00

92150C

921501513
ref: 92150C

BOLT,FLANGED,8MM

€ 1.00
