SEAT

ZX400L1 ZXR400 1991 EUROPE UK FR AR FG GR IT NR

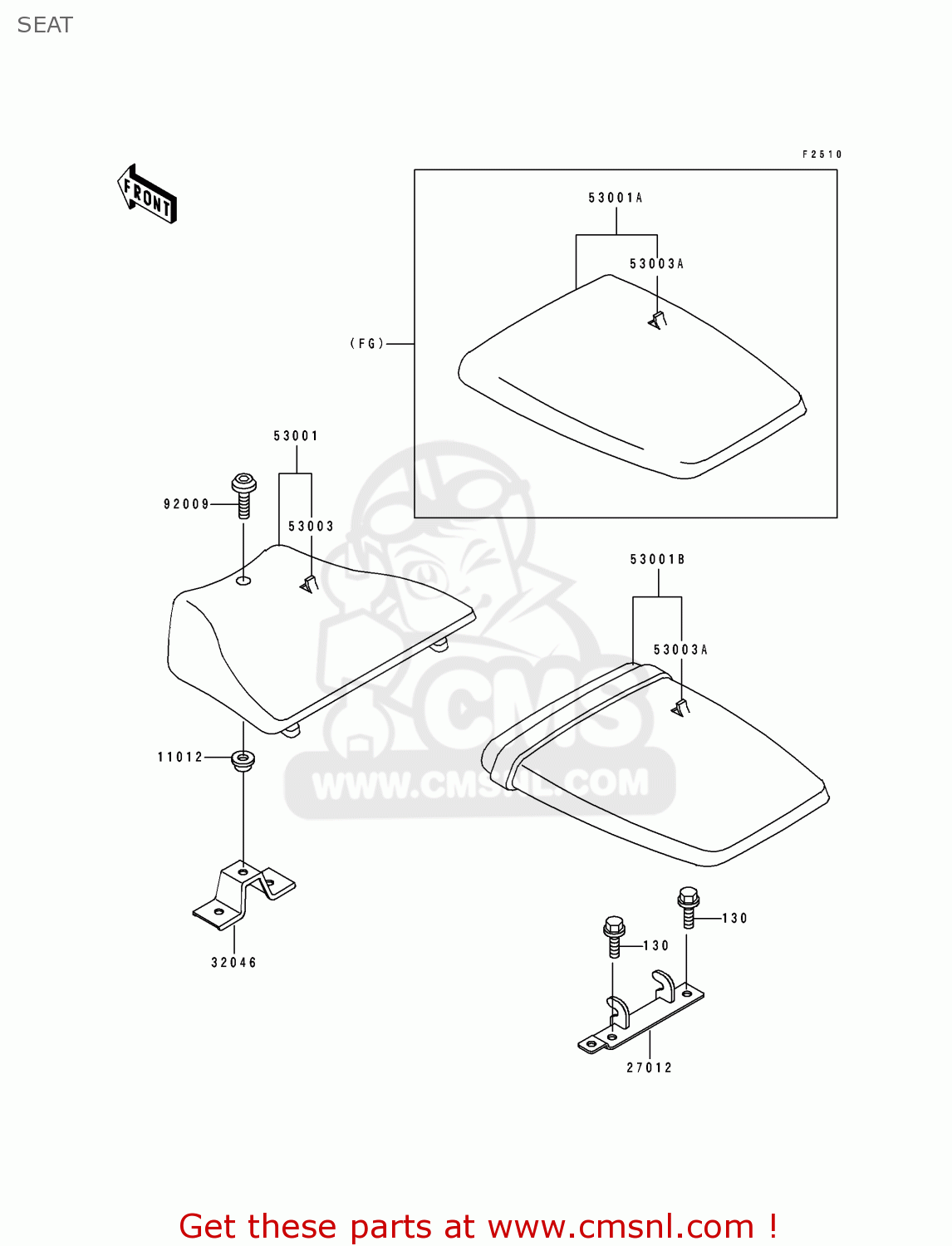

Seat diagram ZX400L1 ZXR400 1991 EUROPE UK FR AR FG GR IT NR

prices are in EUR

ref

part #

description

quantity

130

130D0616
ref: 130

BOLT-FLANGED

€ 0.50

11012

110121719
ref: 11012

CAP

€ 2.00

27012

270121438
ref: 27012

HOOK,SEAT

€ 15.50

32046

320461355
ref: 32046

BRACKET-SEAT

€ 8.50

53001

530011642MA
ref: 53001

SEAT-ASSY,FR,BLACK

€ 211.00

53001A

530011643MA
ref: 53001A
FG

SEAT-ASSY,RR,BLACK

€ 211.00

53001B

530011661MA
ref: 53001B
AREUFRGRITNRUK

SEAT-ASSY,RR,W/BAND,B

€ 221.50

53003

530031247MA
ref: 53003

LEATHER,FRONT SEAT,BL

€ 102.50

53003A

530031252MA
ref: 53003A

LEATHER,REAR SEAT,BLA

€ 75.00

92009

920091588
ref: 92009

SCREW,6X30

€ 2.50
