MUFFLER

ZX400L1 ZXR400 1991 EUROPE UK FR AR FG GR IT NR

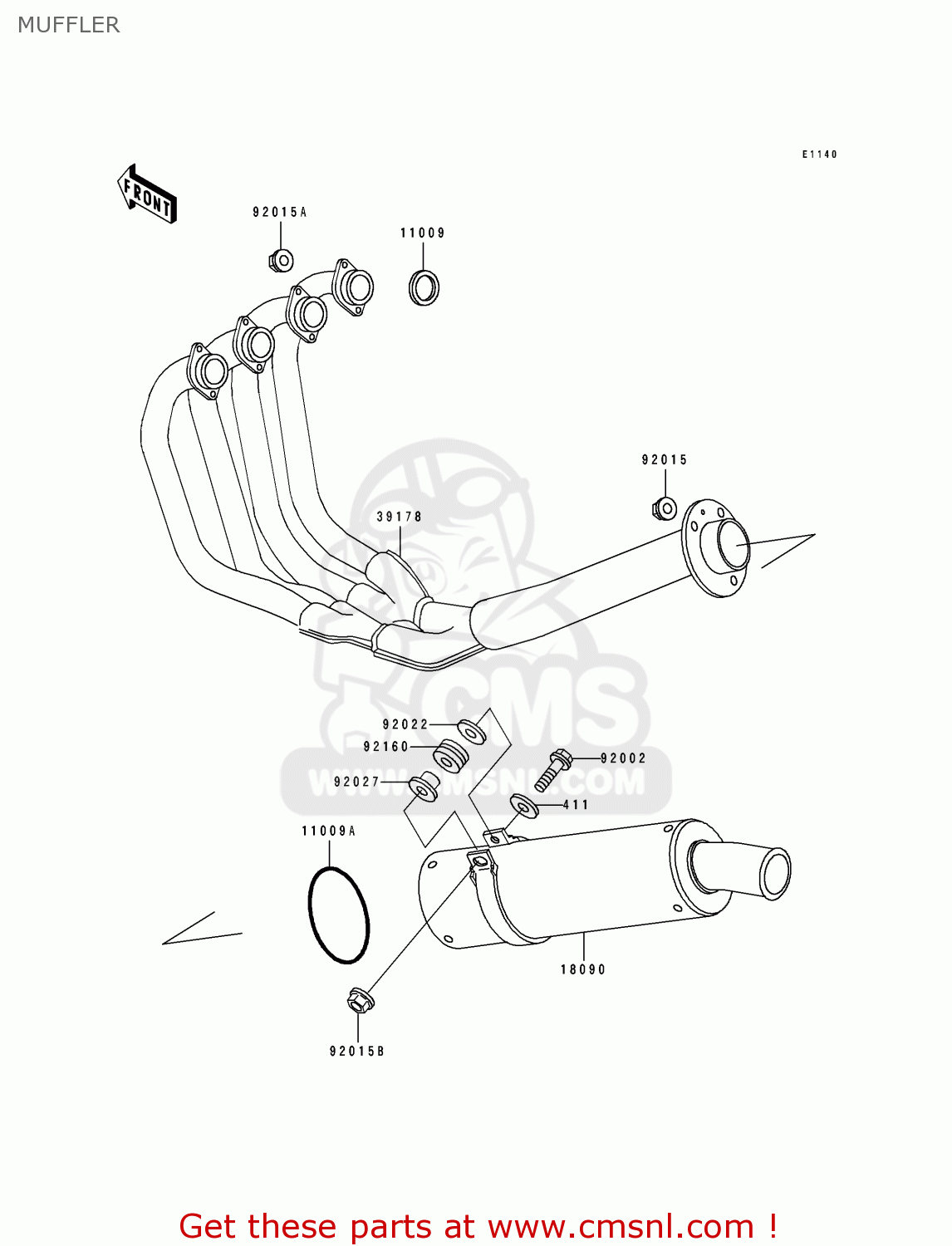

Muffler diagram ZX400L1 ZXR400 1991 EUROPE UK FR AR FG GR IT NR

prices are in EUR

ref

part #

description

quantity

411

411B0800
ref: 411

WASHER-PLAIN,8MM

€ 0.50

11009

110091866
ref: 11009

GASKET,EXHAUST PIPE H (NAS)

€ 7.50

11009A

110091907
ref: 11009A

GASKET,MUFFLER CONNEC (NAS)

€ 14.50

18090

180901119
ref: 18090

BODY-COMP-MUFFLER

€ 367.00

39178

391781206
ref: 39178

MANIFOLD-COMP-EXHAUST

€ 1,183.00

92002

920021445
ref: 92002

BOLT,FLANGED,8X30

€ 3.00

92015

920151143
ref: 92015

NUT,8MM

€ 0.50

92015A

920151365
ref: 92015A

NUT,6MM

€ 3.00

92015B

920151402
ref: 92015B

NUT,8MM

€ 3.00

92022

92022092
ref: 92022

WASHER

€ 2.50

92027

920271873
ref: 92027

COLLAR

€ 4.00

92160

921601012
ref: 92160

DAMPER

€ 3.50

MUFFLER

all assemblies
