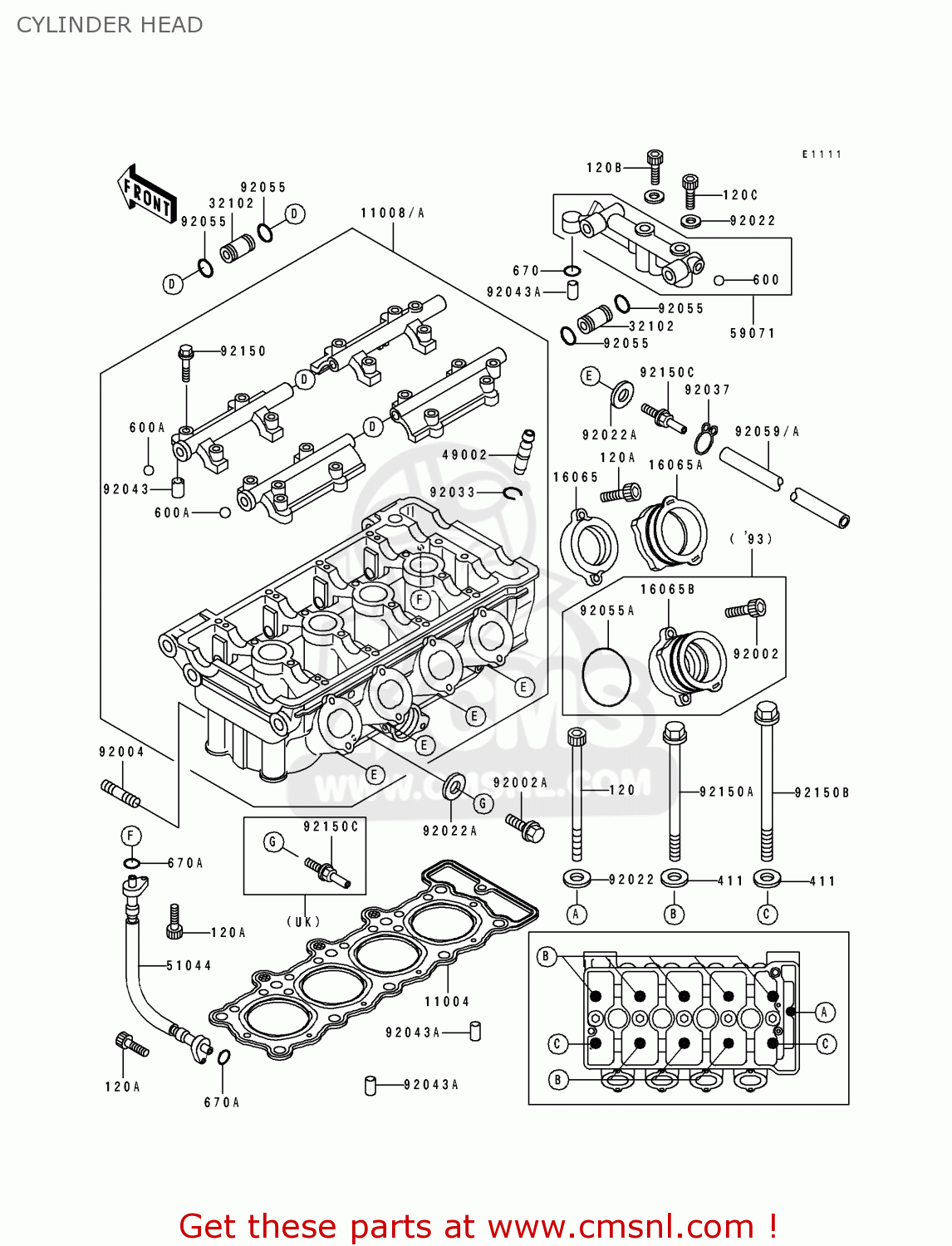

CYLINDER HEAD

ref

part #

description

quantity

120

120P06100
ref: 120

BOLT-SOCKET

€ 6.50

120A

120P0620
ref: 120A

BOLT-HEX HEAD,6X20

€ 0.50

120B

120P0655
ref: 120B

BOLT,6X55

€ 3.00

11004

110041182
ref: 11004

GASKET-HEAD (NAS)

€ 42.00

11008

110081221
ref: 11008
AREUFGFRGRITNR

HEAD-COMP-CYLINDER

€ 1,803.50

11008A

110081254
ref: 11008A
UK

HEAD-COMP-CYLINDER

€ 1,488.50

16065

160651176
ref: 16065

HOLDER-CARBURETOR

€ 10.00

16065A

160651240
ref: 16065A

HOLDER-CARBURETOR

€ 15.00

32102

321021928
ref: 32102

PIPE,JOINT

€ 4.00

49002

490021091
ref: 49002

GUIDE-VALVE

€ 19.00

51044

510441141
ref: 51044

TUBE-ASSY

€ 98.00

59071

590711148
ref: 59071

JOINT

€ 48.50

92004

920041212
ref: 92004

STUD,6X22

€ 4.00

92022

920221827
ref: 92022

WASHER,6X12.8X1.2

€ 3.00

92022A

92022304
ref: 92022A
AREUFGFRGRITNR

WASHER,PLAIN

€ 2.50

92022A

92022304
ref: 92022A
UK

WASHER,PLAIN

€ 2.50

92033

920331247
ref: 92033

RING-SNAP

€ 2.00

92037

920371712
ref: 92037

CLAMP

€ 3.00

92043

920431262
ref: 92043

PIN,DOWEL,4.2X6X12

€ 2.50

92043A

920431264
ref: 92043A

PIN,DOWEL,8.2X10X14

€ 0.50

92055

920551339
ref: 92055

RING-O,5.5X1.5

€ 3.00

92059

920591955
ref: 92059

TUBE,4X9X218

€ 6.00

92059A

920591956
ref: 92059A

TUBE,4X9X136

€ 8.00

92150

921501083
ref: 92150

BOLT,6X35

€ 2.50

92150A

921501084
ref: 92150A

BOLT,8X133

€ 4.50

92150B

921501085
ref: 92150B

BOLT,8X139

€ 5.50

92150C

921501161
ref: 92150C
AREUFGFRGRITNR

BOLT

€ 6.00

92150C

921501161
ref: 92150C
UK

BOLT

€ 6.00

120C

120P0665
ref: 120C

BOLT-SOCKET,6X65

€ 3.00

411

411B0800
ref: 411

WASHER-PLAIN,8MM

€ 0.50

600

600A0600
ref: 600

BALL-STEEL,3/16

€ 0.50

600A

600A0800
ref: 600A

BALL-STEEL,1/4

€ 0.50

670

670D1510
ref: 670

O RING,10MM

€ 3.00

670A

670D2010
ref: 670A

O RING,10MM

€ 1.00

all assemblies
