Genuine ZN Kawasaki Parts delivered quickly!


MUFFLERS

ZN1300A2 VOYAGER 1984 USA CALIFORNIA CANADA

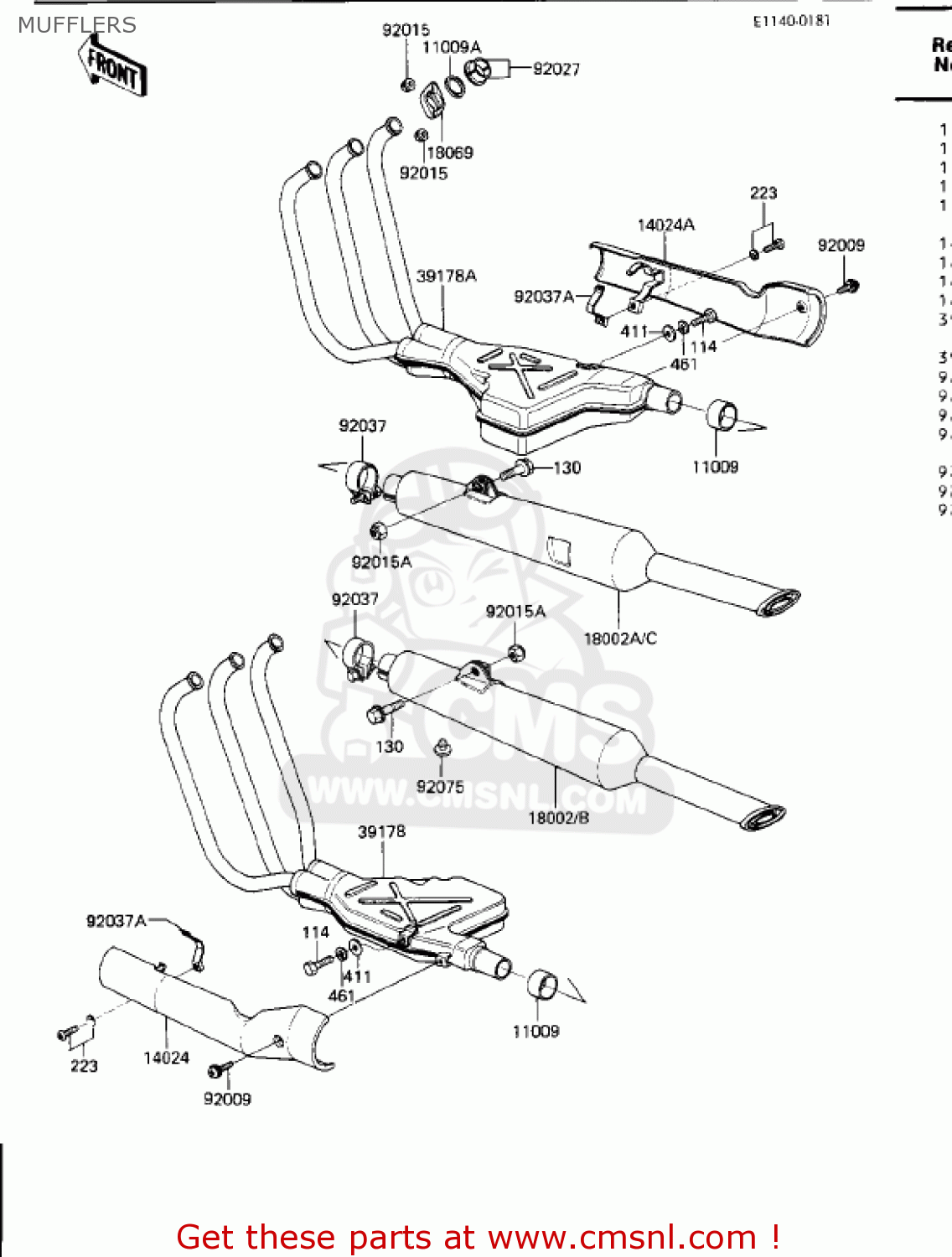

Mufflers diagram ZN1300A2 VOYAGER 1984 USA CALIFORNIA CANADA

MUFFLERS ZN1300A2 VOYAGER 1984 USA CALIFORNIA CANADA
MUFFLERS ZN1300A2 VOYAGER 1984 USA CALIFORNIA CANADA
MUFFLERS ZN1300A2 VOYAGER 1984 USA CALIFORNIA CANADA
prices are in EUR
ref
part #
description
quantity
11009
110091666
ref: 11009
GASKET,EXHAUST PIPE C (NAS)
110091666
€ 20.50
11009A
110091866
ref: 11009A
GASKET,EXHAUST PIPE H (NAS)
110091866
€ 7.50
14024
140251824
ref: 14024
COVER,MUFFLER,LH
€ 36.00
14024A
140251825
ref: 14024A
COVER,MUFFLER,RH
€ 27.50
18002
180021638
ref: 18002
BODY-COMP-MUFFLER,LH
€ 338.00
18002A
180021639
ref: 18002A
BODY-COMP-MUFFLER,RH
€ 338.00
18002B
180021638
ref: 18002B
BODY-COMP-MUFFLER,LH
€ 338.00
18002C
180021639
ref: 18002C
BODY-COMP-MUFFLER,RH
€ 338.00
18069
180691010
ref: 18069
HOLDER-EXHAUST PIPE
€ 12.50
39178
391781022
ref: 39178
MANIFOLD-COMP-EXHAUST
€ 538.50
39178A
391781023
ref: 39178A
MANIFOLD-COMP-EXHAUST
€ 512.50
92009
920091098
ref: 92009
SCREW,6X10
920091098
€ 2.00
92015
920151365
ref: 92015
NUT,6MM
920151365
€ 3.00
92015A
92019021
ref: 92015A
NUT,LOCK,10M/M
92019021
€ 2.00
92027
920271142
ref: 92027
COLLAR,L=14.5
920271142
€ 3.00
92037
920371228
ref: 92037
CLAMP,POWER CHAMBER
920371228
€ 11.50
92037A
920371465
ref: 92037A
CLAMP,MUFFLER COVER
920371465
€ 5.50
92075
92075015
ref: 92075
DAMPER RUBB-MAIN STND
92075015
€ 3.00
114
114N0825
ref: 114
BOLT-SMALL,8X25
114N0825
€ 2.50
130
130J1030
ref: 130
BOLT-FLANGED,10X30
€ 3.50
223
223X0630
ref: 223
SCREW-PAN-WS-CROS
€ 1.50
411
411D0800
ref: 411
WASHER,PLAIN,8MM
€ 2.00
461
461S0800
ref: 461
WASHER,SPRING,8M/M
461S0800
€ 0.50
