FAIRING

ZN1300A2 VOYAGER 1984 USA CALIFORNIA CANADA

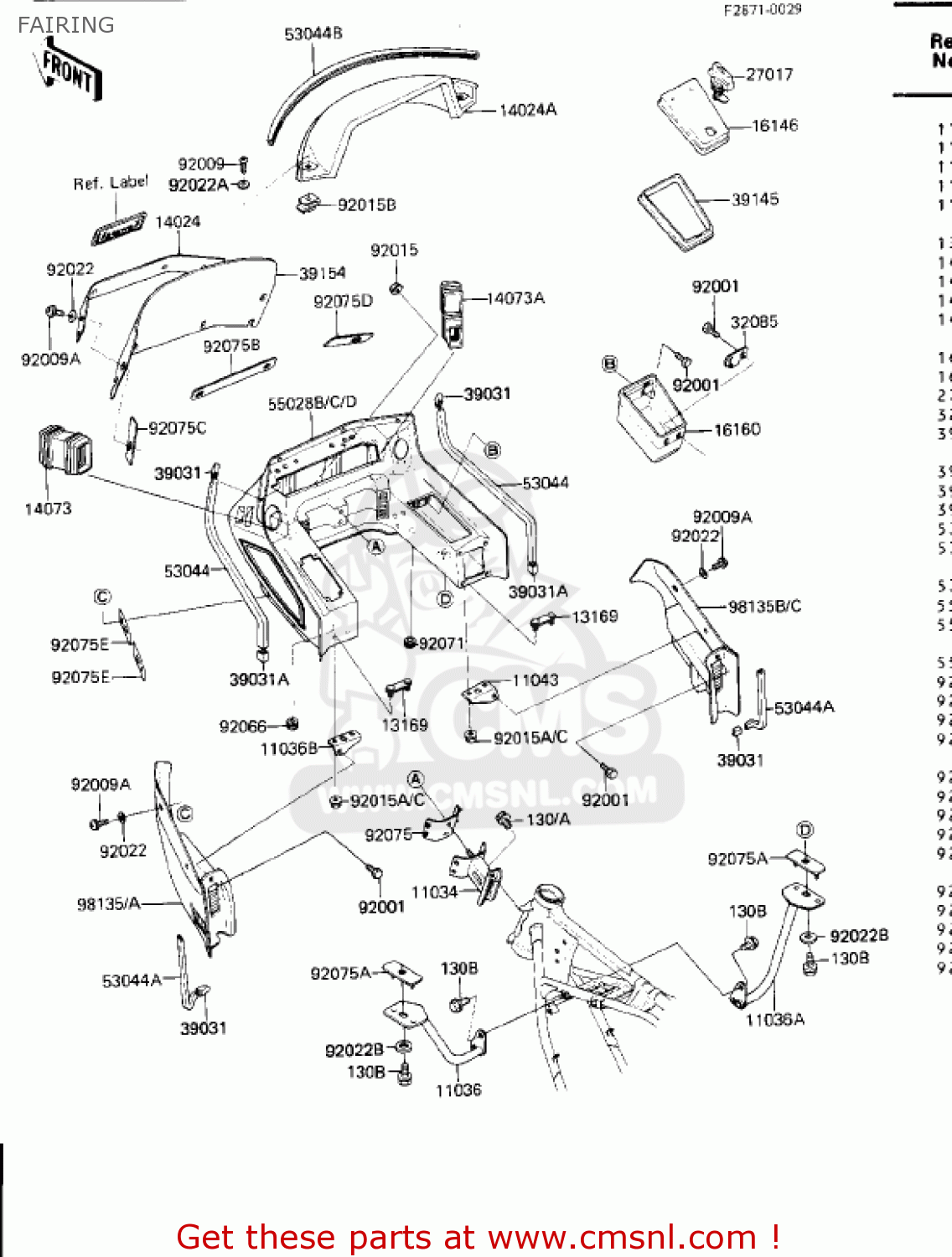

Fairing diagram ZN1300A2 VOYAGER 1984 USA CALIFORNIA CANADA

FAIRING ZN1300A2 VOYAGER 1984 USA CALIFORNIA CANADA
FAIRING ZN1300A2 VOYAGER 1984 USA CALIFORNIA CANADA
FAIRING ZN1300A2 VOYAGER 1984 USA CALIFORNIA CANADA
prices are in EUR
ref
part #
description
quantity
11034
110341485
ref: 11034
BRACKET,COWLING
€ 46.00
11036
110361994
ref: 11036
BRACKET-A,COWLING UPP
€ 26.00
11036A
110361995
ref: 11036A
BRACKET-A,COWLING UPP
€ 26.00
11036B
110361996
ref: 11036B
BRACKET-A,COWLING,LH
€ 6.00
11043
110431055
ref: 11043
BRACKET-B,COWLING,RH
€ 4.50
13169
131691612
ref: 13169
PLATE,COWLING BLACKET
€ 4.00
14024
140251663
ref: 14024
COVER,WIND SHIELD
€ 197.50
14024A
140251784
ref: 14024A
COVER,METER
€ 230.00
14073
140731101
ref: 14073
DUCT,COWLING,LH
€ 17.00
14073A
140731102
ref: 14073A
DUCT,COWLING,RH
140731102
€ 10.00
16146
161461014
ref: 16146
COVER-ASSY,COWLING PO
161461014
€ 142.50
16160
161601013
ref: 16160
BODY,STRAGE CASE
€ 134.50
27017
270171103
ref: 27017
LOCK,BAG
€ 38.00
32085
320851159
ref: 32085
STOPPER,COWLING COVER
€ 3.50
39031
390311052
ref: 39031
CAP-END,COWLING TRIM
390311052
€ 3.50
39031A
390311054
ref: 39031A
CAP-END,COWLING TRIM
390311054
€ 4.00
39145
391451007
ref: 39145
TRIM-SEAL,STORAGE CAS
€ 8.50
39154
391541013
ref: 39154
WINDSHIELD,COWLING
€ 531.50
53044
530441043
ref: 53044
TRIM,COWLING,UPP
€ 7.50
53044A
530441044
ref: 53044A
TRIM,COWLING,LWR
530441044
€ 4.50
53044B
530441113
ref: 53044B
TRIM,METER COVER
€ 10.00
55028B
550285071F7
ref: 55028B
COWLING,UPP,T.T.EBONY
€ 3,577.00
55028C
550285071F7
ref: 55028C
COWLING,UPP,T.T.EBONY
€ 3,577.00
55028D
550285176T1
ref: 55028D
COWLING UPP,RED
€ 2,614.50
92001
920021884
ref: 92001
BOLT,6X12
920021884
€ 2.50
92009
920091182
ref: 92009
SCREW,5X12,BLACK
920091182
€ 1.50
92009A
920091664
ref: 92009A
SCREW
920091664
€ 2.50
92015
920151408
ref: 92015
NUT,FLANGED,8MM
920151408
€ 1.00
92015A
920151078
ref: 92015A
NUT,6M/M
920151078
€ 1.50
92015B
920151261
ref: 92015B
NUT,COVER,SIDE
920151261
€ 4.50
92015C
920151367
ref: 92015C
NUT,FLANGED,6MM
920151367
€ 0.50
92022
920221143
ref: 92022
WASHER,6.5X16X1
920221143
€ 2.50
92022A
920221405
ref: 92022A
WASHER,5.5X20X1.2
920221405
€ 2.50
92022B
920221561
ref: 92022B
WASHER,8.5X20X1.6
920221561
€ 2.50
92066
92074027
ref: 92066
PLUG,25X2.5
92074027
€ 6.50
92071
920711021
ref: 92071
GROMMET,WIRING HARNES
920711021
€ 3.50
92075
920751179
ref: 92075
DAMPER,COWLING FITTIN
920751179
€ 8.00
92075A
920751180
ref: 92075A
DAMPER,COWLING FITT
920751180
€ 5.00
92075B
920751466
ref: 92075B
DAMPER,WIND SHIELD
920751466
€ 6.00
92075C
920751579
ref: 92075C
DAMPER,COWLING,UPP,LH
€ 8.50
92075D
920751580
ref: 92075D
DAMPER,COWLING,UPP,RH
€ 6.50
92075E
920751583
ref: 92075E
DAMPER,COWLING
€ 3.50
98135
981351053H8
ref: 98135
SUB-ASSY,LOW,LH,EBONY
€ 929.50
98135A
981351053P5
ref: 98135A
COWLING SUB-ASSEMBLY,LUMINOUS VINTAGE RED
€ 551.00
98135B
981351054H8
ref: 98135B
SUB-ASSY,LOW,RH,EBONY
€ 959.00
98135C
981351054P5
ref: 98135C
COWLING SUB-ASSEMBLY,LUMINOUS VINTAGE RED
€ 551.00
130
130G0814
ref: 130
BOLT,FLANGED,8X14
130G0814
€ 0.50
130A
130D0814
ref: 130A
BOLT-FLANGED
130D0814
€ 0.50
130B
130G0816
ref: 130B
BOLT-FLANGED,8X16
130G0816
€ 0.50
