Genuine ZN Kawasaki Parts delivered quickly!


FRONT FORK

ZN1300A2 VOYAGER 1984 USA CALIFORNIA CANADA

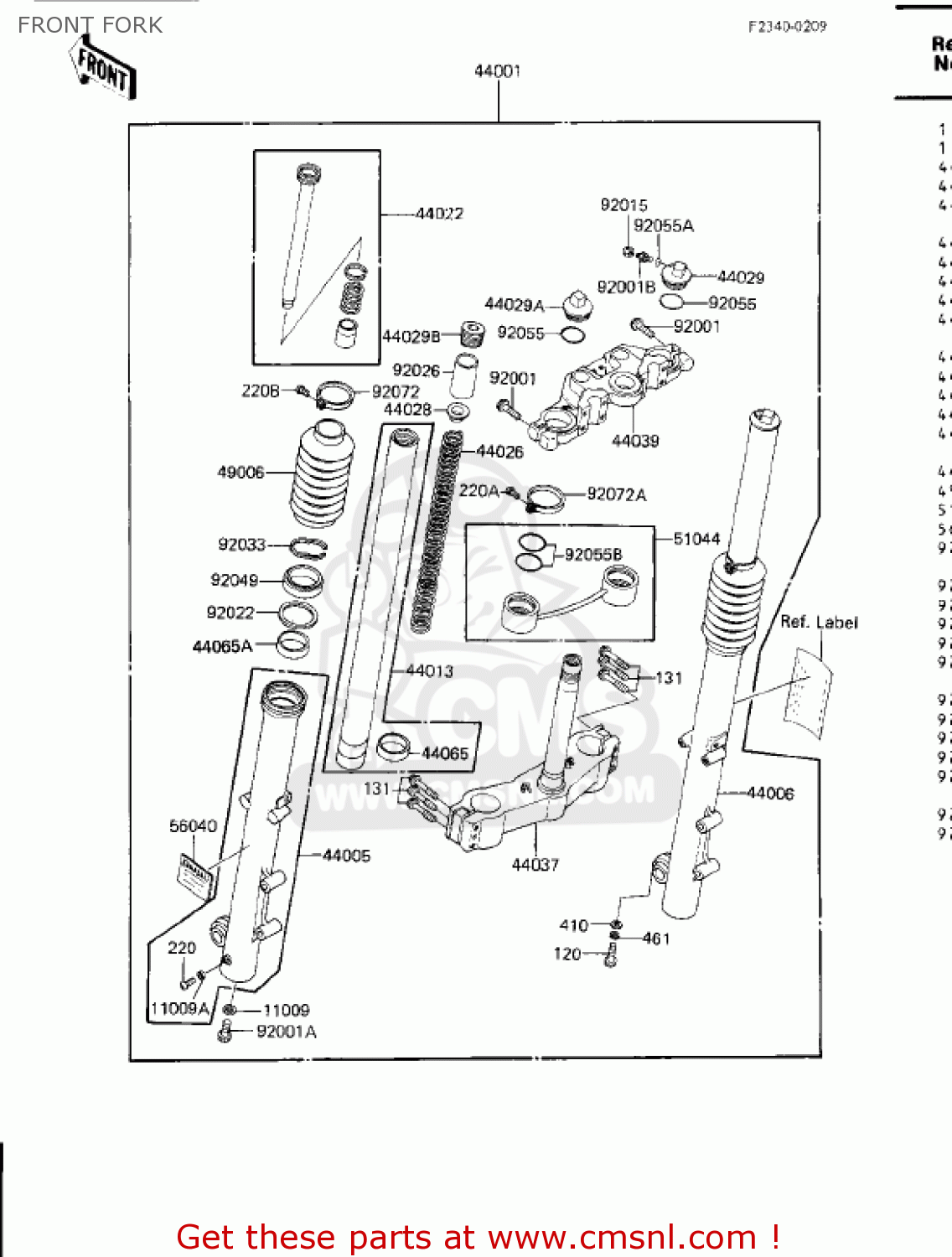

Front fork diagram ZN1300A2 VOYAGER 1984 USA CALIFORNIA CANADA

FRONT FORK ZN1300A2 VOYAGER 1984 USA CALIFORNIA CANADA
FRONT FORK ZN1300A2 VOYAGER 1984 USA CALIFORNIA CANADA
FRONT FORK ZN1300A2 VOYAGER 1984 USA CALIFORNIA CANADA
prices are in EUR
ref
part #
description
quantity
11009
110091127
ref: 11009
GASKET,FORK CYLID BOL (NAS)
110091127
€ 3.00
11009A
44045002
ref: 11009A
GASKET,FORK DRAIN PLU (NAS)
44045002
€ 3.00
44001
440011463
ref: 44001
FORK-FRONT
€ 1,221.00
44005
440051132
ref: 44005
PIPE-LEFT FORK OUTER
€ 346.50
44006
440061132
ref: 44006
PIPE-RIGHT FORK OUTER
€ 350.50
44013
440131206
ref: 44013
PIPE-FORK INNER
€ 180.00
44022
440221156
ref: 44022
CYLINDER-FORK
€ 87.00
44026
440261261
ref: 44026
SPRING-FRONT FORK
€ 46.50
44028
440281051
ref: 44028
GUIDE-FORK SPRING
€ 4.00
44029
440291102
ref: 44029
SEAT-FORK SPRING,RH
€ 26.50
44029A
440291103
ref: 44029A
SEAT-FORK SPRING,LH
€ 26.50
44029B
440291104
ref: 44029B
SEAT-FORK-SPRING
€ 14.50
44037
440371112
ref: 44037
HOLDER-FORK UNDER
€ 309.00
44039
440391076
ref: 44039
HOLDER-FORK UPPER
€ 256.50
44065
440181006
ref: 44065
PISTON-FORK
440181006
€ 17.00
44065A
440651064
ref: 44065A
BUSHING-FRONT FORK
440651064
€ 21.00
49006
490061159
ref: 49006
BOOT,FRONT FORK
€ 48.50
51044
510441025
ref: 51044
TUBE-ASSY,FRONT FORK
€ 99.50
56040
560401110
ref: 56040
LABEL-WARNING,FRONT F
€ 2.50
92001
920011189
ref: 92001
BOLT,10X45
920011189
€ 6.00
92001A
920011309
ref: 92001A
BOLT,FORK CYLINDER
920011309
€ 4.50
92001B
920011878
ref: 92001B
BOLT,NIPPLE
€ 13.00
92015
920151326
ref: 92015
NUT,CAP
€ 6.50
92022
920221298
ref: 92022
WASHER,FORK OUTER TUB
920221298
€ 5.50
92026
920261222
ref: 92026
SPACER,FRONT FORK
€ 3.00
92033
920331036
ref: 92033
CIRCLIP
920331036
€ 4.00
92049
920491164
ref: 92049
SEAL-OIL
€ 13.00
92055
920551050
ref: 92055
RING-O,FORK TOP CAP
920551050
€ 4.00
92055A
920551094
ref: 92055A
0 RING,AIR VALVE
920551094
€ 1.00
92055B
920551106
ref: 92055B
RING-O,FORK AIR TUBE
920551106
€ 3.50
92072
920721077
ref: 92072
BAND,BOOT
920721077
€ 7.00
92072A
920721157
ref: 92072A
BAND
920721157
€ 5.50
120
120S0830
ref: 120
BOLT-SOCKET,8X30,BLAC
120S0830
€ 3.00
131
131G0845
ref: 131
BOLT,FLANGED,8X45
131G0845
€ 1.00
220
220B0408
ref: 220
SCREW-PAN-CROS
220B0408
€ 0.50
220A
220B0414
ref: 220A
SCREW-PAN-CROS
220B0414
€ 2.00
220B
220B0416
ref: 220B
SCREW-PAN-CROS
220B0416
€ 2.00
410
410B0800
ref: 410
WASHER-PLAIN-SMALL,8M
410B0800
€ 0.50
461
461F0800
ref: 461
WASHER-SPRING,8MM
461F0800
€ 0.50
