METERS

ZN1300A2 VOYAGER 1984 USA CALIFORNIA CANADA

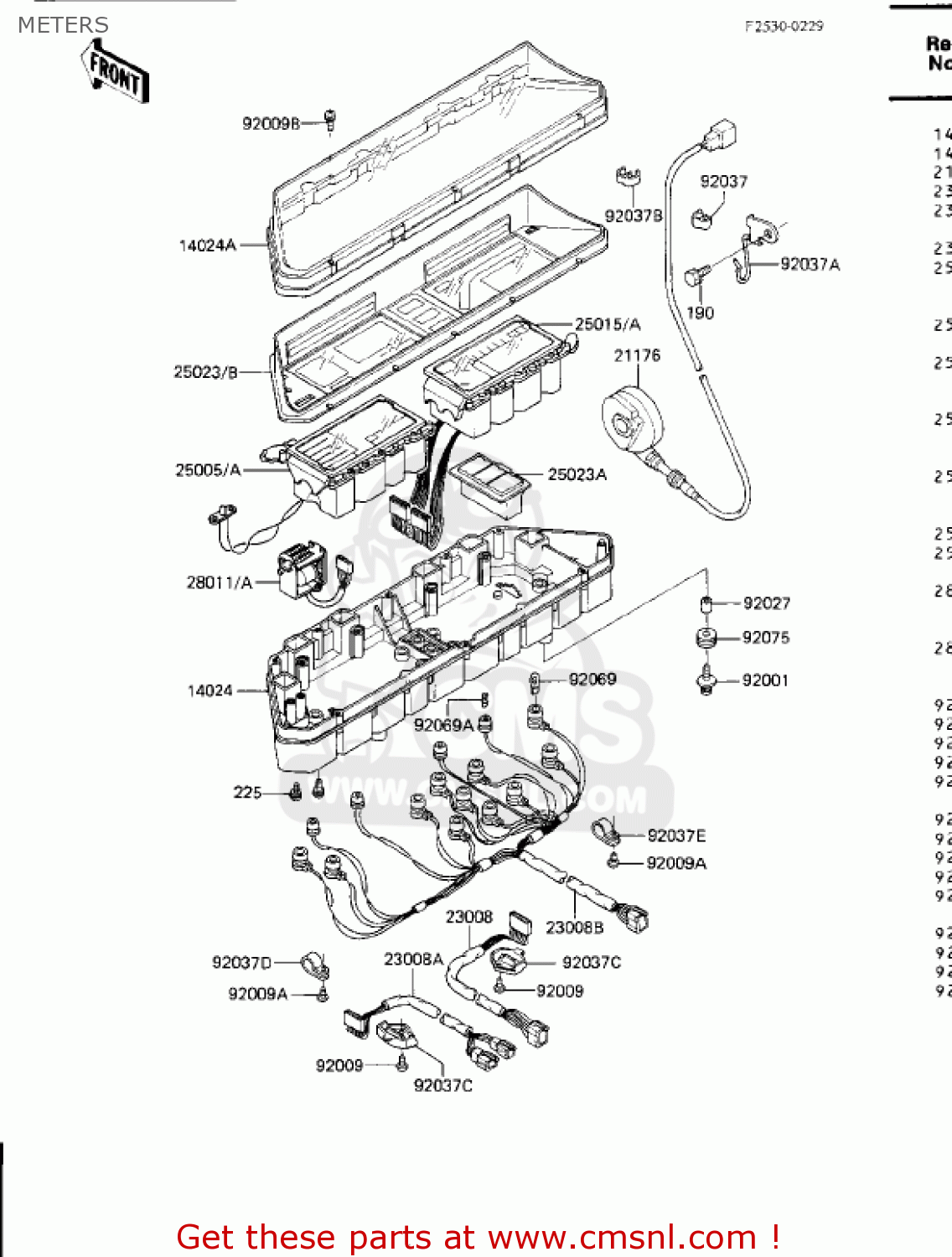

Meters diagram ZN1300A2 VOYAGER 1984 USA CALIFORNIA CANADA

METERS ZN1300A2 VOYAGER 1984 USA CALIFORNIA CANADA
METERS ZN1300A2 VOYAGER 1984 USA CALIFORNIA CANADA
METERS ZN1300A2 VOYAGER 1984 USA CALIFORNIA CANADA
prices are in EUR
ref
part #
description
quantity
14024
140251793
ref: 14024
COVER,METER,LWR
€ 83.50
14024A
140251794
ref: 14024A
COVER,METER,UPP
€ 87.00
21176
211761053
ref: 21176
SENSOR
€ 374.00
23008
230081206
ref: 23008
SOCKET-ASSY,TACHOMETE
€ 34.00
23008A
230081207
ref: 23008A
SOCKET-ASSY,SPEEDOMET
€ 35.50
23008B
230081208
ref: 23008B
SOCKET-ASSY,PILOT LAM
€ 140.50
25005
250051254
ref: 25005
US
SPEEDOMETER,LCD,MPH
€ 755.00
25005
250051254
ref: 25005
CA/US
SPEEDOMETER,LCD,MPH
€ 755.00
25005A
250051255
ref: 25005A
CN
SPEEDOMETER,LCD,KPH
€ 1,442.00
25015
250151203
ref: 25015
US
TACHOMETER,LCD,X1000
€ 891.50
25015
250151203
ref: 25015
CA/US
TACHOMETER,LCD,X1000
€ 891.50
25015A
250151204
ref: 25015A
CN
TACHOMETER,LCD,(X1000
€ 984.00
25023
250231104
ref: 25023
US
METER CASE COVER
250231104
€ 74.00
25023
250231104
ref: 25023
CN/US
METER CASE COVER
250231104
€ 74.00
25023A
250231105
ref: 25023A
COVER-METER CASE,PILO
€ 21.00
25023B
250231106
ref: 25023B
CN
COVER-METER CASE
€ 150.00
28011
280111055
ref: 28011
US
ODOMETER
€ 112.00
28011
280111055
ref: 28011
CN/US
ODOMETER
€ 112.00
28011A
280111056
ref: 28011A
CN
METER,ODO METER
€ 149.00
92001
920021137
ref: 92001
BOLT,6X25
920021137
€ 2.50
92009
920091028
ref: 92009
SCREW,COUNTERSUNK,3X8
920091028
€ 2.00
92009A
920091254
ref: 92009A
SCREW,TAPPING,4X12
920091254
€ 2.50
92009B
920091280
ref: 92009B
SCREW,TAPPING,3X18
€ 2.00
92027
92027162
ref: 92027
COLLAR-REAR FENDER
92027162
€ 4.50
92037
920371249
ref: 92037
CLAMP,HOSE
920371249
€ 3.50
92037A
920371453
ref: 92037A
CLAMP,SPEED CENCER
€ 7.50
92037B
920371458
ref: 92037B
CLAMP,BRAKE HOSE & SE
920371458
€ 4.00
92037C
920371478
ref: 92037C
CLAMP,METER,SOCKET AS
€ 3.50
92037D
920371479
ref: 92037D
CLAMP,METER,SOCKET AS
€ 6.00
92037E
920371480
ref: 92037E
CLAMP,METER,SOCKET AS
€ 3.00
92069
920691007
ref: 92069
BULB,12V3.4W
920691007
€ 2.50
92069A
920691051
ref: 92069A
BULB,12V1.4W T-5
920691051
€ 2.50
92075
92075209
ref: 92075
DAMPER RUBBER
92075209
€ 3.00
190
190C1014
ref: 190
BOLT-UPSET-WS,10X14
€ 1.50
225
225B0410
ref: 225
SCREW-PAN-WSP-CROS
225B0410
€ 2.50
