AUDIO

ZN1300A2 VOYAGER 1984 USA CALIFORNIA CANADA

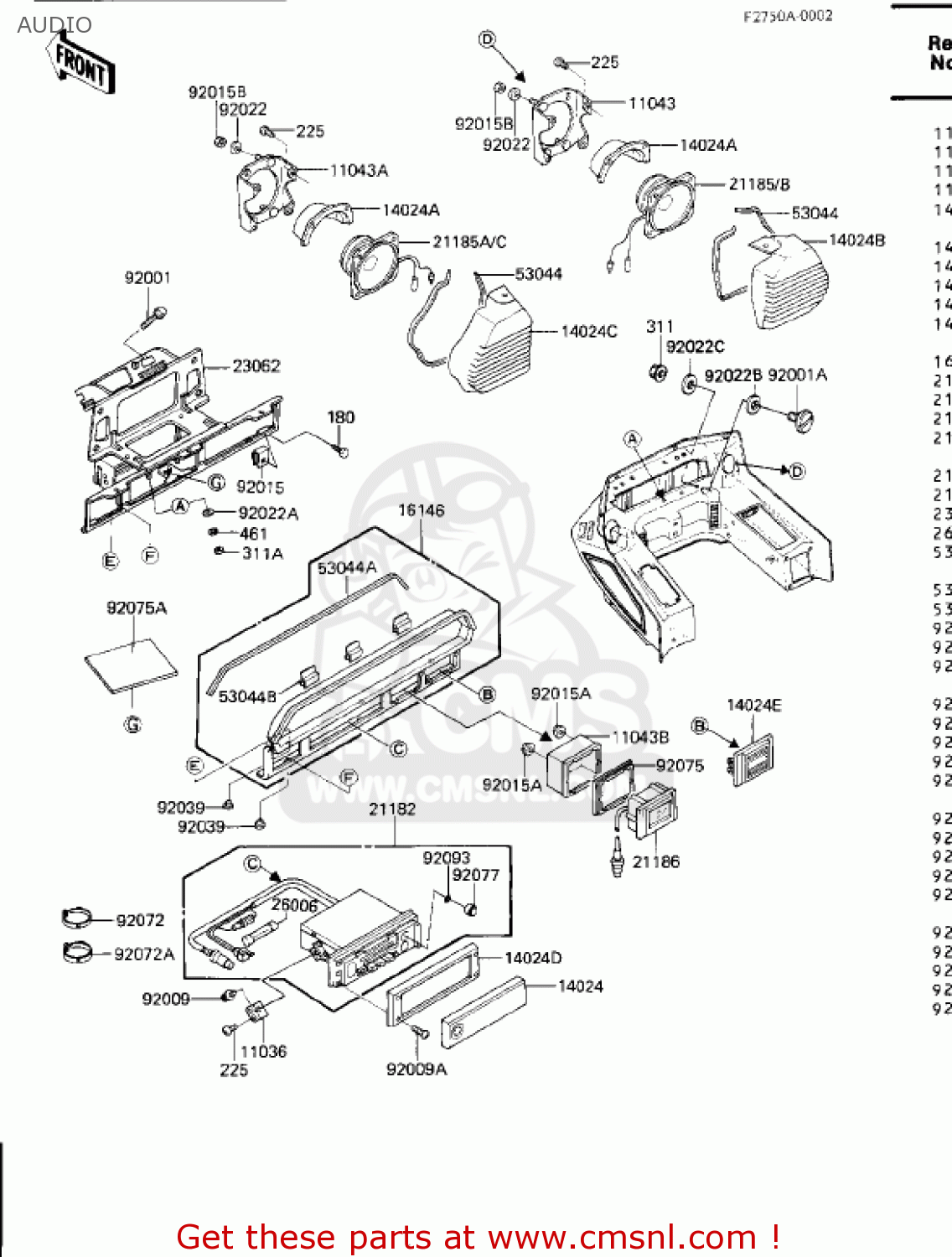

Audio diagram ZN1300A2 VOYAGER 1984 USA CALIFORNIA CANADA

AUDIO ZN1300A2 VOYAGER 1984 USA CALIFORNIA CANADA
AUDIO ZN1300A2 VOYAGER 1984 USA CALIFORNIA CANADA
AUDIO ZN1300A2 VOYAGER 1984 USA CALIFORNIA CANADA
prices are in EUR
ref
part #
description
quantity
11036
110361969
ref: 11036
BRACKET-A,CASETTE DEC
110361969
€ 4.50
11043
110431321
ref: 11043
BRACKET-B,SPEAKER,RH
€ 13.50
11043A
110431322
ref: 11043A
BRACKET-B,SPEAKER,LH
€ 13.50
11043B
110431359
ref: 11043B
BRACKET-B,RADIO IND
€ 12.00
14024
140251685
ref: 14024
COVER,ANTI THEFT
140251685
€ 10.00
14024A
140251686
ref: 14024A
COVER,SPEAKER
€ 4.00
14024B
140251780
ref: 14024B
COVER,SPEAKER,LH
€ 40.00
14024C
140251781
ref: 14024C
COVER,SPEAKER,LH
€ 45.00
14024D
140251789
ref: 14024D
COVER,CASSETTE DECK
€ 10.00
14024E
140251790
ref: 14024E
COVER,CB INDICATOR
€ 4.50
16146
161461054
ref: 16146
COVER-ASSY,METER
€ 66.00
21182
211821051
ref: 21182
CASSETTE DECK
€ 835.00
21185
211851001
ref: 21185
SPEAKER, RH
€ 49.50
21185A
211851051
ref: 21185A
SPEAKER, LH
€ 49.50
21185B
211851053
ref: 21185B
SPEAKER,RH
€ 25.50
21185C
211851054
ref: 21185C
SPEAKER,LH
€ 25.50
21186
211861051
ref: 21186
IND-DIGITAL,RADIO-T
€ 256.00
23062
230621034
ref: 23062
BRACKET-COMP,CASETTE
€ 75.50
26006
260061001
ref: 26006
FUSE,2A L=30M/M
260061001
€ 2.00
53044
530441112
ref: 53044
TRIM
530441112
€ 8.00
53044A
530441116
ref: 53044A
TRIM,METER COVER
€ 12.50
53044B
530441118
ref: 53044B
TRIM,METER COVER
€ 3.00
92001
920011764
ref: 92001
BOLT,W/SP,6X18
920011764
€ 2.00
92001A
920011879
ref: 92001A
BOLT, SPEAKER SWITCH
€ 5.50
92009
920091259
ref: 92009
SCREW,PAN-CROS,W.WASH
920091259
€ 2.50
92009A
920091268
ref: 92009A
SCREW,SOCKET,5X8
920091268
€ 1.00
92015
920151248
ref: 92015
NUT,CASETTE DECK
€ 7.00
92015A
920151319
ref: 92015A
NUT,FLANGED,4MM
€ 9.00
92015B
92016062
ref: 92015B
NUT,6MM
92016062
€ 3.00
92022
92022125
ref: 92022
WASHER,6.5X20X1.6
92022125
€ 1.00
92022A
920221346
ref: 92022A
WASHER,6.5X20X1.6,BLA
920221346
€ 0.50
92022B
920221515
ref: 92022B
WASHER,12.3X22X1.6
€ 2.50
92022C
92022228
ref: 92022C
WASHER-PLAIN,7MM
92022228
€ 2.50
92039
920391041
ref: 92039
RIVET
920391041
€ 2.50
92072
92072031
ref: 92072
BAND,MIDDLE
92072031
€ 3.00
92072A
92072032
ref: 92072A
BAND,LONG
92072032
€ 3.00
92075
920751577
ref: 92075
DAMPER,IND-DIGITAL
€ 5.50
92075A
920751607
ref: 92075A
DAMPER,CASETTE
€ 6.50
92077
920771053
ref: 92077
KNOB,CASSETTE DECK
920771053
€ 5.50
92093
920931155
ref: 92093
SEAL,CASSETTE DECK
€ 1.00
180
180C0618
ref: 180
BOLT-UPSET-WS
€ 2.00
225
225B0410
ref: 225
SCREW-PAN-WSP-CROS
225B0410
€ 2.50
311
311B0600
ref: 311
NUT,6MM
311B0600
€ 0.50
311A
311C0600
ref: 311A
NUT-HEX,6MM,BLACK
311C0600
€ 0.50
461
461K0600
ref: 461
WASHER-SPRING
461K0600
€ 0.50
