CYLINDER/PISTONS

ZN1300A2 VOYAGER 1984 USA CALIFORNIA CANADA

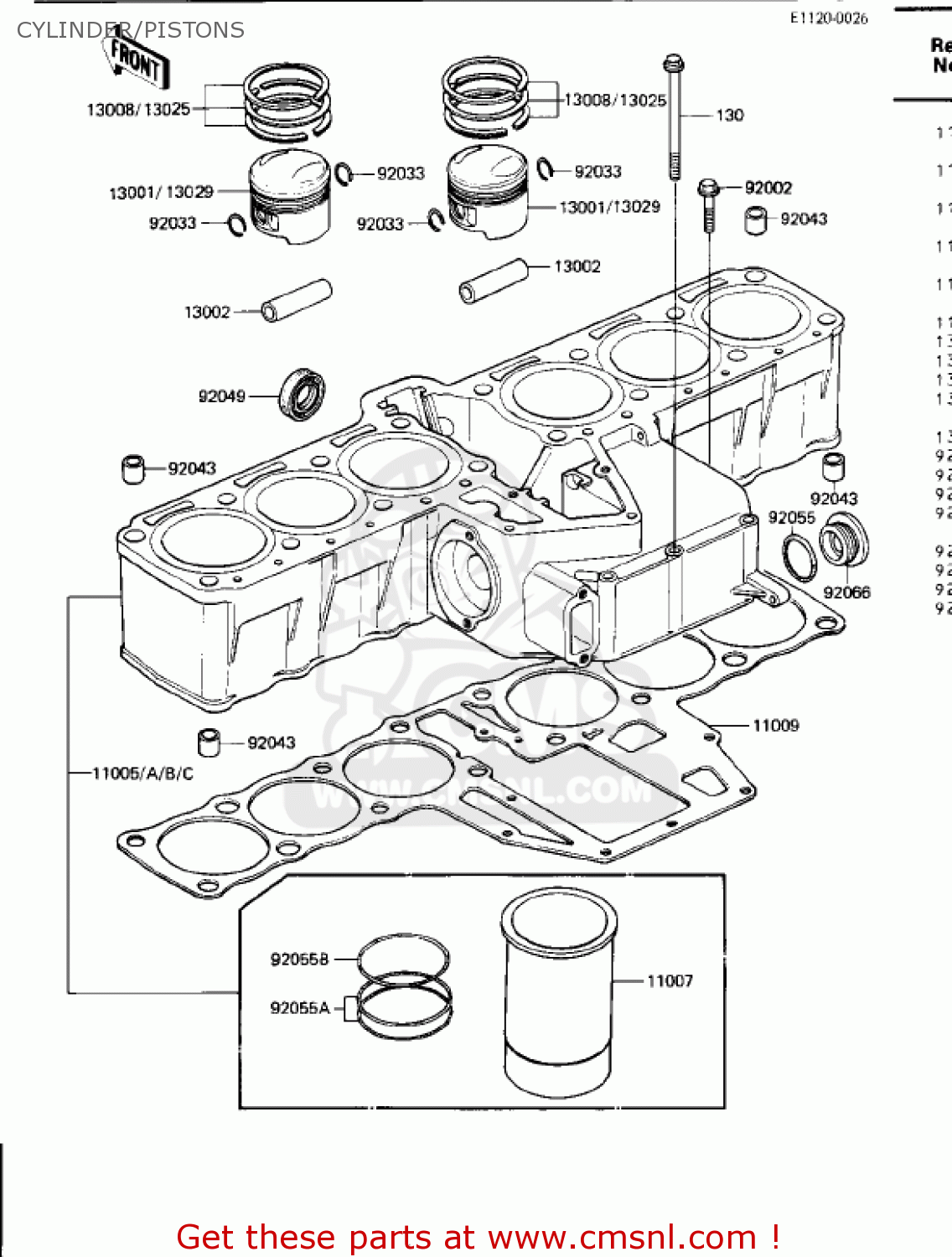

Cylinder/pistons diagram ZN1300A2 VOYAGER 1984 USA CALIFORNIA CANADA

CYLINDER/PISTONS ZN1300A2 VOYAGER 1984 USA CALIFORNIA CANADA
CYLINDER/PISTONS ZN1300A2 VOYAGER 1984 USA CALIFORNIA CANADA
CYLINDER/PISTONS ZN1300A2 VOYAGER 1984 USA CALIFORNIA CANADA
prices are in EUR
ref
part #
description
quantity
11005
110051104
ref: 11005
CN,US
CYLINDER-ENGINE
€ 1,628.50
11005A
110051376
ref: 11005A
CA
ENGINE CYLINDER
€ 1,000.50
11005B
110051403
ref: 11005B
CN,US
CYLINDER-ENGINE
€ 1,212.50
11005C
110051405
ref: 11005C
CA
CYLINDER-ENGINE
€ 1,212.50
11007
110071006
ref: 11007
LINER-CYLINDER
110071006
€ 93.50
11009
110091101
ref: 11009
GASKET,CYLINDER BASE (MCA)
110091101
€ 35.50
13001
130011120
ref: 13001
PISTON-ENGINE,STD
€ 53.50
13002
13002032
ref: 13002
PIN-PISTON
13002032
€ 14.50
13008
130085059
ref: 13008
RING-SET-PISTON,STD
130085059
€ 65.00
13025
130255025
ref: 13025
RING-SET-PISTON L,O/S
130255025
€ 87.00
13029
130291053
ref: 13029
PISTON-ENGINE L,O/S,0
€ 63.00
92002
920021105
ref: 92002
BOLT, 6X28
920021105
€ 3.50
92033
92036005
ref: 92033
CIRCLIP-PISTON PIN
92036005
€ 2.50
92043
920431266
ref: 92043
PIN,11X14X12.3
920431266
€ 1.00
92049
920491028
ref: 92049
OIL SEAL,TC17317
920491028
€ 8.00
92055
92055091
ref: 92055
0 RING
92055091
€ 4.00
92055A
920551032
ref: 92055A
RING-O,67MM
920551032
€ 7.50
92055B
920551035
ref: 92055B
RING-O,67.5MM
920551035
€ 8.50
92066
92067024
ref: 92066
PLUG,RELEASE
92067024
€ 7.50
130
130Y0685
ref: 130
BOLT-FLANGED
€ 2.50
