CYLINDER HEAD

ZN1300A2 VOYAGER 1984 USA CALIFORNIA CANADA

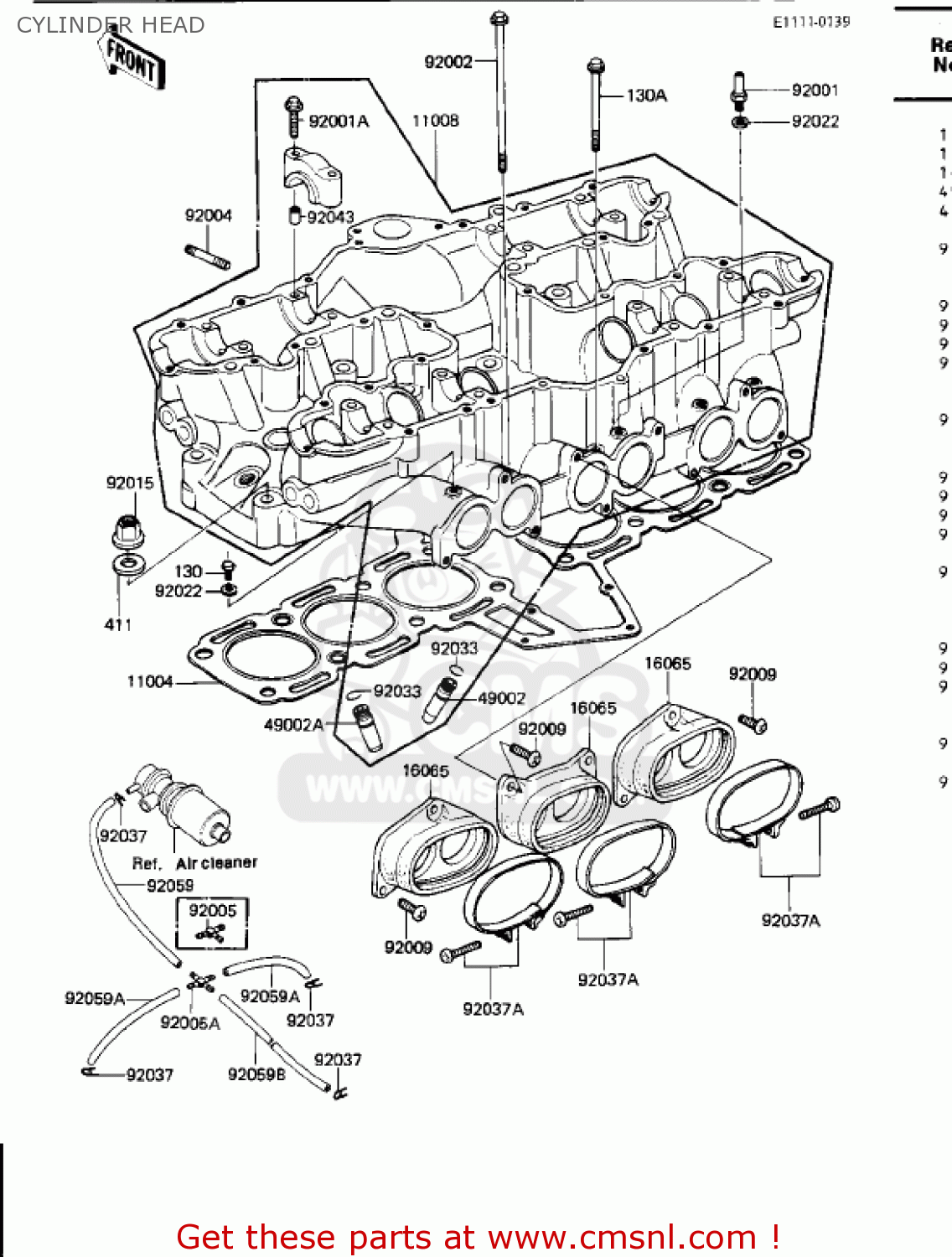

Cylinder head diagram ZN1300A2 VOYAGER 1984 USA CALIFORNIA CANADA

CYLINDER HEAD ZN1300A2 VOYAGER 1984 USA CALIFORNIA CANADA
CYLINDER HEAD ZN1300A2 VOYAGER 1984 USA CALIFORNIA CANADA
CYLINDER HEAD ZN1300A2 VOYAGER 1984 USA CALIFORNIA CANADA
prices are in EUR
ref
part #
description
quantity
11004
110041014
ref: 11004
GASKET,HEAD,CYLINDER (MCA)
110041014
€ 206.00
11008
110081072
ref: 11008
HEAD-COMP-CYLINDER
€ 2,169.00
16065
160651016
ref: 16065
HOLDER-CARBURETOR
160651016
€ 43.50
49002
12013009
ref: 49002
GUIDE-VALVE,INTAKE
12013009
€ 18.00
49002A
490021002
ref: 49002A
GUIDE,EXHAUST VALVE
490021002
€ 16.00
92001
920011143
ref: 92001
CN,US
BOLT,VACUUM
920011143
€ 3.50
92001A
92003092
ref: 92001A
BOLT-HEX HEAD,6X45
92003092
€ 4.50
92002
920021273
ref: 92002
BOLT,6X161
€ 6.50
92004
920041128
ref: 92004
STUD,6X30
920041128
€ 3.50
92005
920051017
ref: 92005
FITTING,TUBE
920051017
€ 6.50
92005A
920051051
ref: 92005A
US
FITTING,TUBE,X-TYPE
920051051
€ 8.00
92009
920091334
ref: 92009
SCREW,6X16
€ 2.00
92015
92015076
ref: 92015
NUT,FLANGED CAP,10MM
92015076
€ 9.00
92022
92022077
ref: 92022
WASHER,6.1X12X1
92022077
€ 0.50
92033
92036023
ref: 92033
CIRCLIP,VALVE GUIDE
92036023
€ 0.50
92037
92037072
ref: 92037
CN
CLAMP,TUBE
92037072
€ 4.00
92037A
920371119
ref: 92037A
CLAMP,CARBURETOR HOLD
€ 13.50
92043
92042007
ref: 92043
PIN-DOWEL
92042007
€ 4.00
92059
920591162
ref: 92059
US
TUBE, VACUUM, LONG
920591162
€ 12.50
92059A
920591058
ref: 92059A
TUBE,4X9X100
€ 12.50
92059B
920591262
ref: 92059B
TUBE,4X9X340
€ 7.00
130
130N0608
ref: 130
CA
BOLT,FLANGED,6X8
130N0608
€ 2.00
130
130N0608
ref: 130
CA
BOLT,FLANGED,6X8
130N0608
€ 2.00
130A
130Y0665
ref: 130A
BOLT-FLANGED
€ 3.00
411
411B1000
ref: 411
WASHER-PLAIN,10MM
411B1000
€ 0.50
