Genuine ZN Kawasaki Parts delivered quickly!


AIR PUMP/SHOCK ABSORBERS

ZN1300A2 VOYAGER 1984 USA CALIFORNIA CANADA

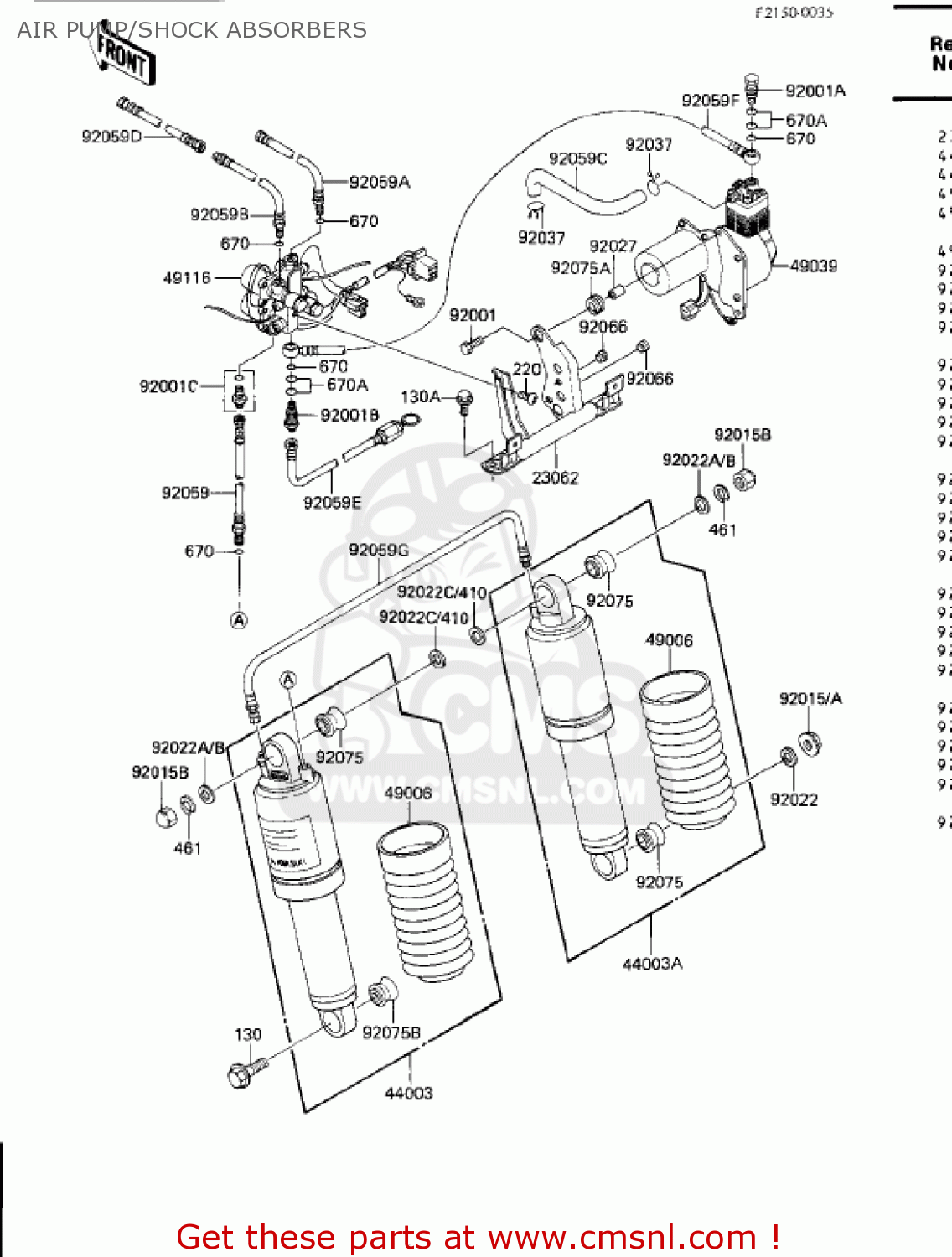

Air pump/shock absorbers diagram ZN1300A2 VOYAGER 1984 USA CALIFORNIA CANADA

AIR PUMP/SHOCK ABSORBERS ZN1300A2 VOYAGER 1984 USA CALIFORNIA CANADA
AIR PUMP/SHOCK ABSORBERS ZN1300A2 VOYAGER 1984 USA CALIFORNIA CANADA
AIR PUMP/SHOCK ABSORBERS ZN1300A2 VOYAGER 1984 USA CALIFORNIA CANADA
prices are in EUR
ref
part #
description
quantity
23062
230621055
ref: 23062
BRACKET-COMP,AIR PUMP
€ 25.00
44003
440031473
ref: 44003
DAMPER-ASSY,LH
€ 454.00
44003A
440031474
ref: 44003A
DAMPER-ASSY,RH
€ 454.00
49006
490061158
ref: 49006
BOOT,SHOCKABSORBER
€ 34.00
49039
490391051
ref: 49039
PUMP-AIR
€ 566.50
49116
491161053
ref: 49116
VALVE-ASSY,AIR PUMP
491161053
€ 505.00
92001
920011826
ref: 92001
BOLT,6X20
920011826
€ 2.50
92001A
920011876
ref: 92001A
BOLT,AIR PUMP
€ 9.50
92001B
920011877
ref: 92001B
BOLT,VALVE
€ 13.00
92001C
920011878
ref: 92001C
BOLT,NIPPLE
€ 13.00
92015
920151234
ref: 92015
NUT,FLANGED,10MM
€ 3.00
92015A
920151415
ref: 92015A
NUT,10MM
920151415
€ 3.00
92015B
92020014
ref: 92015B
NUT,CAP,12MM
92020014
€ 6.50
92022
920221193
ref: 92022
WASHER,10.5X30X2.3
€ 4.50
92022A
920221196
ref: 92022A
WASHER,12.4X28X4.5
920221196
€ 3.00
92022B
920221303
ref: 92022B
WASHER,12.4X28X2.3,BL
€ 3.00
92022C
410B1400
ref: 92022C
410B1400
92027
92027129
ref: 92027
COLLAR,6.8X10X8.5
92027129
€ 3.00
92037
920371468
ref: 92037
CLAMP
€ 4.00
92059
920591286
ref: 92059
TUBE,AIR,RR,L=579.8
€ 44.00
92059A
920591287
ref: 92059A
TUBE,AIR,FR,L=1100
920591287
€ 56.50
92059B
920591288
ref: 92059B
TUBE,AIR GAUGE,L=1900
€ 54.00
92059C
920591373
ref: 92059C
TUBE
€ 18.00
92059D
920591374
ref: 92059D
TUBE
€ 34.00
92059E
920591384
ref: 92059E
TUBE
€ 140.00
92059F
920591385
ref: 92059F
TUBE,L=200
€ 50.00
92059G
920591386
ref: 92059G
TUBE,SHOCKABSORBER
€ 74.50
92066
92074028
ref: 92066
PLUG,RUBBER
92074028
€ 2.50
92075
920751141
ref: 92075
BUSHING,SHOCK ABSORBE
920751141
€ 10.00
92075A
920751409
ref: 92075A
DAMPER
€ 4.00
92075B
920751586
ref: 92075B
DAMPER,SHOCKABSORBER
920751586
€ 10.50
130
130B1035
ref: 130
BOLT-FLANGED,10X35
€ 2.50
130A
130J0660
ref: 130A
BOLT-FLANGED,6X60
€ 2.50
220
220C0610
ref: 220
SCREW-PAN-CROS,6X10
220C0610
€ 1.00
410
410B1400
ref: 410
410B1400
461
461F1200
ref: 461
WASHER-SPRING,12MM
461F1200
€ 0.50
670
670B1506
ref: 670
O RING,6MM
670B1506
€ 1.00
670A
670B1508
ref: 670A
O RING,8MM
670B1508
€ 1.00
