TURN SIGNALS
Z305A3A CSR 1988 EUROPE

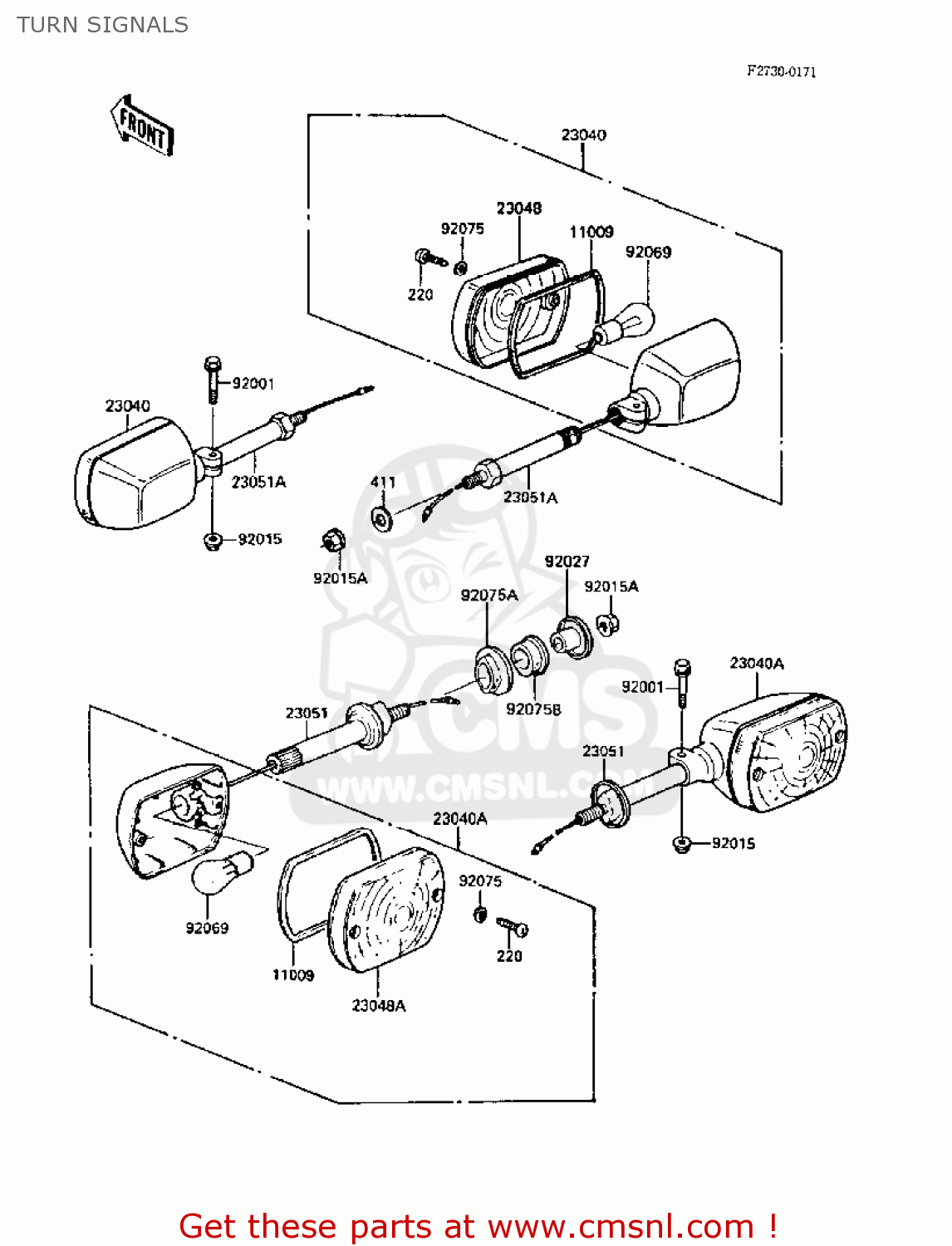

Turn signals diagram Z305A3A CSR 1988 EUROPE
TURN SIGNALS Z305A3A CSR 1988 EUROPE
×
prices are in EUR
ref
part #
description
quantity
220
220B0412
ref: 220
SCREW-PAN CROS 4X12
€ 0.50
411
411D1000
ref: 411
WASHER-PLAIN,10MM
€ 3.00
11009
110091052
ref: 11009
GASKET,SIGNAL LAMP (NAS)
€ 2.50
23040
230401037
ref: 23040
LAMP-SIGNAL
€ 45.00
23040A
230401038
ref: 23040A
LAMP-SIGNAL
€ 43.50
23048
230481022
ref: 23048
LENS-SIGNAL LAMP,045-
€ 13.50
23048A
230481023
ref: 23048A
LENS-SIGNAL LAMP,045-
€ 10.00
23051
230511014
ref: 23051
BRACKET-SIGNAL LAMP
€ 29.00
23051A
230511032
ref: 23051A
BRACKET-SIGNAL LAMP
€ 25.00
92001
920011746
ref: 92001
BOLT,6X30,CR PLATED
€ 1.00
92015
920151193
ref: 92015
NUT,FLANGED,6MM
€ 0.50
92015A
920151428
ref: 92015A
NUT,FLANGED,10MM
€ 3.00
92027
92027147
ref: 92027
COLLAR
€ 9.00
92069
ref: 92069
92075
23058002
ref: 92075
WASHER,PLAIN,4MM
€ 2.00
92075A
92075128
ref: 92075A
DAMPER,LAMP
€ 3.50
92075B
92075158
ref: 92075B
DAMPER
€ 3.50
