ENGINE COVER(S)
Z305A3A CSR 1988 EUROPE

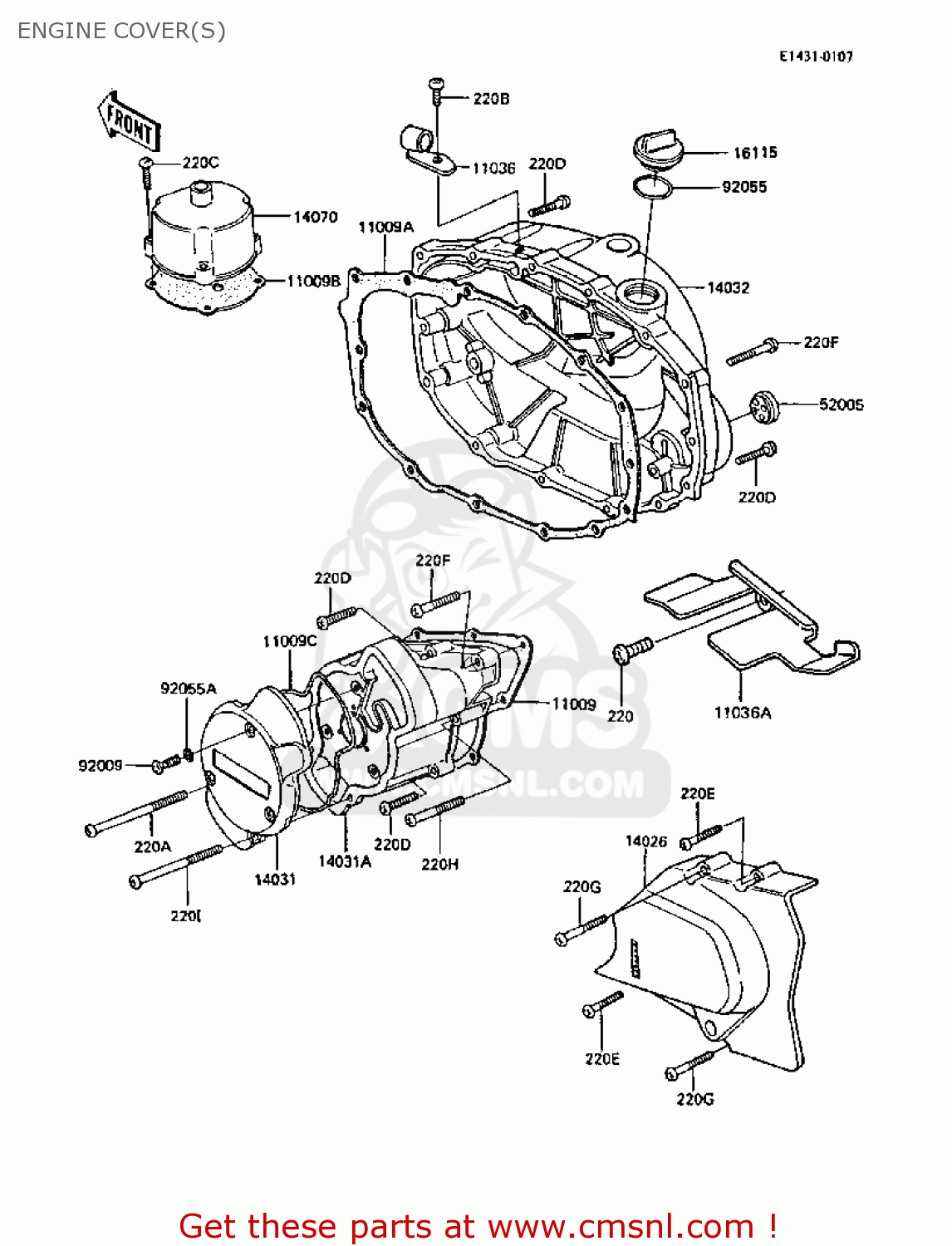

Engine cover(s) diagram Z305A3A CSR 1988 EUROPE
ENGINE COVER(S) Z305A3A CSR 1988 EUROPE
×
prices are in EUR
ref
part #
description
quantity
220
220B0614
ref: 220
SCREW-PAN HEAD,6X14
€ 2.00
220A
220X06100
ref: 220A
SCREW-PAN-CROS
€ 2.50
220B
220X0612
ref: 220B
SCREW-PAN-CROS
€ 2.50
220C
220X0625
ref: 220C
SCREW-PAN-CROS
€ 2.50
220D
220X0630
ref: 220D
SCREW-PAN-CROS
€ 2.00
220E
220X0635
ref: 220E
SCREW-PAN-CROS
€ 2.50
220F
220X0640
ref: 220F
SCREW-PAN-CROS
€ 2.50
220G
220X0645
ref: 220G
SCREW-PAN-CROS
€ 2.50
220H
220X0655
ref: 220H
SCREW-PAN-CROS
€ 3.00
220I
220X0690
ref: 220I
SCREW-PAN-CROS
€ 2.50
11009
110091070
ref: 11009
GASKET,GENERATOR COV (MCA)
€ 6.00
11009A
110091071
ref: 11009A
GASKET,CLUTCH COVER (MCA)
€ 24.00
11009B
110091239
ref: 11009B
GASKET,BREATHER BODY (MCA)
€ 3.00
11009C
110091309
ref: 11009C
GASKET,GENERATOR COVE (NAS)
€ 5.50
11036
110361124
ref: 11036
BRACKET-A,CLUTCH CABL
€ 3.00
11036A
110361862
ref: 11036A
BRACKET-A,HARNESS
€ 8.00
14026
140261102
ref: 14026
COVER-CHAIN
€ 101.50
14031
140311101
ref: 14031
COVER-GENERATOR,B
€ 35.50
14031A
140311112
ref: 14031A
COVER-GENERATOR,A
€ 125.00
14032
140321070
ref: 14032
COVER-CLUTCH
€ 141.50
14070
140701002
ref: 14070
BODY-BREATHER
€ 32.50
16115
161151009
ref: 16115
CAP-OIL FILLER
€ 10.00
52005
520051009
ref: 52005
GAUGE,OIL LEVEL
€ 12.00
92009
920091013
ref: 92009
SCREW,PAN HEAD, 6X20
€ 2.00
92055
92055049
ref: 92055
'0'RING,31MM
€ 2.50
92055A
92055109
ref: 92055A
RING-O,5.28X1.78
€ 2.50
