STARTER MOTOR
Z305A3A CSR 1988 EUROPE

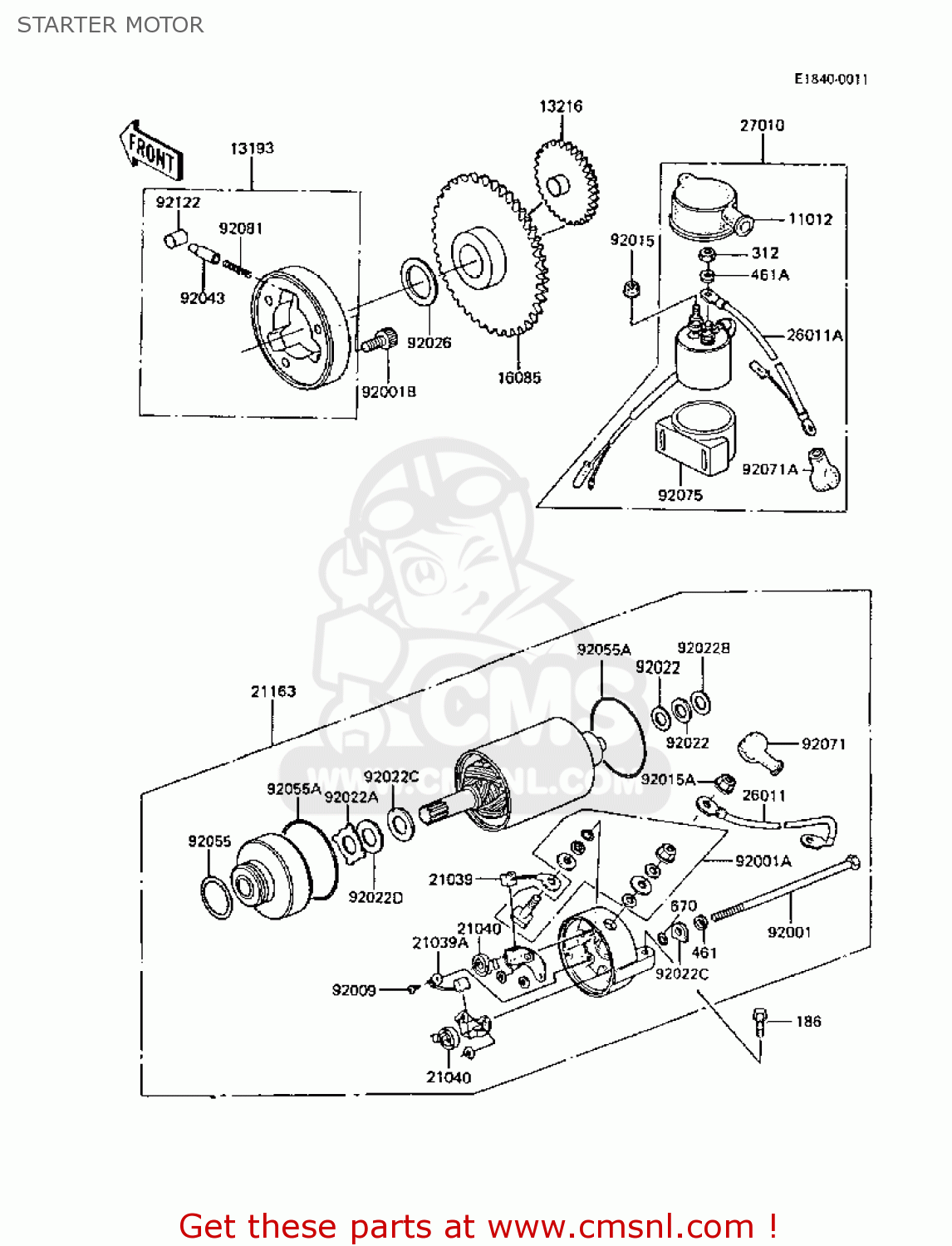

Starter motor diagram Z305A3A CSR 1988 EUROPE
STARTER MOTOR Z305A3A CSR 1988 EUROPE
×
prices are in EUR
ref
part #
description
quantity
186
186B0620
ref: 186
BOLT-UPSET-WP
€ 1.50
312
312B0600
ref: 312
NUT,6MM
€ 0.50
461
461F0500
ref: 461
WASHER-SPRING,5MM
€ 0.50
461A
461F0600
ref: 461A
WASHER-SPRING,6MM
€ 0.50
670
670B1505
ref: 670
O RING,5MM
€ 1.00
11012
21141004
ref: 11012
COVER,MAG SWITCH
€ 8.50
13193
131931002
ref: 13193
CLUTCH-ASSY-ONEWAY
€ 96.00
13216
132161009
ref: 13216
GEAR-ASSY,STARTER,IDL
€ 79.00
16085
160851032
ref: 16085
GEAR-COMP,ONEWAY
€ 93.00
21039
210391001
ref: 21039
BRUSH,CARBON(+)
€ 21.50
21039A
210391002
ref: 21039A
BRUSH,CARBON(-)
€ 15.50
21040
210401001
ref: 21040
SPRING-BRUSH
€ 4.50
21163
211631131
ref: 21163
STARTER-ELECTRIC
€ 369.50
26011
260111049
ref: 26011
WIRE-LEAD,STARTER MOT
€ 22.50
26011A
260111128
ref: 26011A
WIRE-LEAD,MAGNETIC SW
€ 36.00
27010
270101050
ref: 27010
SWITCH,MAGNETIC
€ 88.50
92001
920011156
ref: 92001
BOLT,PAN HEAD,5X108.5
€ 3.50
92001A
920011204
ref: 92001A
BOLT ASSY,STARTER MOT
€ 13.00
92001B
920011424
ref: 92001B
BOLT,SOCKET,8X10
€ 3.00
92009
920091058
ref: 92009
SCREW,TAPPING,3.5X8
€ 2.00
92015
920151193
ref: 92015
NUT,FLANGED,6MM
€ 0.50
92015A
920151476
ref: 92015A
NUT,6MM
€ 2.50
92022
21025011
ref: 92022
WASHER, THRUST, 0.2T
€ 4.00
92022A
920221130
ref: 92022A
WASHER,THRUST SUPPORT
€ 4.00
92022B
920221132
ref: 92022B
WASHER,9.1X18X0.8
€ 4.00
92022C
920221133
ref: 92022C
WASHER,LOCK,T=3.2
€ 2.00
92022D
920221714
ref: 92022D
WASHER,22X12.2X0.5
€ 2.50
92026
92026092
ref: 92026
SPACER,22X35.5X1.0
€ 8.50
92043
92043132
ref: 92043
PIN
€ 4.00
92055
920551303
ref: 92055
RING-O
€ 7.50
92055A
920551418
ref: 92055A
RING-O
€ 7.50
92071
21017017
ref: 92071
GROMMET-CORD
€ 6.50
92071A
21017023
ref: 92071A
GROMMET,MAGNETIC SWIT
€ 12.00
92075
21064002
ref: 92075
DAMPER,MAGNETIC SWITC
€ 13.50
92081
92081159
ref: 92081
SPRING, COIL
€ 2.50
92122
92122006
ref: 92122
ROLLER
€ 4.00
