FRONT FORK
Z305A3A CSR 1988 EUROPE

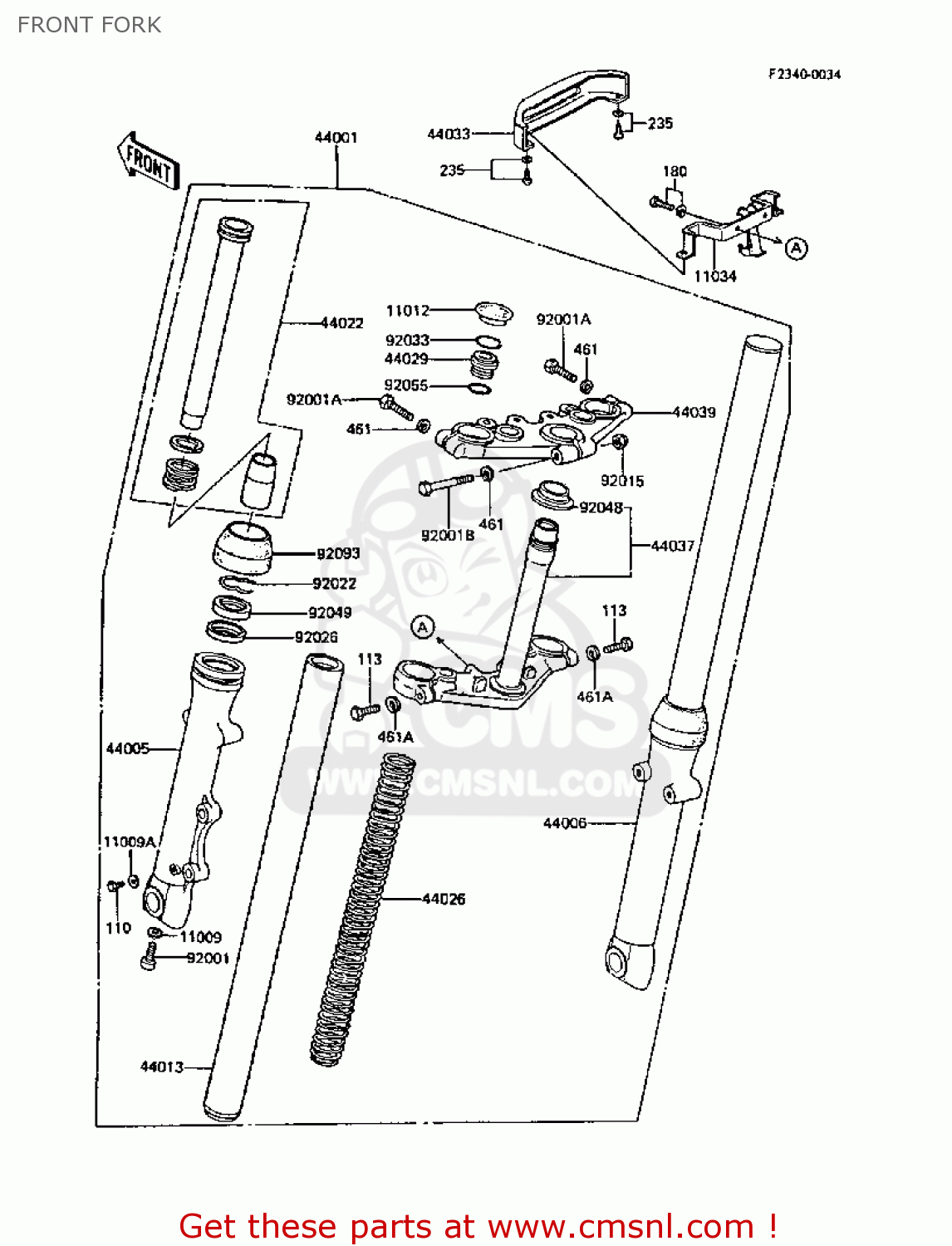

Front fork diagram Z305A3A CSR 1988 EUROPE
FRONT FORK Z305A3A CSR 1988 EUROPE
×
prices are in EUR
ref
part #
description
quantity
110
110B0608
ref: 110
BOLT-HEX HEAD,6X8
€ 0.50
113
113B1035
ref: 113
BOLT-HEX HEAD,10X35
€ 3.50
180
180B0612
ref: 180
BOLT-UPSET-WS,6X12
€ 2.50
235
235B0410
ref: 235
SCREW-PAN-WP-CROS
€ 2.00
461
461F0800
ref: 461
WASHER-SPRING,8MM
€ 0.50
461A
461F1000
ref: 461A
WASHER-SPRING,10MM
€ 0.50
11009
44045051
ref: 11009
GASKET,FORK CYLINDER (NAS)
€ 4.00
11009A
44045052
ref: 11009A
GASKET,DRAIN PLUG (NAS)
€ 6.00
11012
110121021
ref: 11012
CAP,RUBBER,FORK TOP
€ 6.00
11034
110341758
ref: 11034
BRACKET,FORK COVER
€ 17.00
44001
440011400
ref: 44001
FORK-FRONT
€ 1,569.50
44005
440051109
ref: 44005
PIPE-LEFT FORK OUTER
€ 176.00
44006
440061109
ref: 44006
PIPE-RIGHT FORK OUTER
€ 197.50
44013
440131025
ref: 44013
PIPE-FORK INNER
€ 124.00
44022
440221048
ref: 44022
CYLINDER-FORK
€ 69.00
44026
440261102
ref: 44026
SPRING-FRONT FORK
€ 38.00
44029
44029022
ref: 44029
GUIDE, FORK SPRING
€ 8.00
44033
440331062
ref: 44033
COVER-FORK
€ 20.00
44037
440371014
ref: 44037
STEM,STEERING
€ 267.00
44039
440391012
ref: 44039
HOLDER-FORK UPPER
€ 128.00
92001
44041078
ref: 92001
BOLT, FORK CYLINDER
€ 6.50
92001A
920011739
ref: 92001A
BOLT,8X40
€ 3.50
92001B
920011740
ref: 92001B
BOLT,8X55
€ 5.50
92015
920151235
ref: 92015
NUT,8MM
€ 3.00
92022
44043057
ref: 92022
RING,OIL SEAL STOPER
€ 4.00
92026
920261119
ref: 92026
SPACER,FORK
€ 6.50
92033
44044023
ref: 92033
CIRCLIP
€ 3.50
92048
92047006
ref: 92048
CONE-STRNG STEM
€ 11.00
92049
920491077
ref: 92049
OIL SEAL,FORK
€ 13.50
92055
44046025
ref: 92055
'O' RING, FORK
€ 4.00
92093
920931063
ref: 92093
SEAL,FORK
€ 19.50
