CYLINDER/PISTON(S)

Z305A3A CSR 1988 EUROPE

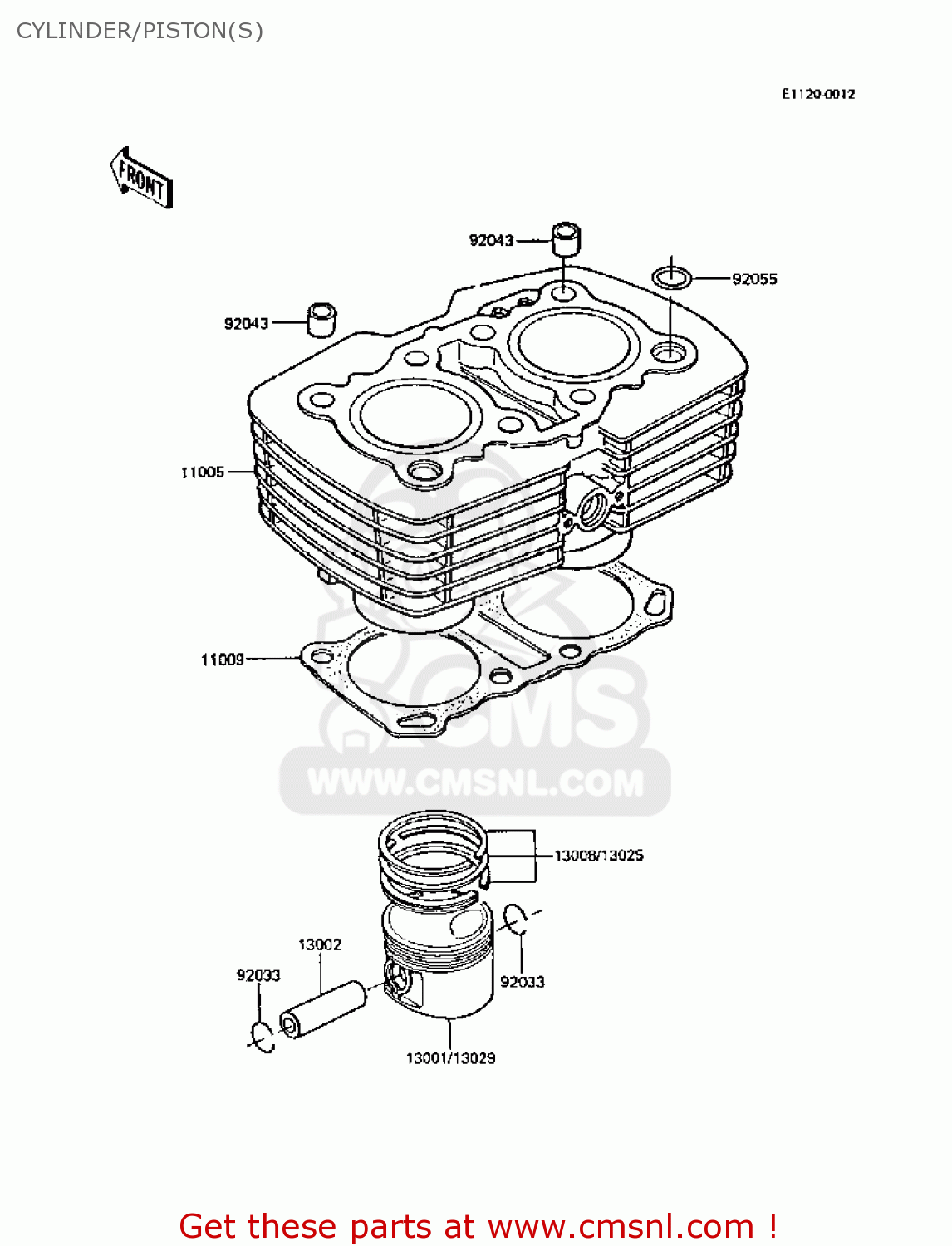

Cylinder/piston(s) diagram Z305A3A CSR 1988 EUROPE

prices are in EUR

ref

part #

description

quantity

11005

110051159
ref: 11005

CYLINDER-ENGINE,SILVE

€ 411.00

11009

110601217
ref: 11009

GASKET,GENERATOR (MCA)

€ 10.00

13001

130011279
ref: 13001

PISTON-ENGINE,STD

€ 55.50

13002

130021051
ref: 13002

PIN-PISTON

€ 17.00

13008

130081008
ref: 13008

RING-SET-PISTON,STD

€ 39.50

13025

130251007
ref: 13025

RING-SET-PISTON L,O/S

€ 46.50

13029

130291174
ref: 13029

PISTON-ENGINE L,O/S 0

€ 63.00

92033

920331151
ref: 92033

RING-SNAP,PISTON PIN

€ 2.50

92043

920431265
ref: 92043

PIN,9.2X12X14

€ 4.50

92055

920551150
ref: 92055

O-RING, 10MM

€ 5.50
