METER(S)
Z305A3A CSR 1988 EUROPE

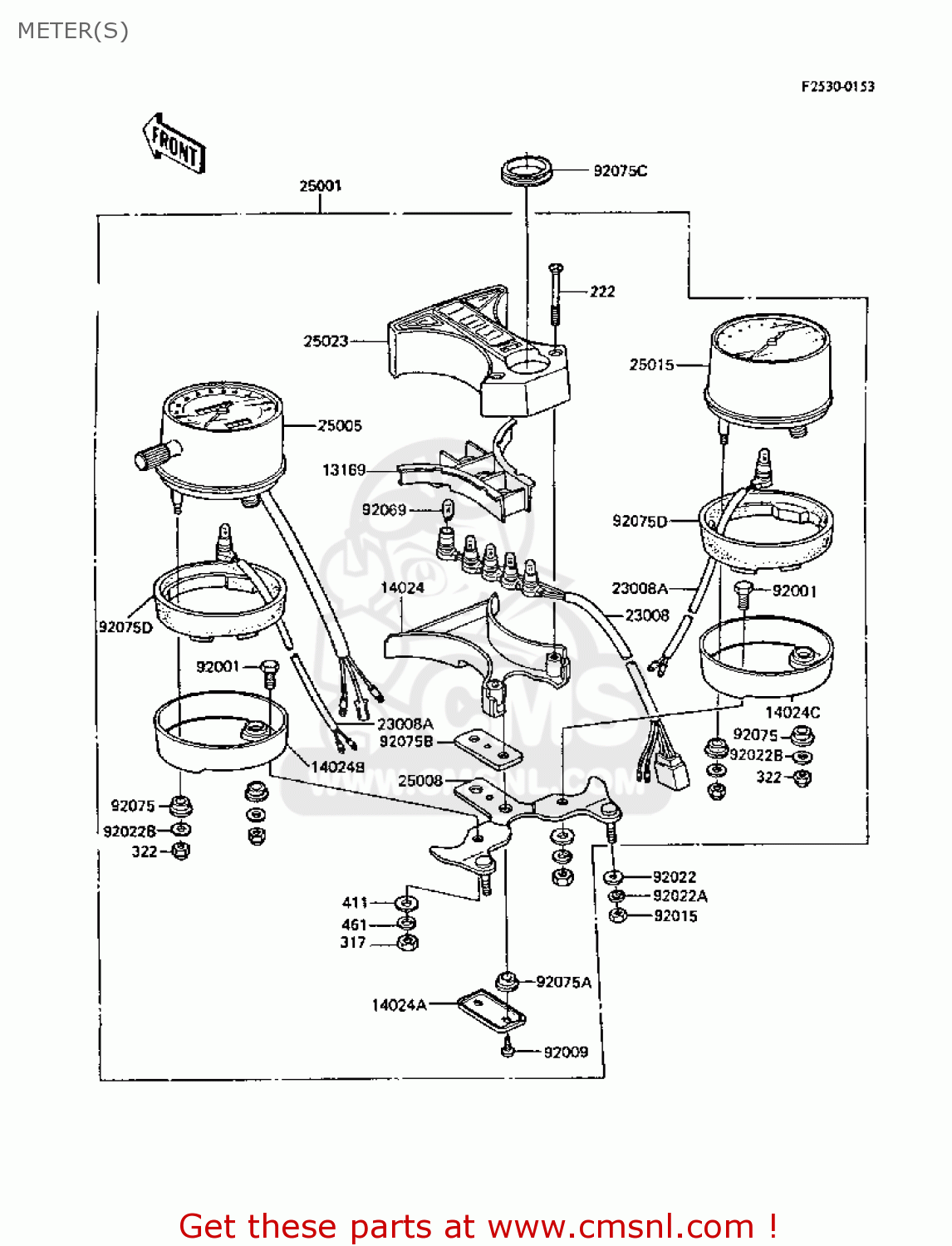

Meter(s) diagram Z305A3A CSR 1988 EUROPE
METER(S) Z305A3A CSR 1988 EUROPE
×
prices are in EUR
ref
part #
description
quantity
222
222C0445
ref: 222
SCREW-CSK-RD-CROS,4X4
€ 2.00
317
317B0800
ref: 317
NUT,8M/M
€ 0.50
322
322N0500
ref: 322
NUT-CAP,5MM
€ 2.00
411
411B0800
ref: 411
WASHER-PLAIN,8MM
€ 0.50
461
461F0800
ref: 461
WASHER-SPRING,8MM
€ 0.50
13169
131691133
ref: 13169
PLATE,SOCKET
€ 3.50
14024
140251093
ref: 14024
COVER,PILOT BOX,LWR
€ 15.00
14024A
140251096
ref: 14024A
COVER,PILOT BOX,DAMPE
€ 3.50
14024B
140251322
ref: 14024B
COVER,SPEEDOMETER,CR-
€ 25.50
14024C
140251323
ref: 14024C
COVER,TACHOMETER,CR-P
€ 25.50
23008
230081119
ref: 23008
SOCKET-ASSY,PILOT BOX
€ 26.00
23008A
230081158
ref: 23008A
SOCKET-ASSY,METER
€ 13.50
25001
250011726
ref: 25001
METER-ASSY,KPH
€ 770.50
25005
250051041
ref: 25005
SPEEDOMETER,KPH
€ 176.00
25008
250081021
ref: 25008
BRACKET-METER
€ 38.50
25015
250151036
ref: 25015
TACHOMETER,SI
€ 185.00
25023
250231008
ref: 25023
COVER,PILOT BOX,UPP
€ 26.50
92001
920011154
ref: 92001
BOLT,METER
€ 2.00
92009
920091040
ref: 92009
SCREW,TAPPING,4X10
€ 2.50
92015
920151391
ref: 92015
NUT,6MM
€ 2.00
92022
920221544
ref: 92022
WASHER,6.5X13X1
€ 2.50
92022A
920221580
ref: 92022A
WASHER,SPRING,6MM
€ 0.50
92022B
92022285
ref: 92022B
WASHER,5.2X18X1.2
€ 4.50
92069
920691007
ref: 92069
BULB,12V3.4W
€ 2.50
92075
25019013
ref: 92075
DAMPER,METER
€ 3.50
92075A
25019023
ref: 92075A
DAMPER RUBBER,METER
€ 2.50
92075B
920751136
ref: 92075B
DAMPER,PILOT BOX
€ 3.00
92075C
920751204
ref: 92075C
DAMPER,PILOT BOX
€ 3.00
92075D
920751498
ref: 92075D
DAMPER,METER
€ 13.00
