CHASSIS ELECTRICAL EQUIPMENT
Z305A3A CSR 1988 EUROPE

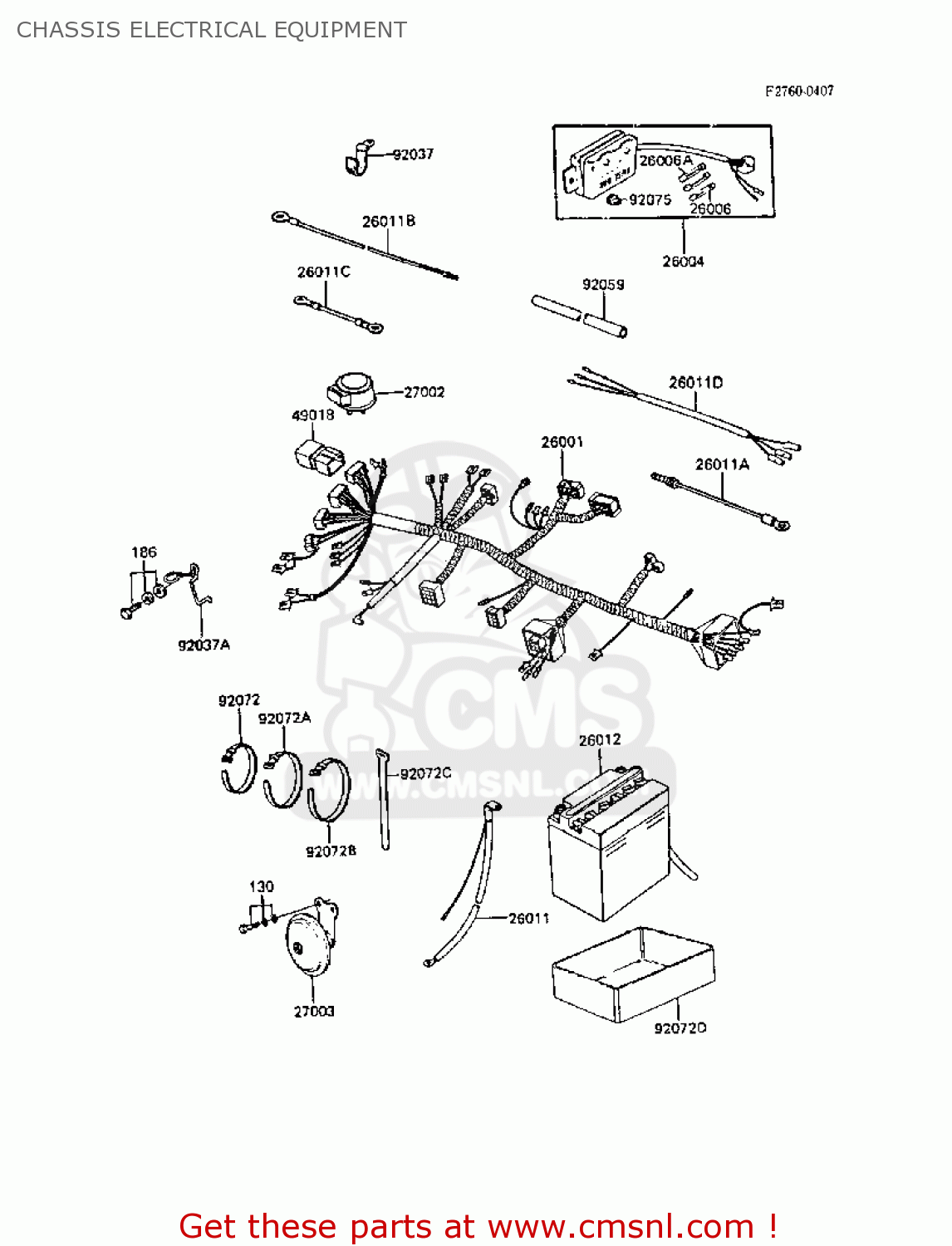

Chassis electrical equipment diagram Z305A3A CSR 1988 EUROPE
CHASSIS ELECTRICAL EQUIPMENT Z305A3A CSR 1988 EUROPE
×
prices are in EUR
ref
part #
description
quantity
130
130D0614
ref: 130
BOLT-FLANGED,6X14
€ 0.50
186
186B0612
ref: 186
BOLT-UPSET-WP
€ 0.50
26001
260011906
ref: 26001
HARNESS,MAIN
€ 157.00
26004
26004035
ref: 26004
FUSE-ASSY
€ 53.50
26006
26006003
ref: 26006
FUSE 10A
€ 3.00
26006A
26006005
ref: 26006A
FUSE 20A
€ 3.50
26011
26010052
ref: 26011
WIRE-LEAD,BATTERY GRO
€ 14.50
26011A
26011063
ref: 26011A
WIRE-LEAD,L=185
€ 5.00
26011B
26011095
ref: 26011B
WIRE-LEAD,L=285
€ 8.00
26011C
260111034
ref: 26011C
WIRE-LEAD,CRANKCASE G
€ 4.50
26011D
260111176
ref: 26011D
WIRE-LEAD,TAIL LAMP
€ 10.50
26012
260121170
ref: 26012
BATTERY,12V 11AH,YB10
€ 75.00
27002
27002011
ref: 27002
RELAY-ASSY,TURN SIGNA
€ 69.50
27003
270031060
ref: 27003
HORN
€ 46.50
49018
490181052
ref: 49018
DIODE
€ 35.50
92037
920371069
ref: 92037
CLAMP,L=60
€ 1.50
92037A
920371379
ref: 92037A
CLAMP
€ 7.00
92059
920591150
ref: 92059
TUBE,8X9X200
€ 3.00
92072
92072030
ref: 92072
BAND,SHORT
€ 3.00
92072A
92072031
ref: 92072A
BAND,MIDDLE
€ 3.00
92072B
92072032
ref: 92072B
BAND,LONG
€ 3.00
92072C
92072067
ref: 92072C
BAND,L=95
€ 2.50
92072D
920721020
ref: 92072D
BAND,BATTERY
€ 7.00
92075
92075279
ref: 92075
DAMPER,FUSE
€ 3.50
