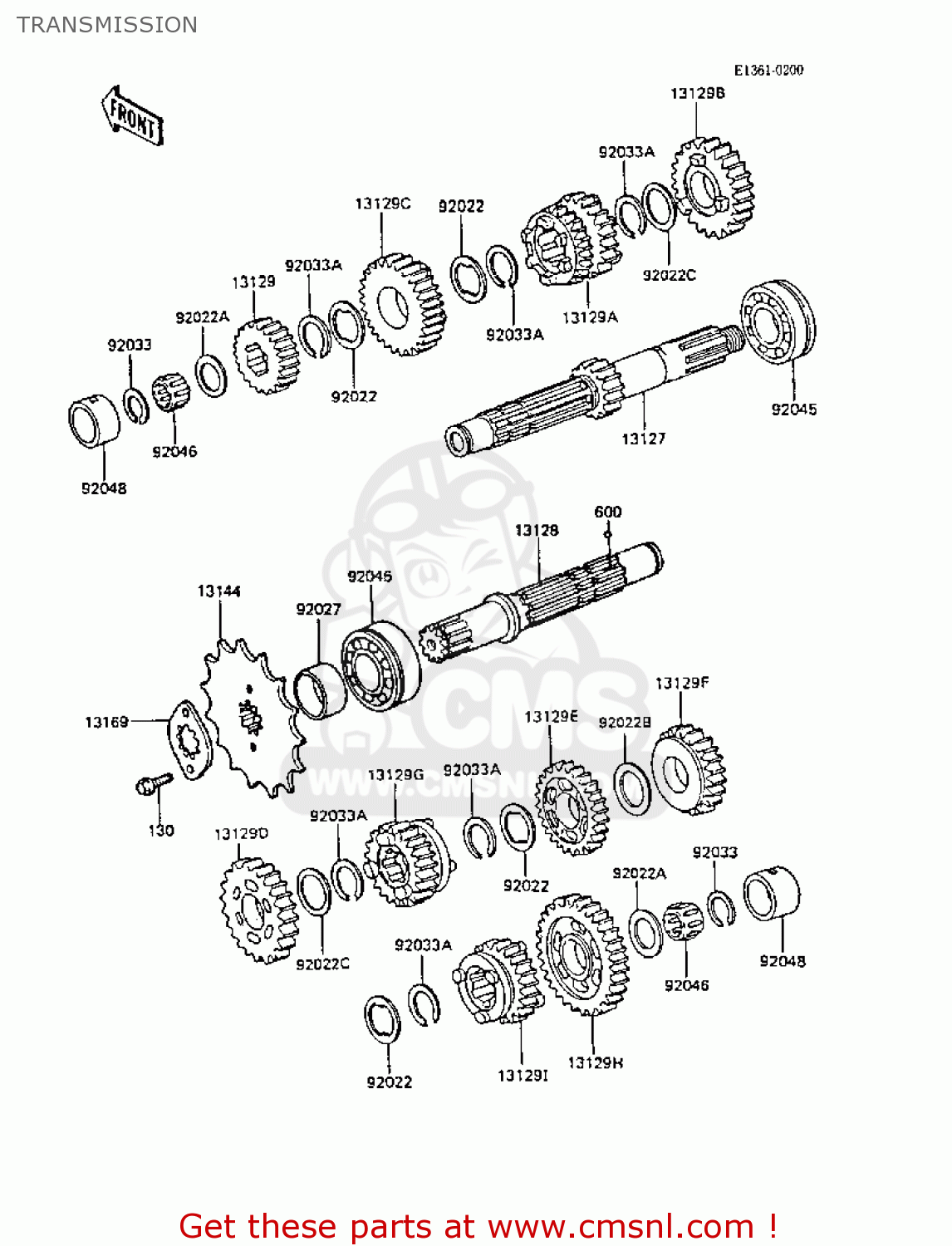

TRANSMISSION

ref

part #

description

quantity

130

130G0612
ref: 130

BOLT,FLANGE,6X12

€ 0.50

600

600A0500
ref: 600

BALL-STEEL,5/32

€ 0.50

13127

131271056
ref: 13127

SHAFT,DRIVE

€ 178.00

13128

131281032
ref: 13128

SHAFT,OUTPUT

€ 48.50

13129

131291086
ref: 13129

GEAR,INPUT 2ND,19T

€ 72.00

13129A

131291087
ref: 13129A

4TH & 3RD GEAR,DRIVE

€ 121.00

13129B

131291088
ref: 13129B

GEAR,INPUT 5TH,27T

€ 88.00

13129C

131291089
ref: 13129C

GEAR,INPUT TOP,28T

€ 57.00

13129D

131291091
ref: 13129D

GEAR,OUTPUT 2ND,34T

€ 113.50

13129E

131291092
ref: 13129E

GEAR,OUTPUT 3RD,31T

€ 88.00

13129F

131291093
ref: 13129F

GEAR,OUTPUT 4TH,29T

€ 82.50

13129G

131291095
ref: 13129G

TOP GEAR,OUTPUT

€ 112.00

13129H

131291254
ref: 13129H

GEAR,OUTPUT LOW,39T

€ 122.50

13129I

131291255
ref: 13129I

5TH GEAR,OUTPUT,27T

€ 100.00

13144

131441046
ref: 13144

SPROCKET-OUTPUT,ENGIN

€ 20.50

13169

131691109
ref: 13169

PLATE,ENGINE SPROCKET

€ 5.50

92022

920221072
ref: 92022

WASHER,TOOTHED,25.3X3

€ 2.00

92022A

92022112
ref: 92022A

WASHER,20.5X30X1,STEE

€ 6.00

92022B

92022145
ref: 92022B

WASHER-CLUTCH THRUST

€ 4.50

92022C

92022159
ref: 92022C

WASHER-THRUST,25MM

€ 5.50

92027

920271322
ref: 92027

COLLAR,ENGINE SPROCKE

€ 8.50

92033

92033015
ref: 92033

CIRCLIP

€ 2.50

92033A

92033026
ref: 92033A

CIRCLIP

€ 6.00

92045

920451013
ref: 92045

BEARING-BALL,#6205NX3

€ 23.00

92046

92046044
ref: 92046

BEARING-NEEDLE,20R251

€ 23.00

92048

920481003
ref: 92048

RACE,NEEDLE BEARING

€ 19.50

all assemblies
