SWINGARM/SHOCK ABSORBER
Z305A3 CSR 1988 EUROPE

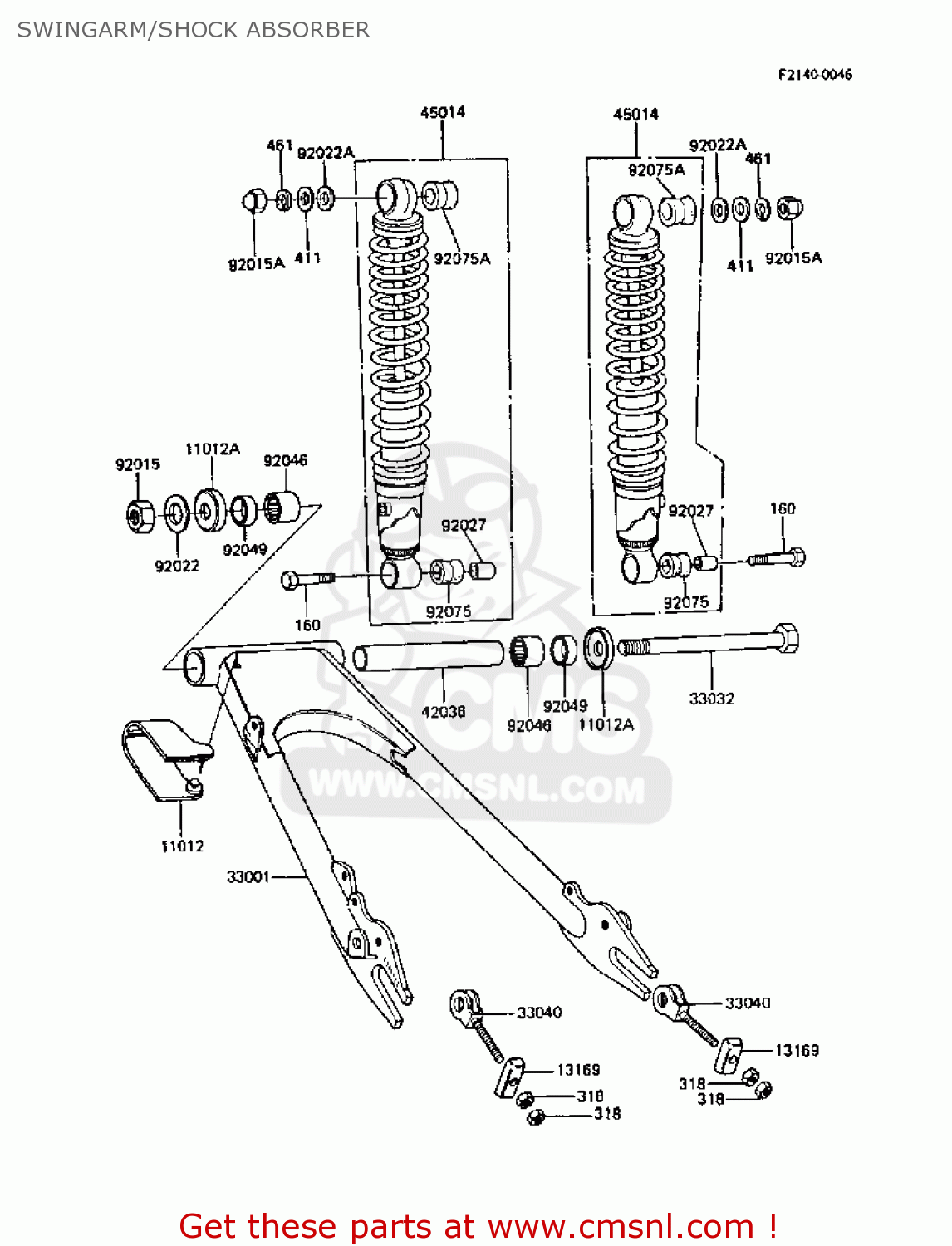

Swingarm/shock absorber diagram Z305A3 CSR 1988 EUROPE
SWINGARM/SHOCK ABSORBER Z305A3 CSR 1988 EUROPE
×
prices are in EUR
ref
part #
description
quantity
160
160N1035
ref: 160
BOLT-FINE-WS
€ 3.50
318
318B0800
ref: 318
NUT,8MM
€ 0.50
411
411B1000
ref: 411
WASHER-PLAIN,10MM
€ 0.50
461
461F1000
ref: 461
WASHER-SPRING,10MM
€ 0.50
11012
110121003
ref: 11012
CAP,CHAIN PROJECTOR
€ 8.00
11012A
110121029
ref: 11012A
CAP,SWING ARM
€ 13.50
13169
33041002
ref: 13169
PLATE,CHAIN ADJUSTER
€ 9.50
33001
330011123
ref: 33001
ARM-COMP-SWING
€ 279.00
33032
330321002
ref: 33032
SHAFT-SWING ARM
€ 38.50
33040
330401016
ref: 33040
ADJUSTER-CHAIN
€ 12.50
42036
420361021
ref: 42036
SLEEVE,SWING ARM,14.1
€ 48.50
45014
450141219
ref: 45014
SHOCKABSORBER,RR
€ 229.50
92015
920151009
ref: 92015
NUT,14MM
€ 6.00
92015A
92020003
ref: 92015A
NUT-SHOCK ABSORBER
€ 4.00
92022
920221067
ref: 92022
WASHER,14.2X30X3.2
€ 2.50
92022A
92022176
ref: 92022A
WASHER,10X22X3.2
€ 3.00
92027
45016008
ref: 92027
BUSHING,SHOCK ABSORB
€ 6.50
92046
92046061
ref: 92046
NEEDLE BEARING
€ 24.00
92049
920491059
ref: 92049
OIL SEAL,MHA22284
€ 7.00
92075
45017012
ref: 92075
BUSHING A,SHOK AB RUB
€ 10.50
92075A
45017015
ref: 92075A
BUSHING,SHCK ABS RUB
€ 6.50
