CYLINDER HEAD
Z305A3 CSR 1988 EUROPE

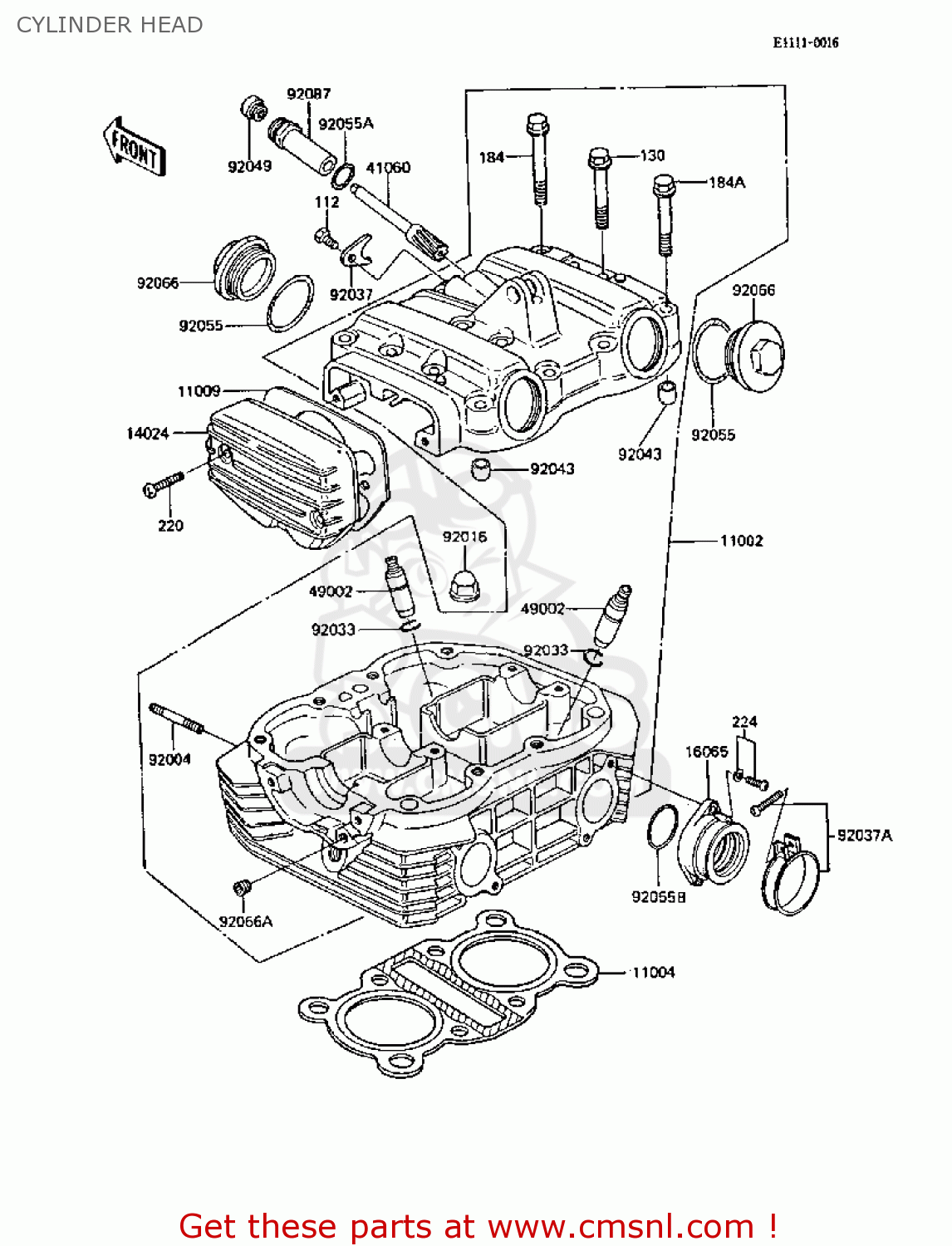

Cylinder head diagram Z305A3 CSR 1988 EUROPE
CYLINDER HEAD Z305A3 CSR 1988 EUROPE
×
prices are in EUR
ref
part #
description
quantity
112
112X0614
ref: 112
BOLT-UPSET
€ 1.50
130
130Y0650
ref: 130
BOLT-FLANGED
€ 3.00
184
184Y0850
ref: 184
BOLT-UPSET-WP-SMALL
€ 3.00
184A
184Y0860
ref: 184A
BOLT-UPSET-WP-SMALL
€ 3.00
220
220X0625
ref: 220
SCREW-PAN-CROS
€ 2.50
224
224X0618
ref: 224
SCREW-PAN-WP-CROS
€ 2.50
11002
110021172
ref: 11002
HEAD-ASSY-CYLINDER
€ 1,081.50
11004
110041036
ref: 11004
GASKET-HEAD (MCA)
€ 24.50
11009
110091067
ref: 11009
GASKET,BREAKER (MCA)
€ 4.00
14024
140251208
ref: 14024
COVER,BREAKER,BARREL
€ 17.50
16065
160651069
ref: 16065
HOLDER-CARBURETOR
€ 30.00
41060
410601020
ref: 41060
GEAR-METER,SCREW
€ 16.00
49002
490021021
ref: 49002
GUIDE-VALVE
€ 25.50
92004
920041128
ref: 92004
STUD,6X30
€ 3.50
92015
920151151
ref: 92015
NUT,CAP,8MM
€ 3.00
92033
92036023
ref: 92033
CIRCLIP,VALVE GUIDE
€ 0.50
92037
920371030
ref: 92037
CLAMP,METER GEAR
€ 2.00
92037A
920371304
ref: 92037A
CLAMP,ID=53,BLACK
€ 7.00
92043
920431265
ref: 92043
PIN,9.2X12X14
€ 4.50
92049
92050075
ref: 92049
OIL SEAL,TACHOMETER
€ 7.50
92055
920551005
ref: 92055
RING-O,35.8X3.0
€ 3.50
92055A
920551021
ref: 92055A
RING-O,13X1.9
€ 4.50
92055B
920551155
ref: 92055B
RING-O,33.2MM
€ 10.00
92066
920661006
ref: 92066
PLUG,36X7.5
€ 10.50
92066A
920661173
ref: 92066A
PLUG,PT1/8X7
€ 3.50
92087
920871001
ref: 92087
BUSHING-METER GEAR
€ 18.00
