FRAME FITTINGS
Z305A3 CSR 1988 EUROPE

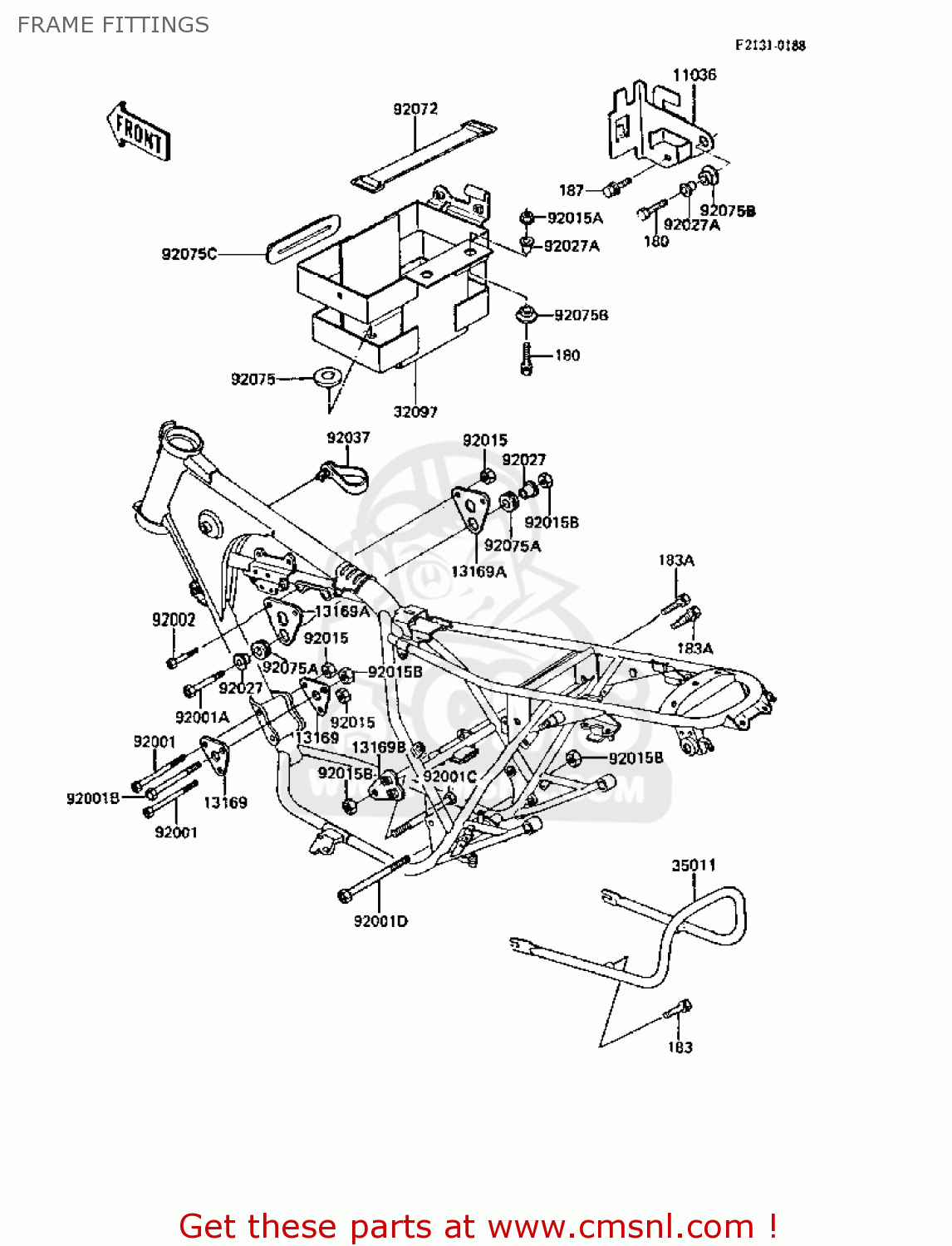

Frame fittings diagram Z305A3 CSR 1988 EUROPE
FRAME FITTINGS Z305A3 CSR 1988 EUROPE
×
prices are in EUR
ref
part #
description
quantity
180
180B0622
ref: 180
BOLT-UPSET-WS
€ 2.50
183
183B0816
ref: 183
BOLT-UPSET-WS-SMALL
€ 0.50
183A
183G0820
ref: 183A
BOLT-UPSET-WS-SMALL
€ 1.50
187
187B0612
ref: 187
BOLT-UPSET-WSP
€ 0.50
11036
110361050
ref: 11036
BRACKET-A,ELECTRO BAS
€ 10.50
13169
131691111
ref: 13169
PLATE,ENGINE,FRONT
€ 6.00
13169A
131691112
ref: 13169A
PLATE,ENGINE,HEAD
€ 5.50
13169B
131691113
ref: 13169B
PLATE,ENGINE,REAR-UPP
€ 6.50
32097
320971053
ref: 32097
CASE-BATTERY
€ 54.50
35011
350111120
ref: 35011
STAY,RR
€ 79.00
92001
920011597
ref: 92001
BOLT,FLANGED,8X110
€ 3.50
92001A
920011600
ref: 92001A
BOLT,FLANGED, 10X70
€ 7.00
92001B
920011602
ref: 92001B
BOLT,FLANGED,10X110
€ 7.50
92001C
920011604
ref: 92001C
BOLT,FLANGED,10X130
€ 6.00
92001D
920011605
ref: 92001D
BOLT,FLANGED,10X145
€ 9.00
92002
920021182
ref: 92002
BOLT,8X50
€ 6.00
92015
920151124
ref: 92015
NUT,LOCK,8MM
€ 3.50
92015A
920151193
ref: 92015A
NUT,FLANGED,6MM
€ 0.50
92015B
920151429
ref: 92015B
NUT,10MM
€ 4.50
92027
920271116
ref: 92027
COLLAR,L=16.3
€ 6.00
92027A
92027194
ref: 92027A
COLLAR
€ 3.50
92037
920371290
ref: 92037
CLAMP,CARBURETOR
€ 4.50
92072
92072006
ref: 92072
BAND,L=142.1
€ 8.00
92075
92075078
ref: 92075
DAMPER,RUBBER
€ 2.50
92075A
920751086
ref: 92075A
DAMPER
€ 3.50
92075B
92075277
ref: 92075B
DAMPER
€ 1.00
92075C
92075280
ref: 92075C
DAMPER
€ 3.00
