CAMSHAFT(S)/TENSIONER
Z305A3 CSR 1988 EUROPE

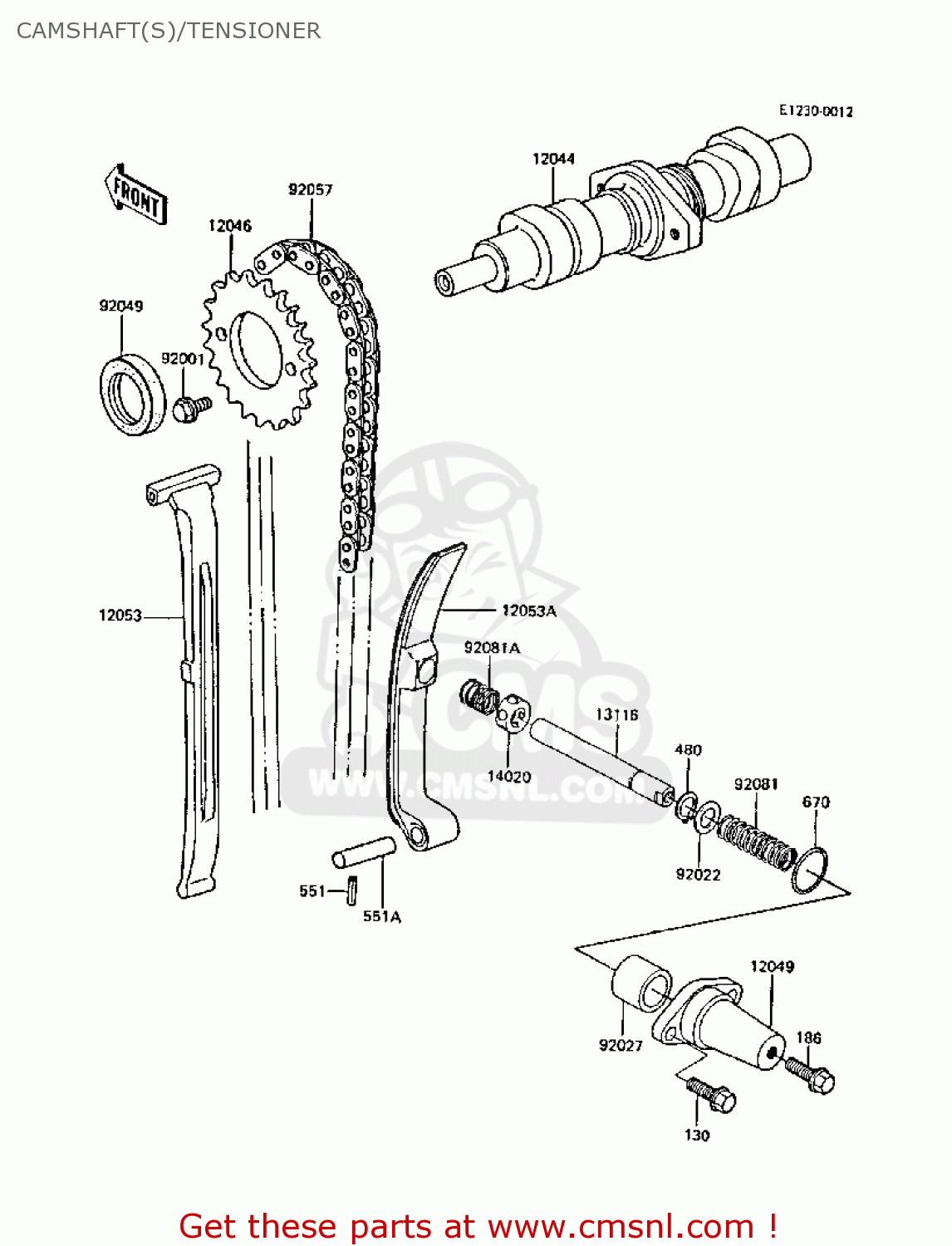

Camshaft(s)/tensioner diagram Z305A3 CSR 1988 EUROPE
CAMSHAFT(S)/TENSIONER Z305A3 CSR 1988 EUROPE
×
prices are in EUR
ref
part #
description
quantity
130
130Y0620
ref: 130
BOLT-FLANGED
€ 2.50
186
186X0614
ref: 186
BOLT-UPSET-WP
€ 2.00
480
480J1000
ref: 480
CIRCLIP-TYPE-C,10MM
€ 0.50
551
551A0316
ref: 551
PIN-DOWEL,3X16
€ 2.00
551A
551A0840
ref: 551A
PIN-DOWEL,8X40
€ 3.00
670
670B2021
ref: 670
O RING,21MM
€ 3.00
12044
120441002
ref: 12044
CAMSHAFT-VALVE
€ 183.50
12046
120461008
ref: 12046
SPROCKET,CAM,30T
€ 30.50
12049
120491010
ref: 12049
BRACKET,TENSIONER
€ 16.00
12053
120531020
ref: 12053
GUIDE-CHAIN,CAM
€ 24.00
12053A
120531050
ref: 12053A
GUIDE-CHAIN,REAR
€ 29.00
13116
131161022
ref: 13116
ROD-PUSH,TENSIONER
€ 11.50
14020
140201002
ref: 14020
RETAINER,TENSIONER
€ 10.50
92001
92003208
ref: 92001
BOLT,SPROCKET FITTING
€ 2.50
92022
920221181
ref: 92022
WASHER,10.2X14.5X1.0
€ 2.50
92027
920271240
ref: 92027
COLLAR,TENSIONER
€ 10.00
92049
92050065
ref: 92049
OIL SEAL,R.H CRNKSFT
€ 14.00
92057
920571015
ref: 92057
CHAIN,CAM
€ 20.00
92081
920811206
ref: 92081
SPRING,TENSIONER
€ 3.00
92081A
920811207
ref: 92081A
SPRING,TENSIONER
€ 2.50
