TAILLIGHT(S)
Z305A3 CSR 1988 EUROPE

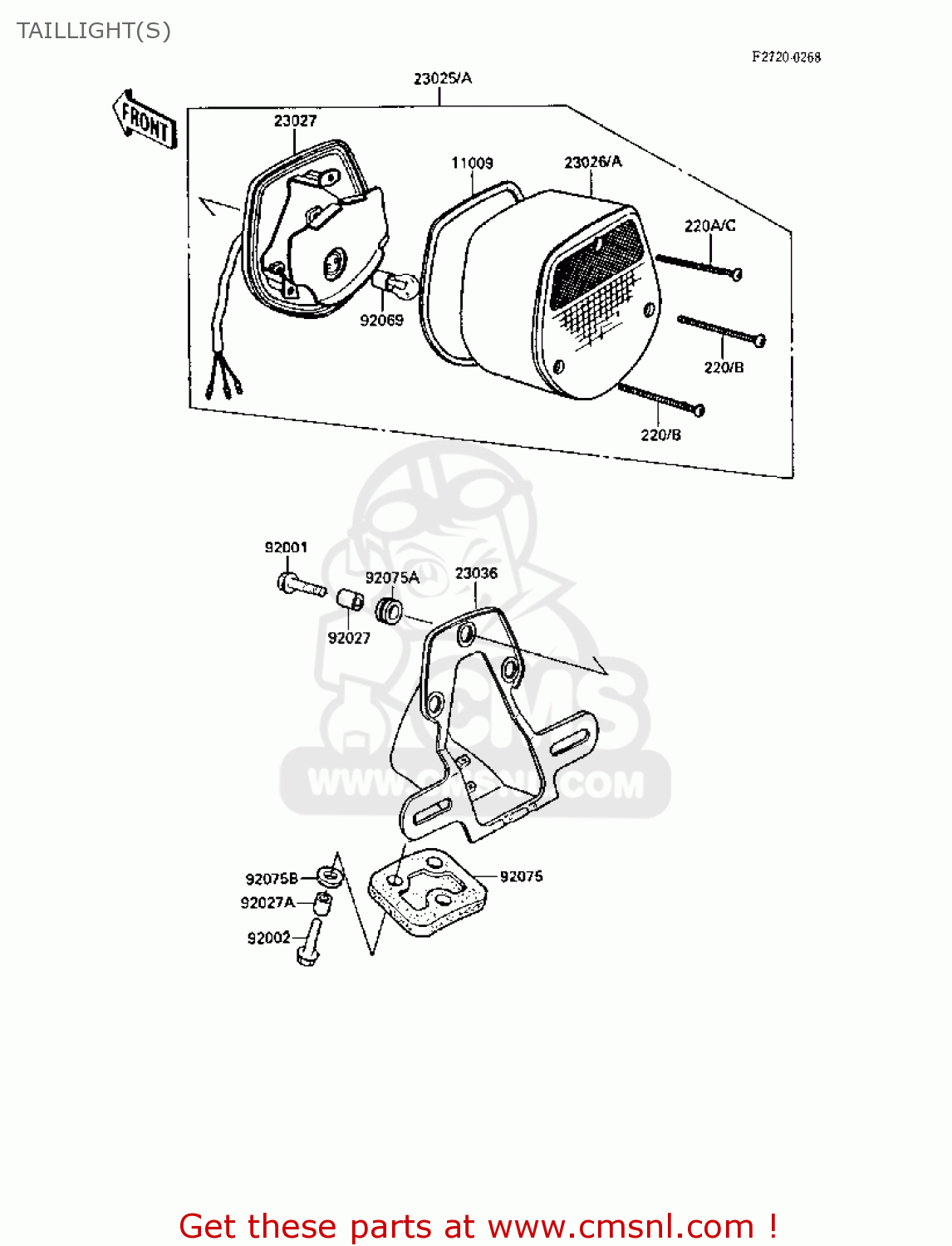

Taillight(s) diagram Z305A3 CSR 1988 EUROPE
TAILLIGHT(S) Z305A3 CSR 1988 EUROPE
×
prices are in EUR
ref
part #
description
quantity
220
220B0450
ref: 220
SCREW-PAN-CROS
€ 2.00
220A
220B0455
ref: 220A
SCREW-PAN-CROS
€ 0.50
11009
23028019
ref: 11009
GASKET,TAIL LAMP LENS (NAS)
€ 5.50
23025
23025062
ref: 23025
LAMP,TAIL
€ 99.00
23026A
230261001
ref: 23026A
LENS,TAIL LAMP,W/REFL
€ 41.50
23027
23027040
ref: 23027
BODY-COMP-TAIL LAMP
€ 68.00
23036
230361043
ref: 23036
BRACKET-TAIL LAMP
€ 86.50
92001
920011773
ref: 92001
BOLT,6X20
€ 2.50
92002
920021137
ref: 92002
BOLT,6X25
€ 2.50
92027
92027129
ref: 92027
COLLAR,6.8X10X8.5
€ 3.00
92027A
92027156
ref: 92027A
COLLAR-BATTERY CASE
€ 3.00
92069
92069063
ref: 92069
BULB 12V 21/5W
€ 4.50
92075
35039004
ref: 92075
DAMPER,TAIL LAMP
€ 12.00
92075A
92075076
ref: 92075A
DAMPER
€ 3.00
92075B
92075121
ref: 92075B
DAMPER,FENDER
€ 2.50
