HEADLIGHT(S)
Z305A3 CSR 1988 EUROPE

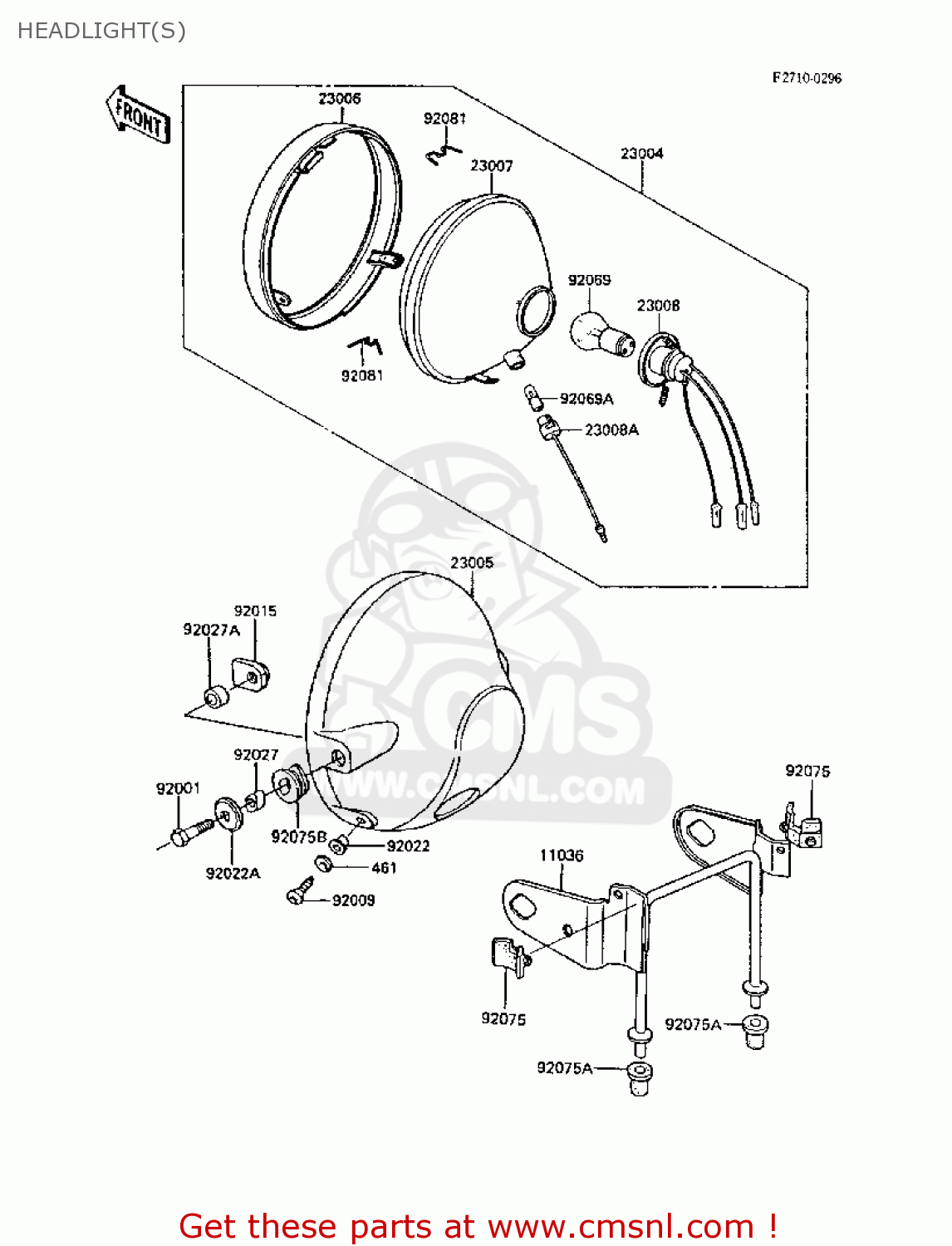

Headlight(s) diagram Z305A3 CSR 1988 EUROPE
HEADLIGHT(S) Z305A3 CSR 1988 EUROPE
×
prices are in EUR
ref
part #
description
quantity
461
461F0500
ref: 461
WASHER-SPRING,5MM
€ 0.50
11036
110361060
ref: 11036
BRACKET-A,HEAD LAMP,C
€ 62.00
23004
23004064
ref: 23004
LAMP-HEAD
€ 334.00
23005
2300504721
ref: 23005
BODY-COMP-HEAD LAMP,F
€ 85.50
23006
23006048
ref: 23006
RIM-LAMP
€ 48.00
23007
23007064
ref: 23007
LENS-COMP,001-0781MAR
€ 66.50
23008
23008035
ref: 23008
SOCKET-ASSY,HEAD LAMP
€ 24.50
23008A
23008036
ref: 23008A
SOCKET-ASSY,PARKING L
€ 12.00
92001
92007024
ref: 92001
BOLT,10MM
€ 4.50
92009
92011024
ref: 92009
SCREW-PAN HEAD,5MM
€ 2.00
92015
23020021
ref: 92015
NUT,10MM
€ 4.00
92022
23021010
ref: 92022
WASHER
€ 2.50
92022A
92022289
ref: 92022A
WASHER,PLAIN
€ 11.50
92027
920271129
ref: 92027
COLLAR,HEAD LAMP
€ 4.00
92027A
92027231
ref: 92027A
COLLAR,10.2X13.4X8.1
€ 4.50
92069
ref: 92069
92069A
92069071
ref: 92069A
BULB,12V 4W
€ 4.50
92075
920751106
ref: 92075
DAMPER,BRACKET
€ 3.00
92075A
920751107
ref: 92075A
DAMPER,BRACKET
€ 3.50
92075B
92075128
ref: 92075B
DAMPER,LAMP
€ 3.50
92081
23009013
ref: 92081
CLAMP-HEAD LAMP LENS
€ 3.50
