IGNITION SYSTEM
Z305A3 CSR 1988 EUROPE

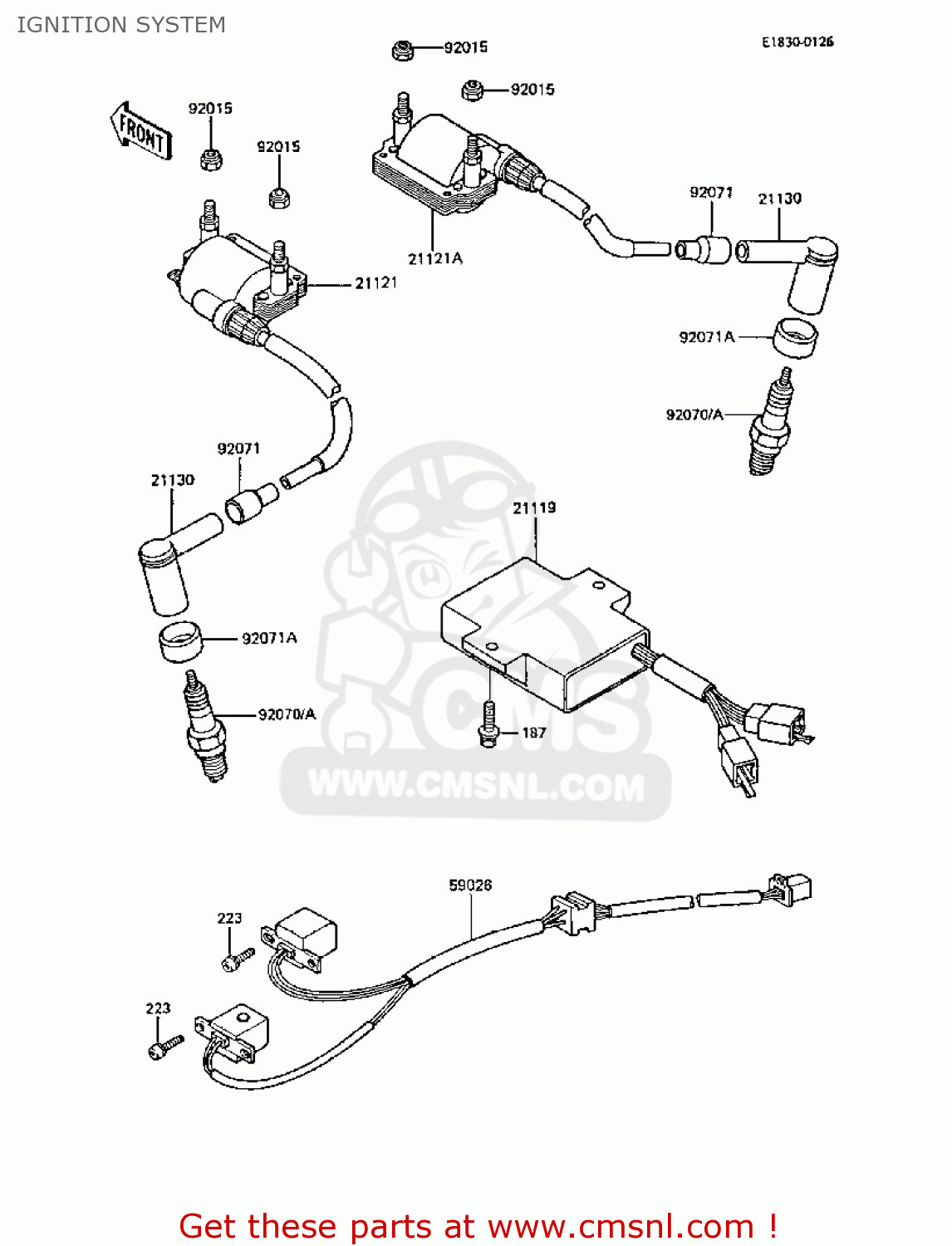

Ignition system diagram Z305A3 CSR 1988 EUROPE
IGNITION SYSTEM Z305A3 CSR 1988 EUROPE
×
prices are in EUR
ref
part #
description
quantity
187
187B0616
ref: 187
BOLT-UPSET-WSP
€ 0.50
223
223B0514
ref: 223
SCREW-PAN-WS-CROS
€ 1.50
21119
211191227
ref: 21119
IGNITER
€ 244.50
21121
211211071
ref: 21121
COIL-IGNITION,LH
€ 89.00
21121A
211211072
ref: 21121A
COIL-IGNITION,RH
€ 97.50
21130
211301003
ref: 21130
CAP,SPARK PLUG"LD05F"
€ 20.00
59026
590261021
ref: 59026
COIL-PULSING
€ 75.50
92015
920151193
ref: 92015
NUT,FLANGED,6MM
€ 0.50
92070
920701019
ref: 92070
DR8ES (NGK SPARKPLUG)
€ 4.00
92070A
ref: 92070A
92071
21132005
ref: 92071
GROMMET,SPARK PLUG CP
€ 2.50
92071A
920711015
ref: 92071A
GROMMET,SPARK PLUG CA
€ 2.50
