SWINGARM

VN1600A3 VULCAN 1600 CLASSIC 2005 USA CALIFORNIA CANADA

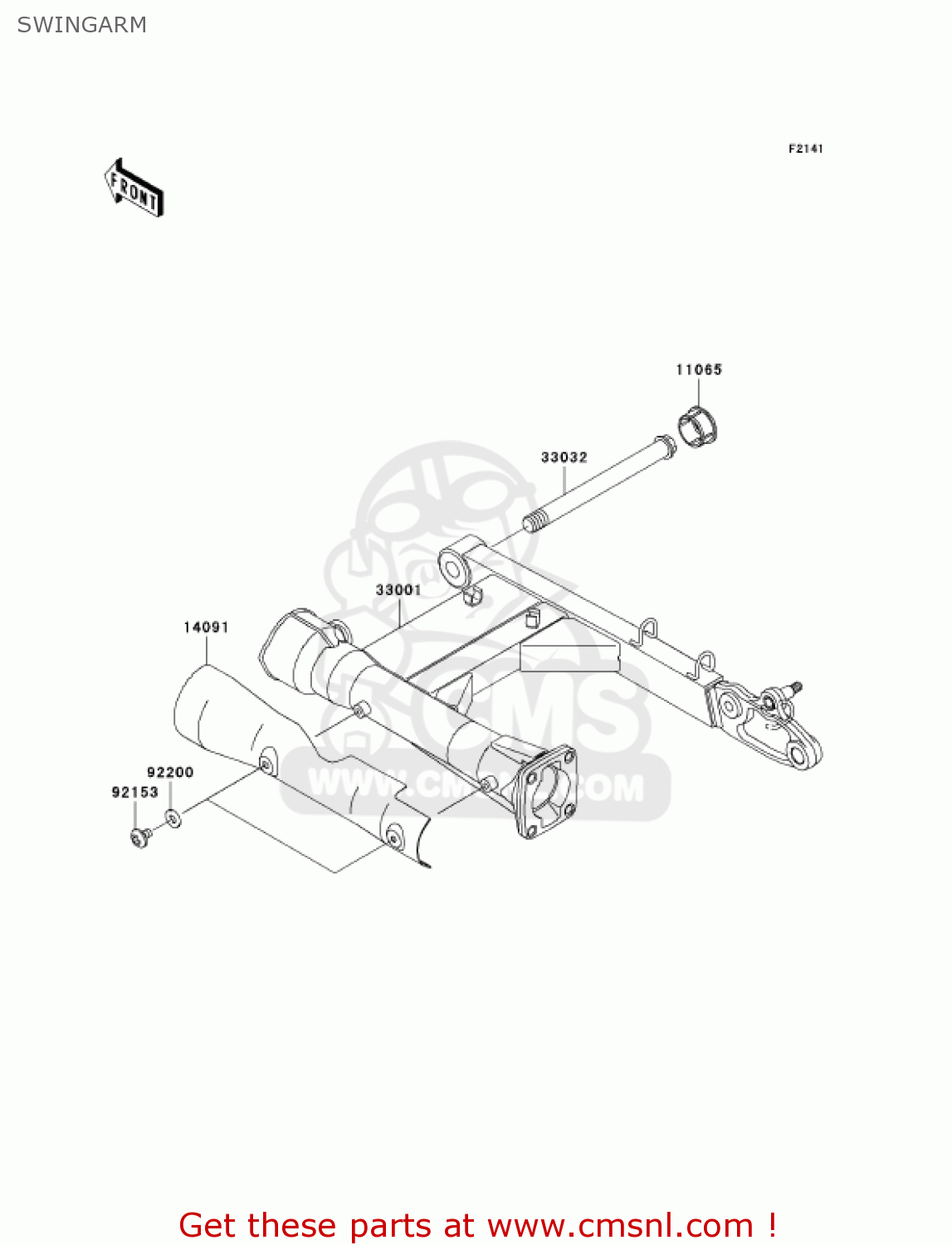

Swingarm diagram VN1600A3 VULCAN 1600 CLASSIC 2005 USA CALIFORNIA CANADA

SWINGARM VN1600A3 VULCAN 1600 CLASSIC 2005 USA CALIFORNIA CANADA
SWINGARM VN1600A3 VULCAN 1600 CLASSIC 2005 USA CALIFORNIA CANADA
SWINGARM VN1600A3 VULCAN 1600 CLASSIC 2005 USA CALIFORNIA CANADA
prices are in EUR
ref
part #
description
quantity
11065
110651259
ref: 11065
CAP,SWING ARM
110651259
€ 3.50
14091
140910060
ref: 14091
COVER,SWING ARM
€ 29.50
33001
330011642
ref: 33001
ARM-COMP-SWING
€ 910.00
33032
330321181
ref: 33032
SHAFT-SWING ARM
€ 47.50
92153
921530411
ref: 92153
BOLT,SOCKET,6X10
921530411
€ 2.00
92200
922003775
ref: 92200
WASHER,6.5X14.5X1.5
922003775
€ 1.50
