Genuine VN Kawasaki Parts delivered quickly!


FRONT FORK (-JKBVNKA1 5A015115)

VN1600A3 VULCAN 1600 CLASSIC 2005 USA CALIFORNIA CANADA

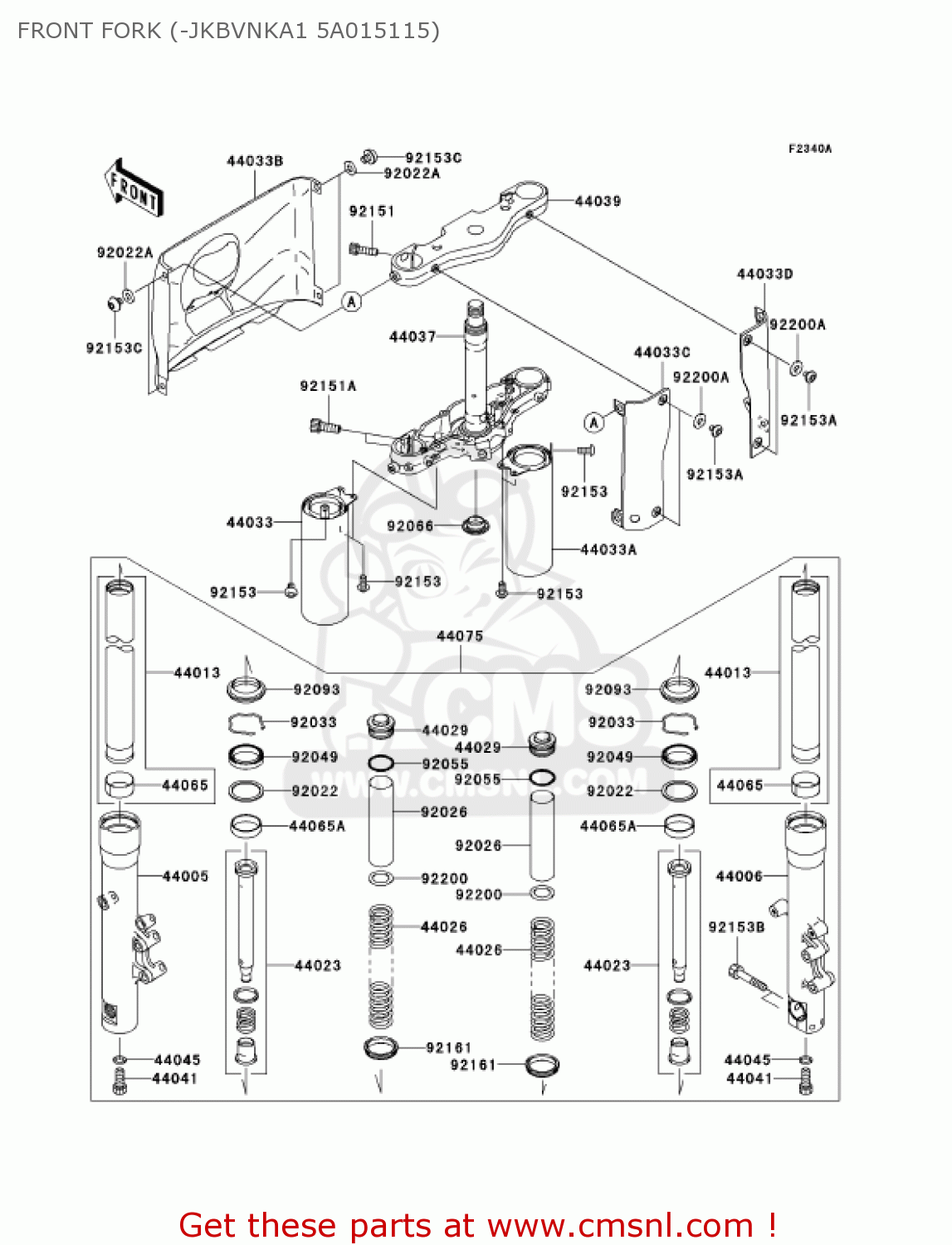

Front fork (-jkbvnka1 5a015115) diagram VN1600A3 VULCAN 1600 CLASSIC 2005 USA CALIFORNIA CANADA

FRONT FORK (-JKBVNKA1 5A015115) VN1600A3 VULCAN 1600 CLASSIC 2005 USA CALIFORNIA CANADA
FRONT FORK (-JKBVNKA1 5A015115) VN1600A3 VULCAN 1600 CLASSIC 2005 USA CALIFORNIA CANADA
FRONT FORK (-JKBVNKA1 5A015115) VN1600A3 VULCAN 1600 CLASSIC 2005 USA CALIFORNIA CANADA
prices are in EUR
ref
part #
description
quantity
44005
440051436
ref: 44005
PIPE-LEFT FORK OUTER
€ 340.50
44006
440060006
ref: 44006
PIPE-RIGHT FORK OUTER
€ 425.50
44013
440130002
ref: 44013
PIPE-FORK INNER
€ 286.00
44023
440230004
ref: 44023
CYLINDER-SET-FORK
440230004
€ 119.00
44026
440260014
ref: 44026
SPRING-FRONT FORK
€ 79.00
44029
440291154
ref: 44029
SEAT-FORK SPRING
440291154
€ 35.50
44033
440330011
ref: 44033
COVER-FORK,INNER,LH
440330011
€ 49.00
44033A
440330012
ref: 44033A
COVER-FORK,INNER,RH
€ 47.00
44033B
440330013
ref: 44033B
COVER-FORK,CNT
€ 87.00
44033C
440330014
ref: 44033C
COVER-FORK,RR,LH
€ 76.50
44033D
440330016
ref: 44033D
COVER-FORK,RR,RH
€ 76.50
44037
440370004
ref: 44037
HOLDER-FORK UNDER
€ 391.00
44039
440390004
ref: 44039
HOLDER-FORK UPPER
€ 309.00
44041
44041040
ref: 44041
BOLT-FORK CYLINDER
44041040
€ 4.50
44045
44045057
ref: 44045
GASKET (NAS)
44045057
€ 3.00
44065
440650003
ref: 44065
BUSHING-FRONT FORK
440650003
€ 18.50
44065A
440651143
ref: 44065A
BUSHING-FRONT FORK
440651143
€ 13.50
44075
440751188
ref: 44075
DAMPER-SET-FORK
€ 1,886.00
92022
920221299
ref: 92022
WASHER
920221299
€ 5.50
92022A
920223743
ref: 92022A
WASHER,8.2X18X1.5
920223743
€ 3.00
92026
920260002
ref: 92026
SPACER
€ 20.00
92033
920331077
ref: 92033
RING-SNAP
920331077
€ 3.00
92049
920490007
ref: 92049
SEAL-OIL
920490007
€ 17.50
92055
920551123
ref: 92055
RING-O
920551123
€ 4.00
92066
920660032
ref: 92066
PLUG
920660032
€ 8.50
92093
920931480
ref: 92093
SEAL,FORK OUTER TUBE
920931480
€ 13.00
92151
921511270
ref: 92151
BOLT
921511270
€ 2.50
92151A
921511358
ref: 92151A
BOLT,SOCKET,10X25
€ 2.50
92153
921530300
ref: 92153
BOLT
921530300
€ 2.00
92153A
921530410
ref: 92153A
BOLT,SOCKET,6X10
921530410
€ 2.00
92153B
921530425
ref: 92153B
BOLT
€ 6.00
92153C
921531278
ref: 92153C
BOLT,SOCKET,8X10
921531278
€ 4.00
92161
921611343
ref: 92161
DAMPER
€ 2.50
92200
922001253
ref: 92200
WASHER
922001253
€ 4.50
92200A
922003775
ref: 92200A
WASHER,6.5X14.5X1.5
922003775
€ 1.50
