SEAT (JKBVNKA1 5A014811-)

VN1600A3 VULCAN 1600 CLASSIC 2005 USA CALIFORNIA CANADA

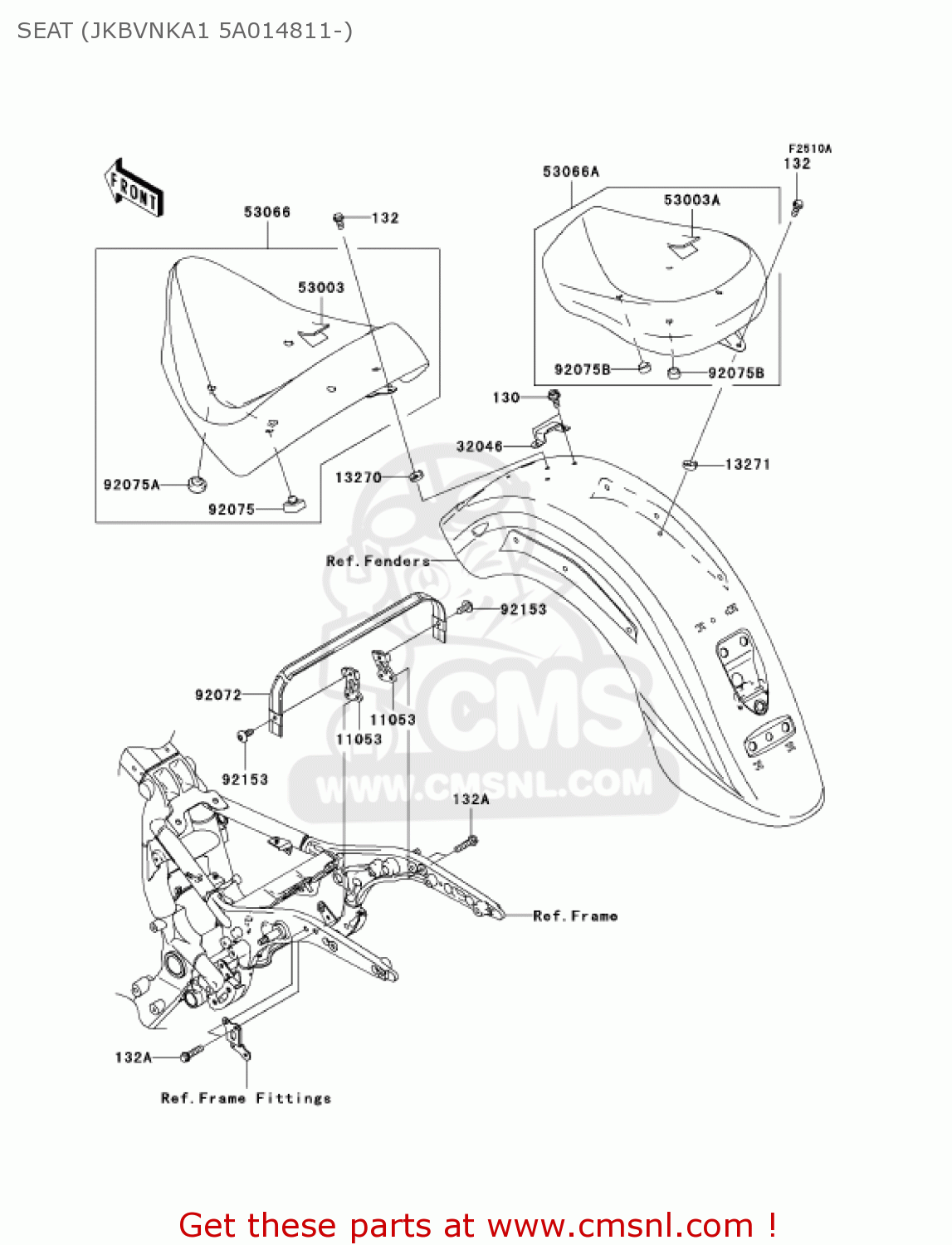

Seat (jkbvnka1 5a014811-) diagram VN1600A3 VULCAN 1600 CLASSIC 2005 USA CALIFORNIA CANADA

prices are in EUR

ref

part #

description

quantity

130

130J0614
ref: 130

BOLT-FLANGED,6X14,BLA

€ 1.50

132

132J0614
ref: 132

BOLT-FLANGED-SMALL

€ 1.50

132A

132J0625
ref: 132A

BOLT-FLANGED-SMALL

€ 2.50

11053

110530280
ref: 11053

BRACKET,SEAT BAND

€ 8.50

13270

132701484
ref: 13270

PLATE,RR SEAT,FR

€ 5.00

13271

132710558
ref: 13271

PLATE,RR SEAT,RR

€ 3.50

32046

320461537
ref: 32046

BRACKET-SEAT

€ 4.00

53003

530031531MA
ref: 53003

LEATHER,FRONT SEAT,BL

€ 196.50

53003A

530031532MA
ref: 53003A

LEATHER,REAR SEAT,BLA

€ 159.50

53066

530660020MA
ref: 53066

SEAT-ASSY,FR,BLACK

€ 527.50

53066A

530660089MA
ref: 53066A

SEAT-ASSY,RR,BLACK

€ 394.00

92072

920720020
ref: 92072

BAND,SEAT

€ 22.50

92075

92075099
ref: 92075

DAMPER RUBBER

€ 3.50

92075A

920751045
ref: 92075A

DAMPER,STAND STOPPER

€ 5.00

92075B

920751927
ref: 92075B

DAMPER,10X20X8

€ 3.00

92153

921530374
ref: 92153

BOLT,SOCKET,6X16

€ 2.00
