STAND(S)(A3)

VN1600A3 VULCAN 1600 CLASSIC 2005 USA CALIFORNIA CANADA

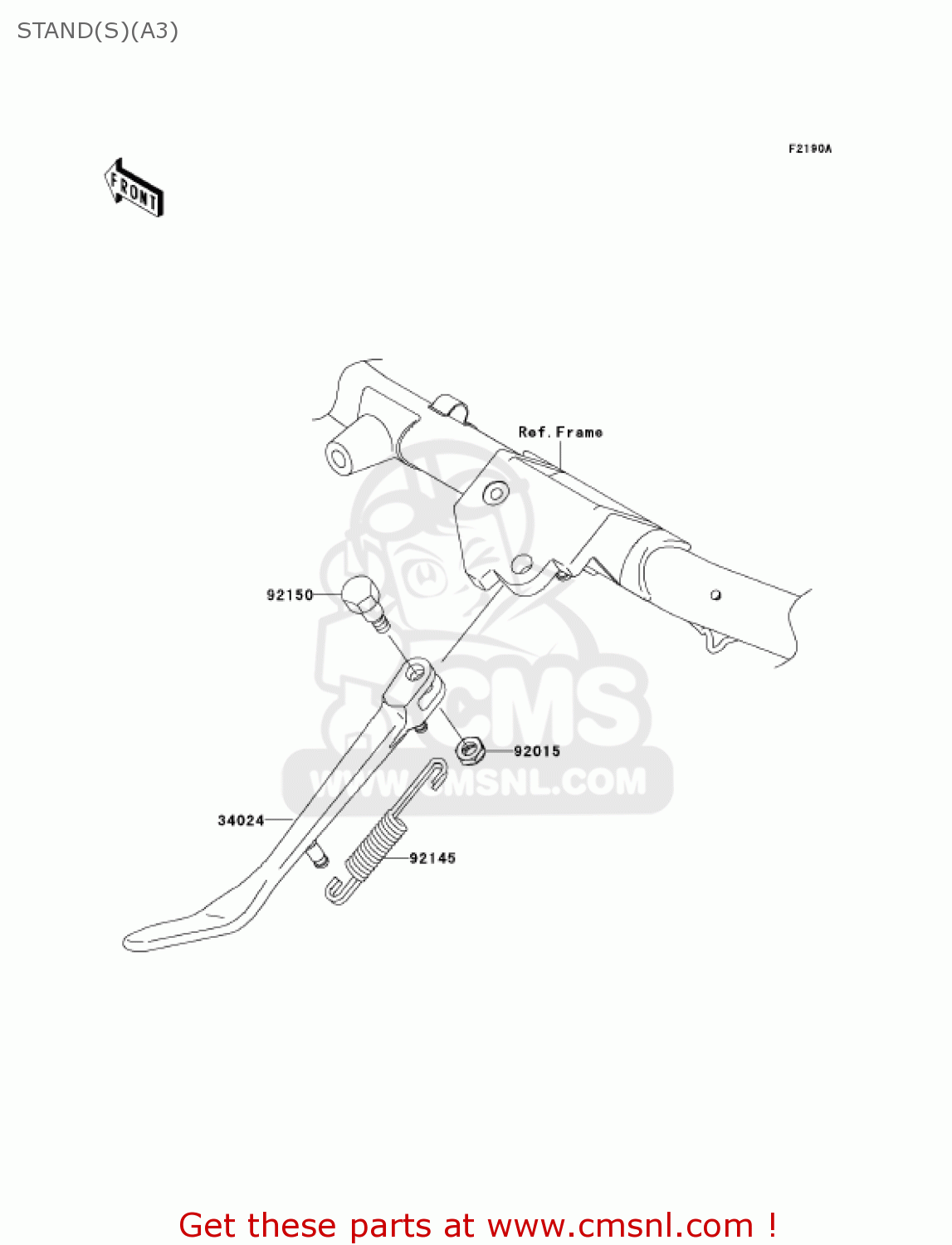

Stand(s)(a3) diagram VN1600A3 VULCAN 1600 CLASSIC 2005 USA CALIFORNIA CANADA

STAND(S)(A3) VN1600A3 VULCAN 1600 CLASSIC 2005 USA CALIFORNIA CANADA

STAND(S)(A3) VN1600A3 VULCAN 1600 CLASSIC 2005 USA CALIFORNIA CANADA

prices are in EUR

ref

part #

description

quantity

34024

340240014
ref: 34024

STAND-SIDE

€ 101.00

92015

920151188
ref: 92015

NUT,LOCK,10MM,BLACK

€ 4.00

92145

921450083
ref: 92145

SPRING,SIDE STAND

€ 15.50

92150

921501941
ref: 92150

BOLT,SIDE STAND

€ 4.00
