FUEL INJECTION

VN1600A3 VULCAN 1600 CLASSIC 2005 USA CALIFORNIA CANADA

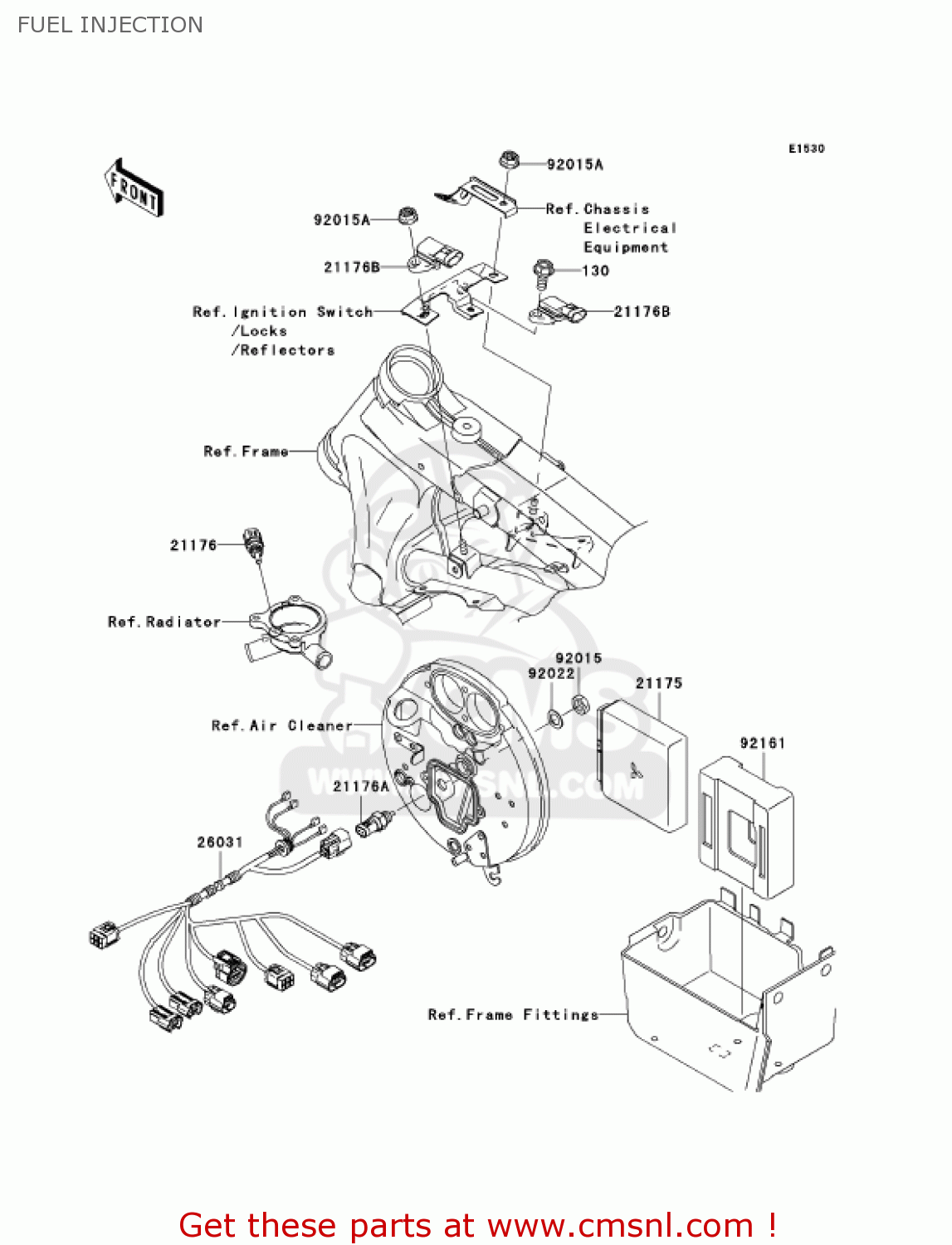

Fuel injection diagram VN1600A3 VULCAN 1600 CLASSIC 2005 USA CALIFORNIA CANADA

prices are in EUR

ref

part #

description

quantity

130

130L0614
ref: 130

BOLT-FLANGED

€ 1.50

21175

211751099
ref: 21175

CONTROL UNIT-ELECTRON

€ 1,153.50

21176

211761085
ref: 21176

SENSOR,WATER TEMPERAT

€ 52.50

21176A

211761086
ref: 21176A

SENSOR,AIR TEMPERATUR

€ 49.00

21176B

211761118
ref: 21176B

SENSOR IAPS

€ 123.50

26031

260310069
ref: 26031

HARNESS

€ 138.00

92015

920151395
ref: 92015

NUT,12MM

€ 3.00

92015A

920151603
ref: 92015A

NUT

€ 3.00

92022

92022269
ref: 92022

WASHER,PLAIN

€ 1.00

92161

921611210
ref: 92161

DAMPER

€ 18.00
